Navigation system - component location

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Instrument panel › Navigation system - component location

Wiring diagrams and electrical functionsNavigation system - component location

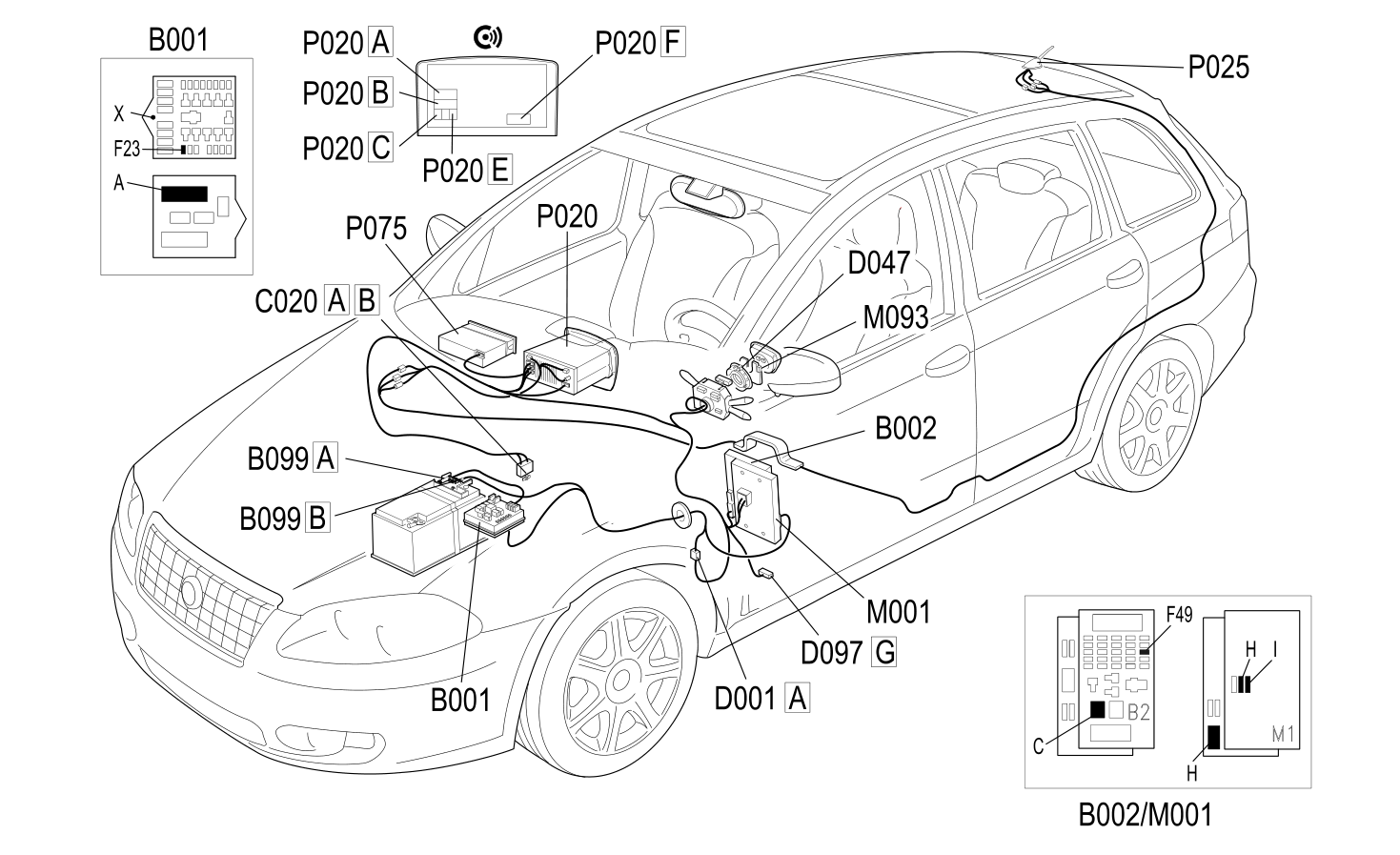

NAVIGATION SYSTEM - COMPONENT LOCATION

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D047	CLOCK SPRING COUPLING
D097	SHORT CIRCUIT COUPLING
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M093	STEERING WHEEL NODE CONTROL UNIT (NVO)	Op. 5505A MULTI-FUNCTION COMPONENTS
P020	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
P025	AERIAL FEED/AMPLIFIER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P075	CD CHANGER MODULE	Op. 5570T CAR RADIO AND CAR TELEPHONE
