Fiat Ducato Factory Service Manual (2002-2006)20 · Wiring diagrams and electrical functions
20 · Electrical

Headlamp washer wiring diagram

Make
Fiat
Model
Ducato Factory Service Manual
Year
2002–2006
Section
Electrically activated devices › Headlamp washer wiring diagram
Wiring diagrams and electrical functionsHeadlamp washer wiring diagram

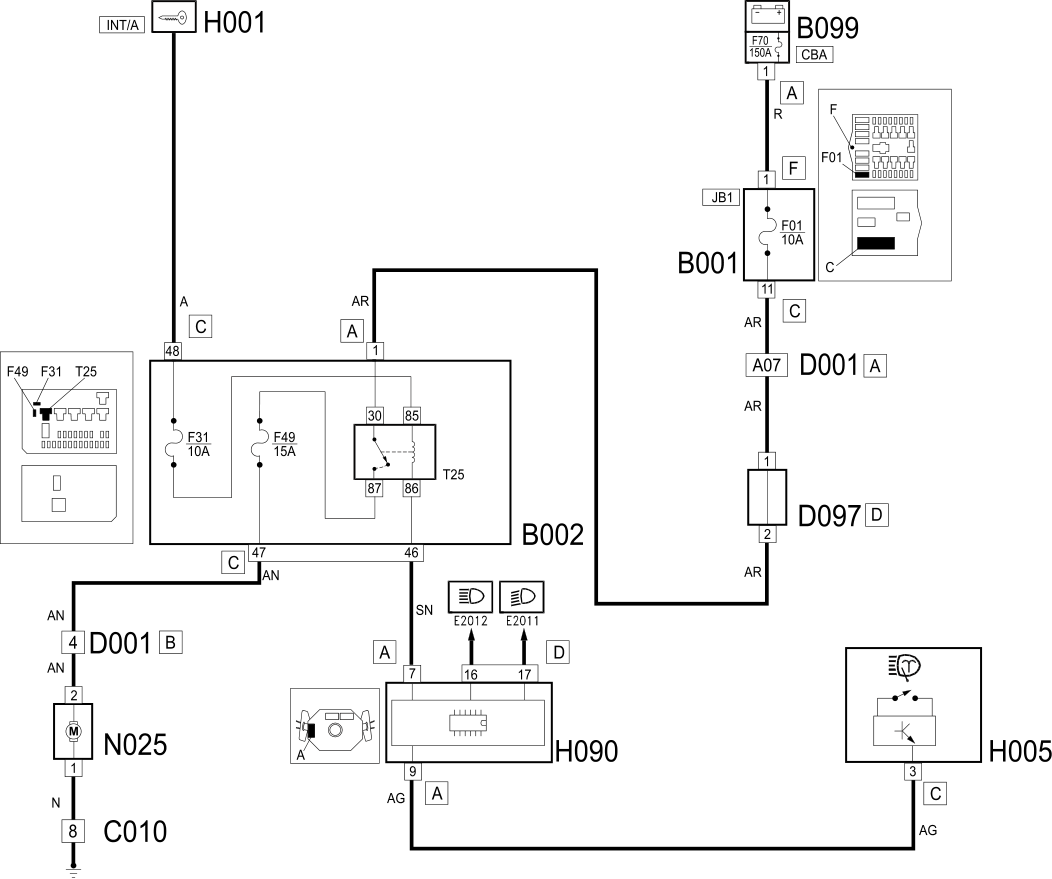

HEADLAMP WASHER WIRING DIAGRAM

HEADLAMP WASHER WIRING DIAGRAM

Components

Component codeDescriptionReference to the assembly
B001JUNCTION UNIT
B002JUNCTION UNIT UNDER DASHBOARD
B099MAXI FUSE BOX ON BATTERY
C010LEFT FRONT EARTH
D001FRONT/DASHBOARD COUPLING
D097SHORT CIRCUITING COUPLING
H005STEERING COLUMN SWITCH UNIT
H090SWITCH CONTROL PANEL
N025HEADLAMP WASHER PUMP MOTOR
