Code - wiring diagram

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Vehicle electronic systems › Code - wiring diagram

Wiring diagrams and electrical functionsCode - wiring diagram

CODE - WIRING DIAGRAM

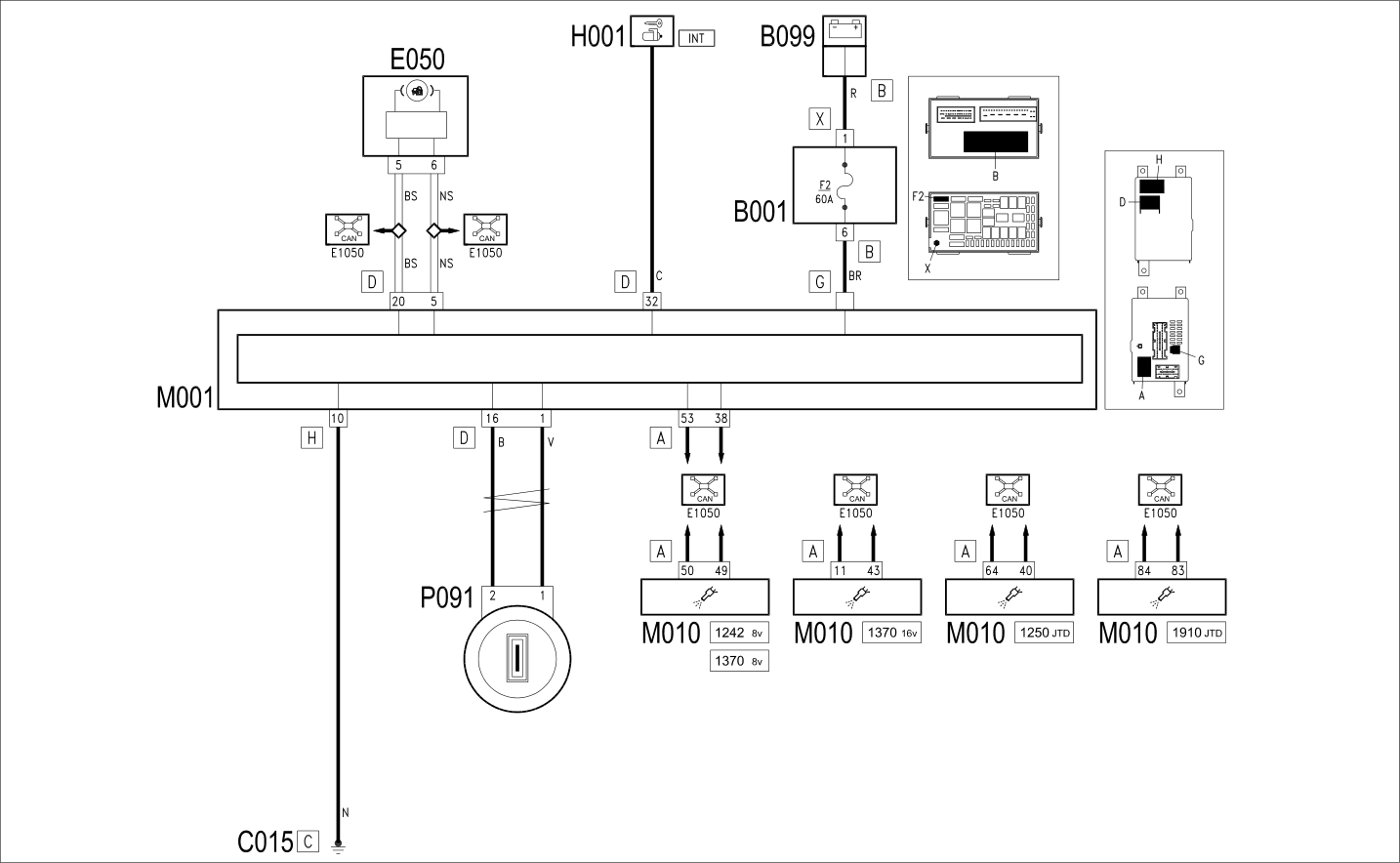

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M010	ENGINE MANAGEMENT ECU	Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R Op. 1060G80 DIESEL ELECTRONIC INJECTION CONTROL UNIT - .R
P091	AERIAL FOR FIAT-CODE	Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R
