Vehicle electronic systems › Abs - wiring diagram

Wiring diagrams and electrical functionsAbs - wiring diagram

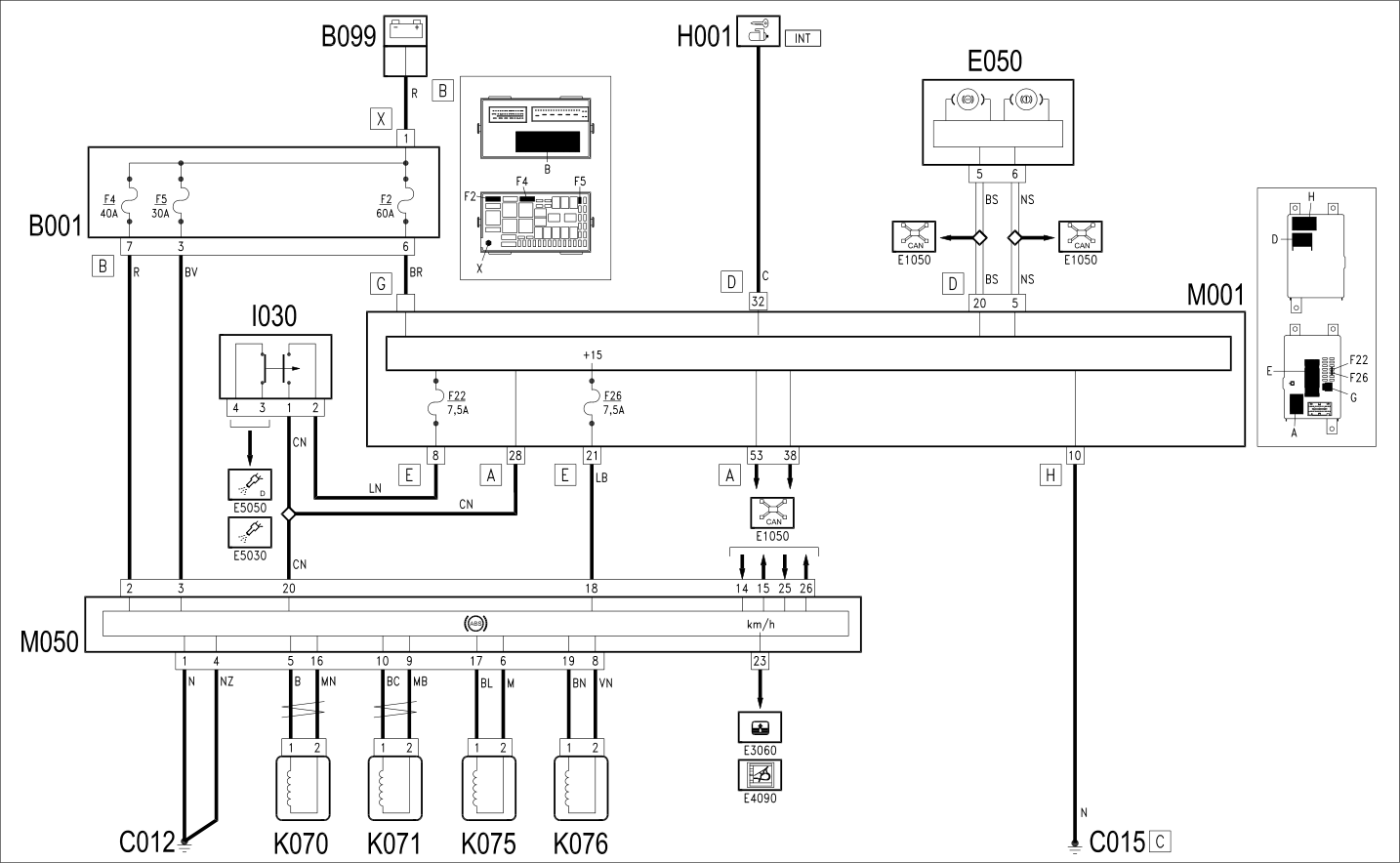

ABS - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C012	ABS FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
I030	BRAKE PEDAL SWITCH	Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1060D38 SWITCH ON BRAKE PEDAL - R.R (DIESEL ENGINES)
K070	LEFT FRONT WHEEL SENSOR FOR ABS	Op. 3340A30 RPM SENSOR (ONE) FOR ONE FRONT WHEEL, LEFT OR RIGHT - R.R.
K071	RIGHT FRONT WHEEL SENSOR FOR ABS	Op. 3340A30 RPM SENSOR (ONE) FOR ONE FRONT WHEEL, LEFT OR RIGHT - R.R.
K075	LEFT REAR WHEEL SENSOR FOR ABS	Op. 3340A34 LEFT OR RIGHT REAR WHEEL RPM SENSOR (ONE) - R.R.
K076	RIGHT REAR WHEEL SENSOR FOR ABS.	Op. 3340A34 LEFT OR RIGHT REAR WHEEL RPM SENSOR (ONE) - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
