SWITCH ON BRAKE PEDAL - R.R (DIESEL ENGINES)

Operation 1060D38 · ELECTRONIC DIESEL INJECTION PUMP CONTROL

1.3 Multijet, 1.9 Multijet

Removing

- Work on the left side.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

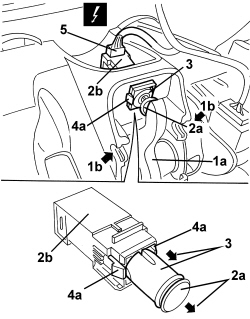

1. Press brake pedal (1a) and maintain in this position by inserting a screwdriver between seats (1b).

2. Extract pin (2a) of switch (2b) to the end of its travel.

3. Extract the red collar to the end of its travel.

4. Release retainers (4a) and extract switch (2b).

5. Disconnect the electrical connection.

Refitting

- Check that the switch is not damaged.

- Ensure the brake pedal is lowered.

1. Extract pin (1a) of switch (1b) to the end of its travel.

2. Extract the red collar to the end of its travel.

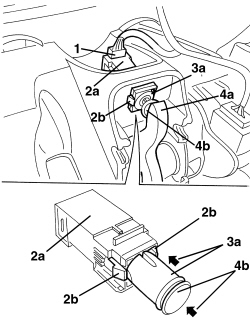

1. Connect the electrical connection.

2. Place the switch (2a) in position and attach the retainers (2b).

The switch may be fitted in a single position in relation to the seat.

3. Insert the red collar (3a) locking retainers (2b) in its seat.

4. Remove the screwdriver and release the clutch pedal so that lever (4a) returns pin (4b).

- Check that the brake lights are working.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R
