SWITCH ON CLUTCH PEDAL- R. R (DIESEL ENGINES)

Operation 1060D42 · ELECTRONIC DIESEL INJECTION PUMP CONTROL

1.3 Multijet, 1.9 Multijet

Removing

- Work on the left side.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

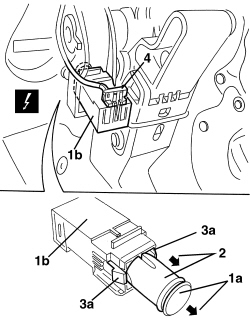

1. Press the clutch pedal and extract pin (1a) of switch (1b) at the end of the travel.

2. Extract the red collar to the end of its travel.

3. Release the retainers (3a) and extract the switch (1b).

4. Disconnect the electrical connection.

Refitting

- Check that the switch is not damaged.

- Lower the clutch pdal and keep it lowered.

1. Extract pin (1a) of switch (1b) to the end of its travel.

2. Extract the red collar to the end of its travel.

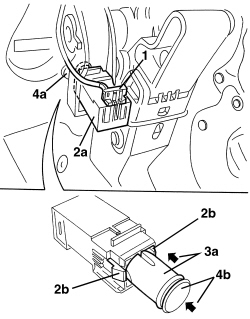

1. Connect the electrical connection.

2. Place the switch (2a) in position and attach the retainers (2b).

The switch may be fitted in a single position in relation to the seat.

3. Insert the red collar (3a) locking retainers (2b) in its seat.

4. Release the clutch pedal so that lever (4a) returns pin (4b).

- Test the operation of the clutch switch.

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R
