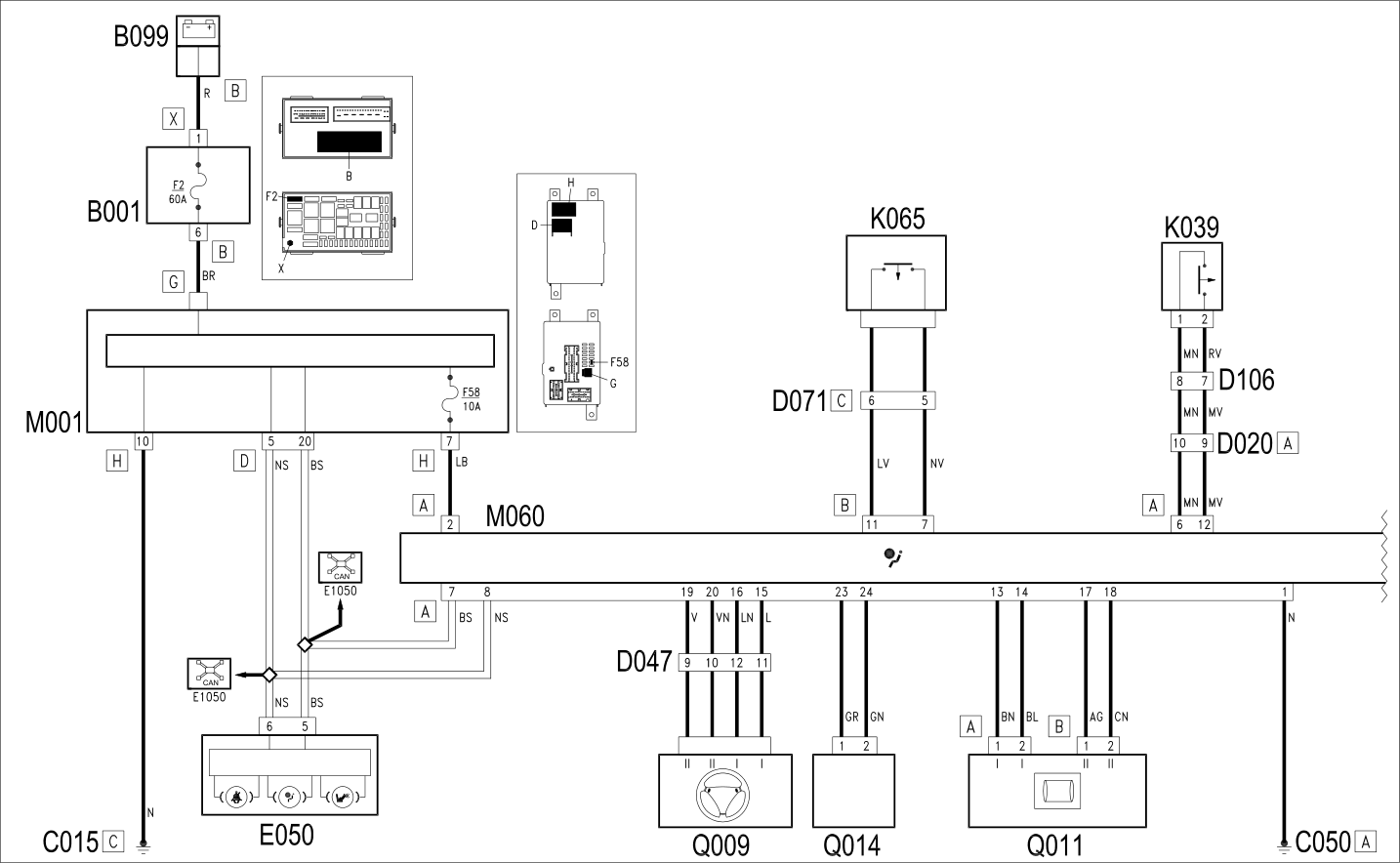

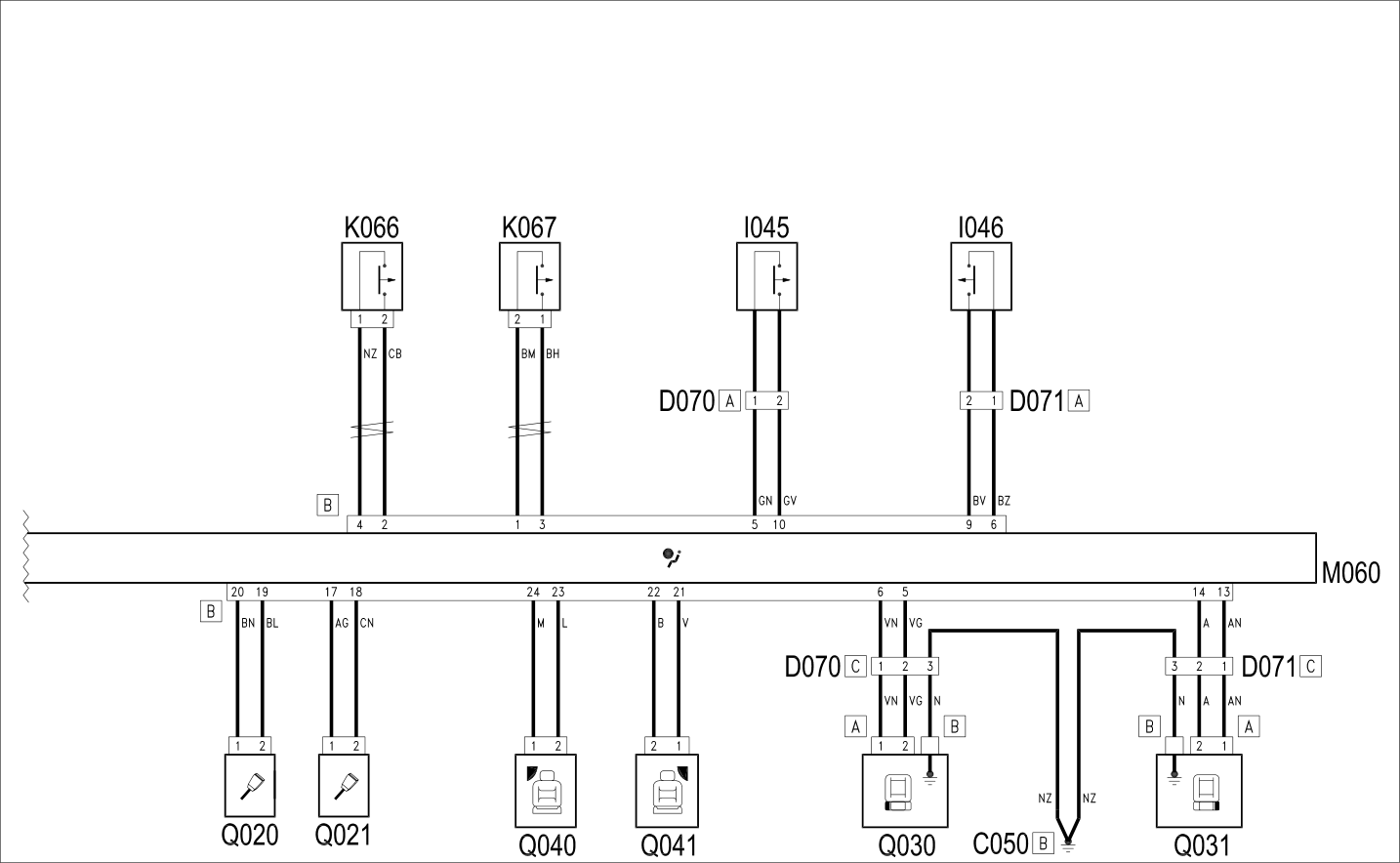

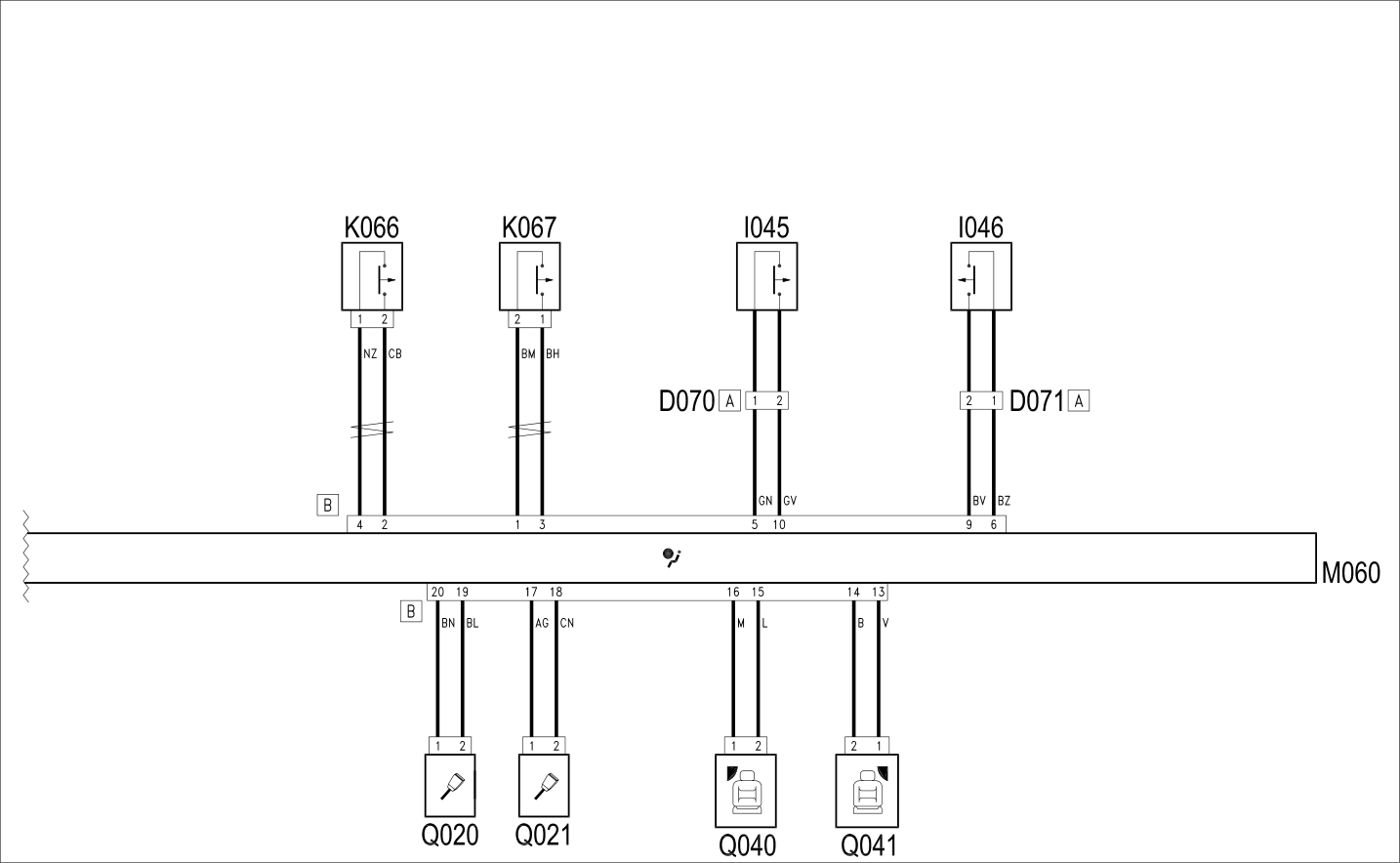

AIR BAG - WIRING DIAGRAM
Side Bag
WIRING DIAGRAM
COMPONENTS
Component code Description Reference to the operation B001 JUNCTION UNIT Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R. B099 MAXI FUSE BOX ON BATTERY Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R C015 DASHBOARD EARTH, DRIVER'S SIDE C050 AIR BAG SYSTEM EARTH D020 DASHBOARD/REAR COUPLING D047 CLOCK SPRING COUPLING Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R D070 DRIVER'S SEAT COUPLING D071 PASSENGER SEAT COUPLING D106 REAR/CROSSMEMBER COUPLING E050 INSTRUMENT PANEL Op. 5560B10 CONTROL PANEL - R+R D070 DRIVER'S SEAT COUPLING D071 PASSENGER SEAT COUPLING E050 INSTRUMENT PANEL Op. 5560B10 CONTROL PANEL - R+R I046 DRIVER'S SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. I047 PASSENGER SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. K039 FRONT AIR BAG SENSOR Op. 5580C10 DECELERATION SENSOR FOR AIR BAG (ONE), L/H OR R/H - R+R K065 PASSENGER PRESENCE SENSOR Op. 7065A34 PASSENGER PRESENCE SENSOR ON FRONT SEAT FOR INDICATING SEATBELT UNFASTENED R R K066 SENSOR FOR DRIVER'S SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. K067 SENSOR FOR PASSENGER SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. M001 BODY COMPUTER Op. 5505A32 BODY COMPUTER - R.R M060 AIR BAG CONTROL UNIT Op. 5580C14 AIR BAG ECU - R+R Q009 AIR BAG GUIDATORE Op. 5580C18 AIR BAG MODULE - R+R Q011 AIR BAG IN DASHBOARD (PASSENGER SIDE) Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R Q014 DRIVER'S SIDE KNEE BAG Q020 DRIVER'S SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LH OR RH, WITH PRETENSIONER ON REEL - R.R Q021 FRONT PASSENGER SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LH OR RH, WITH PRETENSIONER ON REEL - R.R Q030 AIR BAG LATERALE LATO GUIDA Op. 5580C44 FRONT SIDE BAG MODULE (ONE) LH OR RH - R.R Q031 AIR BAG LATERALE LATO PASSEGGERO Op. 5580C44 FRONT SIDE BAG MODULE (ONE) LH OR RH - R.R Q040 DRIVER'S HEAD BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R Q041 PASSENGER WINDOW BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R

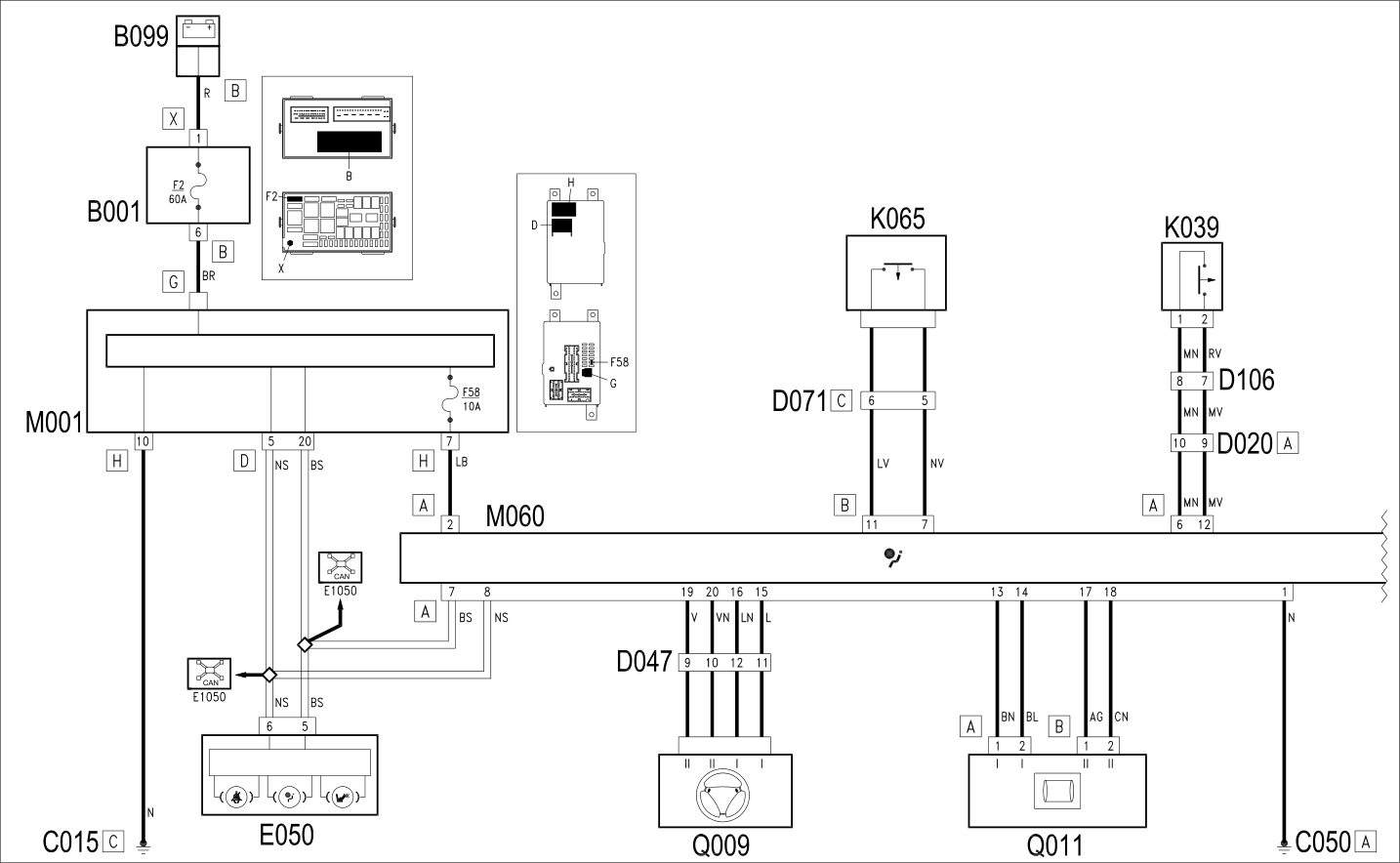

All versions
WIRING DIAGRAM
COMPONENTS
Component code Description Reference to the operation B001 JUNCTION UNIT Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R. B099 MAXI FUSE BOX ON BATTERY Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R C015 DASHBOARD EARTH, DRIVER'S SIDE C050 AIR BAG SYSTEM EARTH D020 DASHBOARD/REAR COUPLING D047 CLOCK SPRING COUPLING Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R D070 DRIVER'S SEAT COUPLING D071 PASSENGER SEAT COUPLING D106 REAR/CROSSMEMBER COUPLING E050 INSTRUMENT PANEL Op. 5560B10 CONTROL PANEL - R+R D070 DRIVER'S SEAT COUPLING D071 PASSENGER SEAT COUPLING E050 INSTRUMENT PANEL Op. 5560B10 CONTROL PANEL - R+R I046 DRIVER'S SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. I047 PASSENGER SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. K039 FRONT AIR BAG SENSOR Op. 5580C10 DECELERATION SENSOR FOR AIR BAG (ONE), L/H OR R/H - R+R K065 PASSENGER PRESENCE SENSOR Op. 7065A34 PASSENGER PRESENCE SENSOR ON FRONT SEAT FOR INDICATING SEATBELT UNFASTENED R R K066 SENSOR FOR DRIVER'S SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. K067 SENSOR FOR PASSENGER SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. M001 BODY COMPUTER Op. 5505A32 BODY COMPUTER - R.R M060 AIR BAG CONTROL UNIT Op. 5580C14 AIR BAG ECU - R+R Q009 AIR BAG GUIDATORE Op. 5580C18 AIR BAG MODULE - R+R Q011 AIR BAG IN DASHBOARD (PASSENGER SIDE) Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R Q020 DRIVER'S SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LH OR RH, WITH PRETENSIONER ON REEL - R.R Q021 FRONT PASSENGER SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LH OR RH, WITH PRETENSIONER ON REEL - R.R Q040 DRIVER'S HEAD BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R Q041 PASSENGER WINDOW BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R
