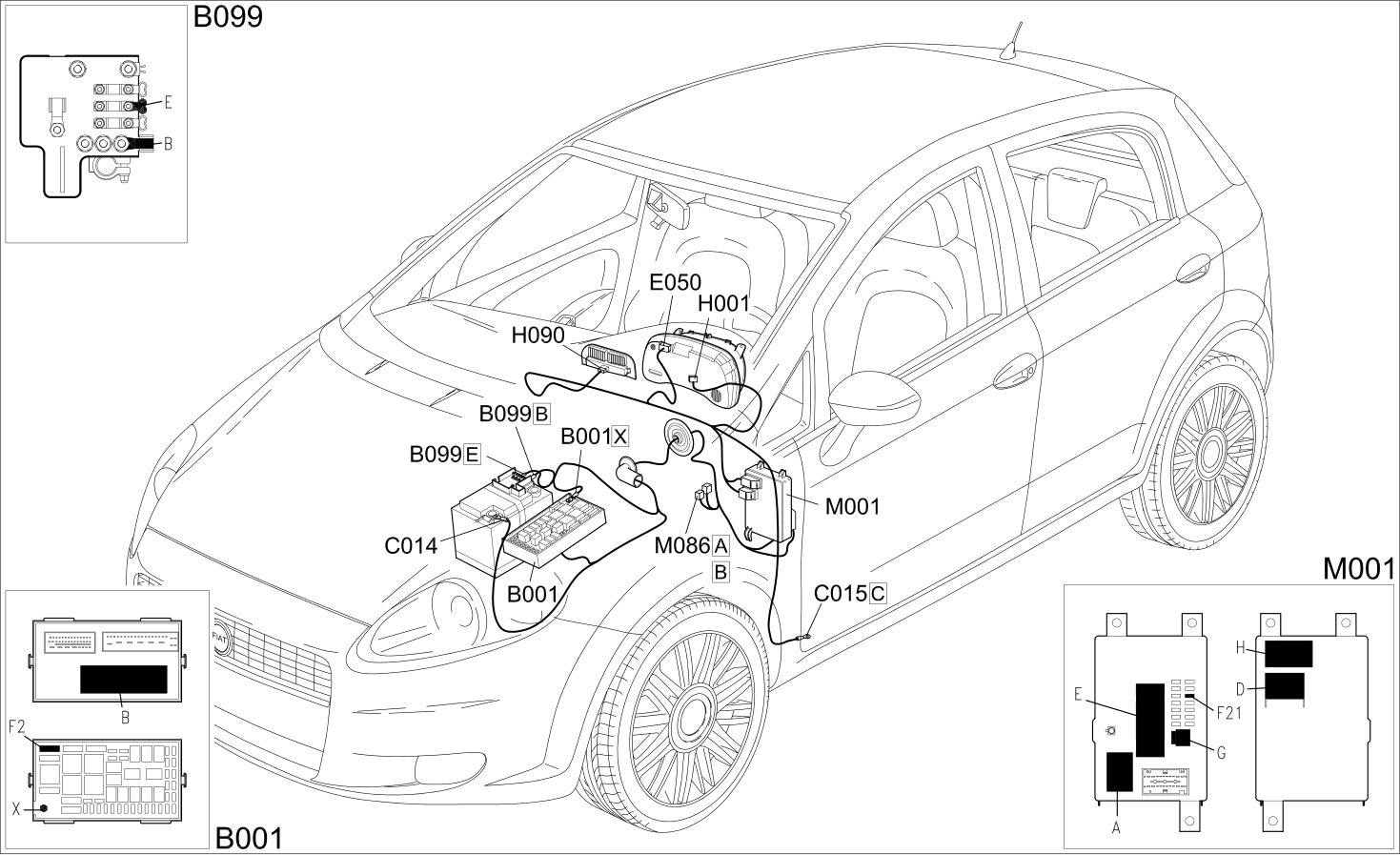

ELECTRIC STEERING - COMPONENT LOCATION

Component location

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C014	ELECTRIC STEERING FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M086	ELECTRIC STEERING CONTROL UNIT	Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R
