55 Electrical equipmentCopyright by Fiat Auto · page 3 of 3

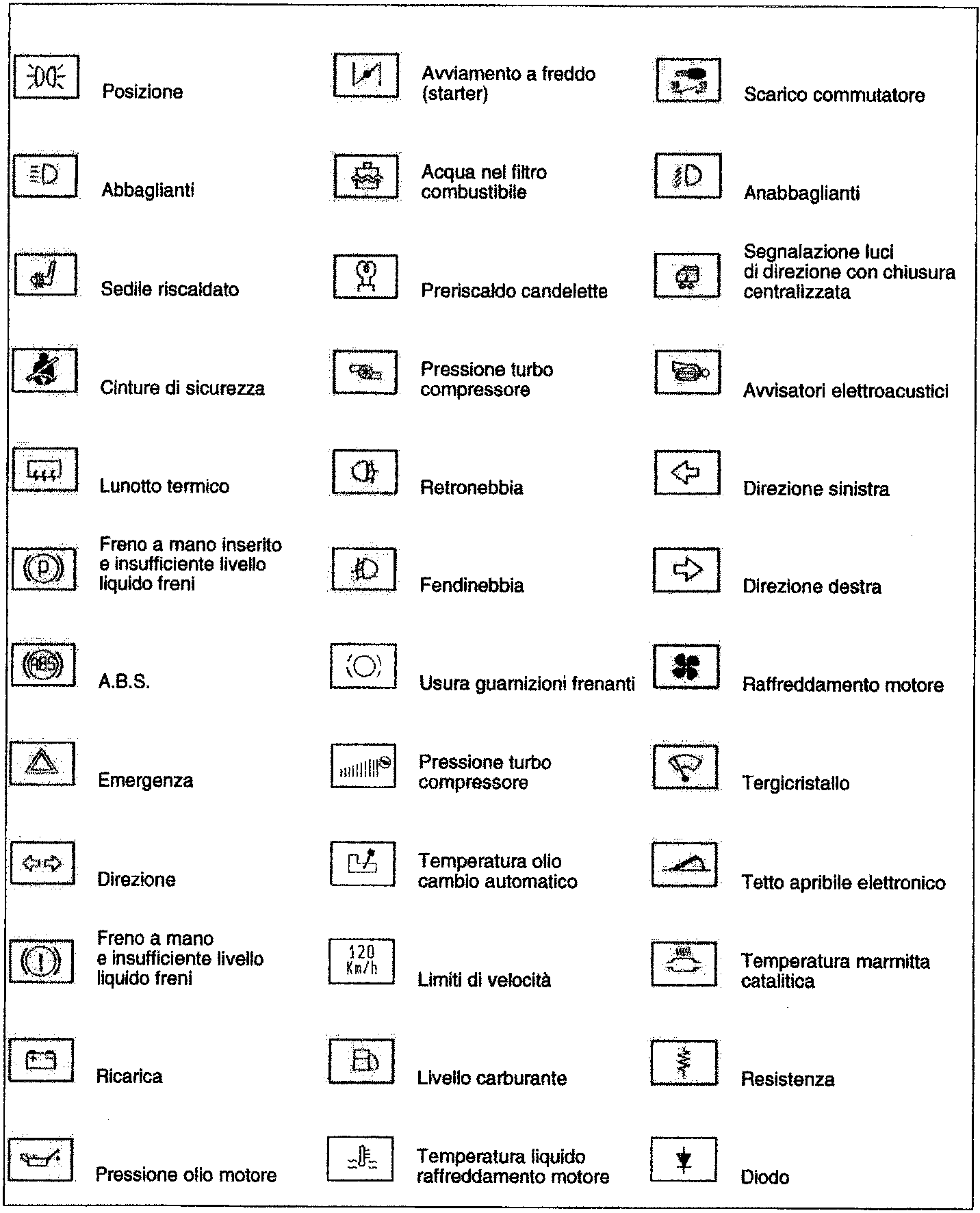

1. Position
2. Main beam
3. Heated seat
4. Safety belts
5. Rear window heater
6. Handbrake engaged and insufficient brake fluid level
7. A.B.S.
8. Emergency
9. Steering
10. Handbrake and insufficient brake fluid level
11. Charging
12. Engine oil pressure
13. Cold start (starter)
14. Water in fuel filter
15. Glow plug preheating
16. Turbocharger pressure
17. Rear fog light
18. Front fog lights
19. Brake pad wear
20. Turbocharger pressure
21. Automatic transmission oil temperature
22. Speed limits
23. Fuel level
24. Engine coolant temperature
25. EGR valve
26. Dipped beam
27. Direction indicator signal with central locking
28. Electro-acoustic warning devices
29. Left direction indicator
30. Right direction indicator
31. Engine cooling
32. Windscreen wiper
33. Electronic sunroof
34. Catalytic converter temperature
35. Resistor
36. Diode
