HEATED SEATS - Wiring diagram
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Electrically activated devices › HEATED SEATS - Wiring diagram
Wiring diagrams and electrical functionsHEATED SEATS - Wiring diagram
HEATED SEATS - Wiring diagram

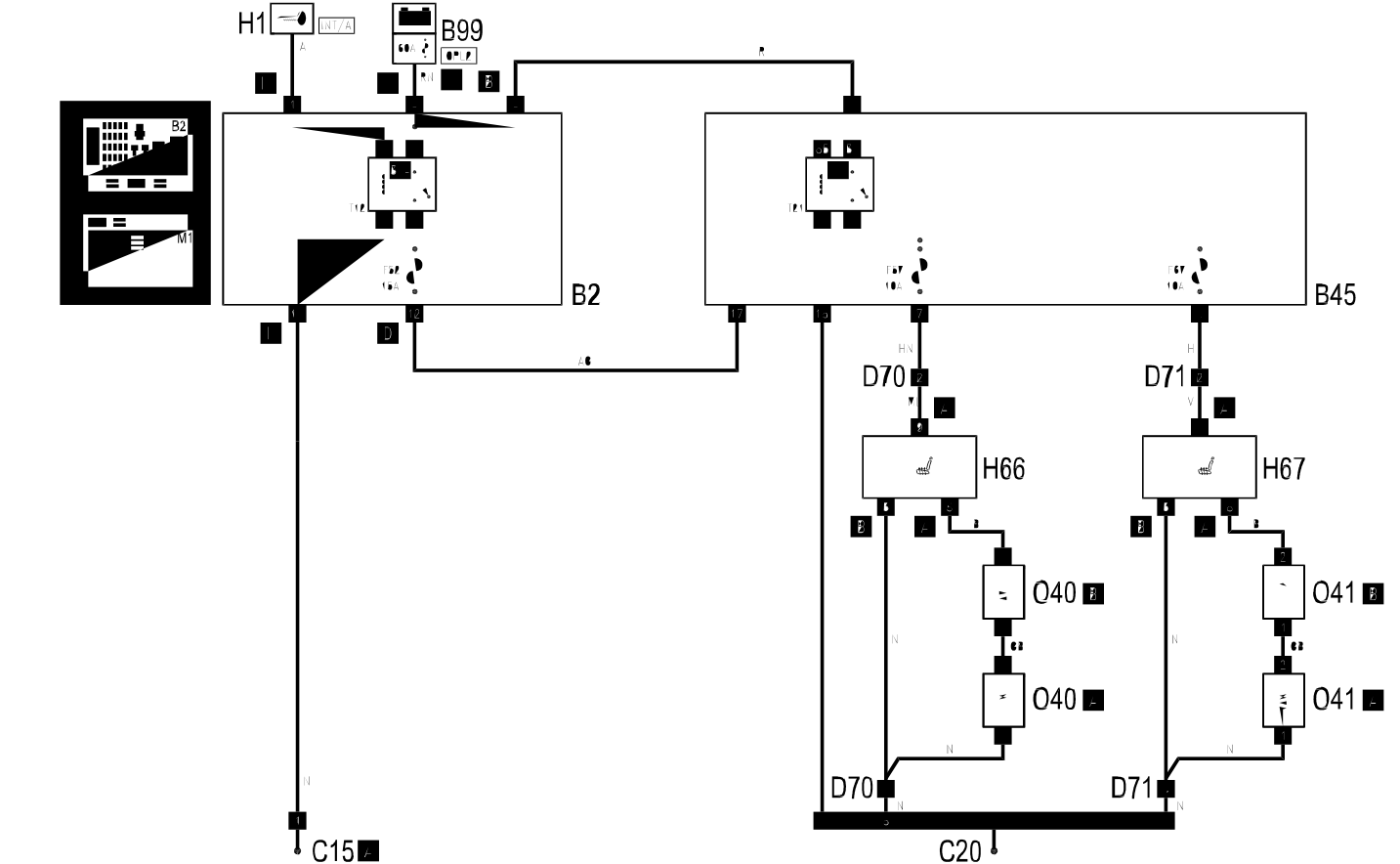

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B45 | Luggage compartment junction unit | |
| B99 | Maxifuse box on battery | 5530B |
| D70 | Driver's seat coupling | |
| D71 | Passenger seat coupling | |
| H66 | Driver's set movement controls | |
| H67 | Passenger seat movement controls | |
| I65 | Switch for driver's heated seat | |
| I66 | Switch for heated passenger seat | |
| O40 | Driver's side seat heater | |
| O41 | Passenger seat heater |

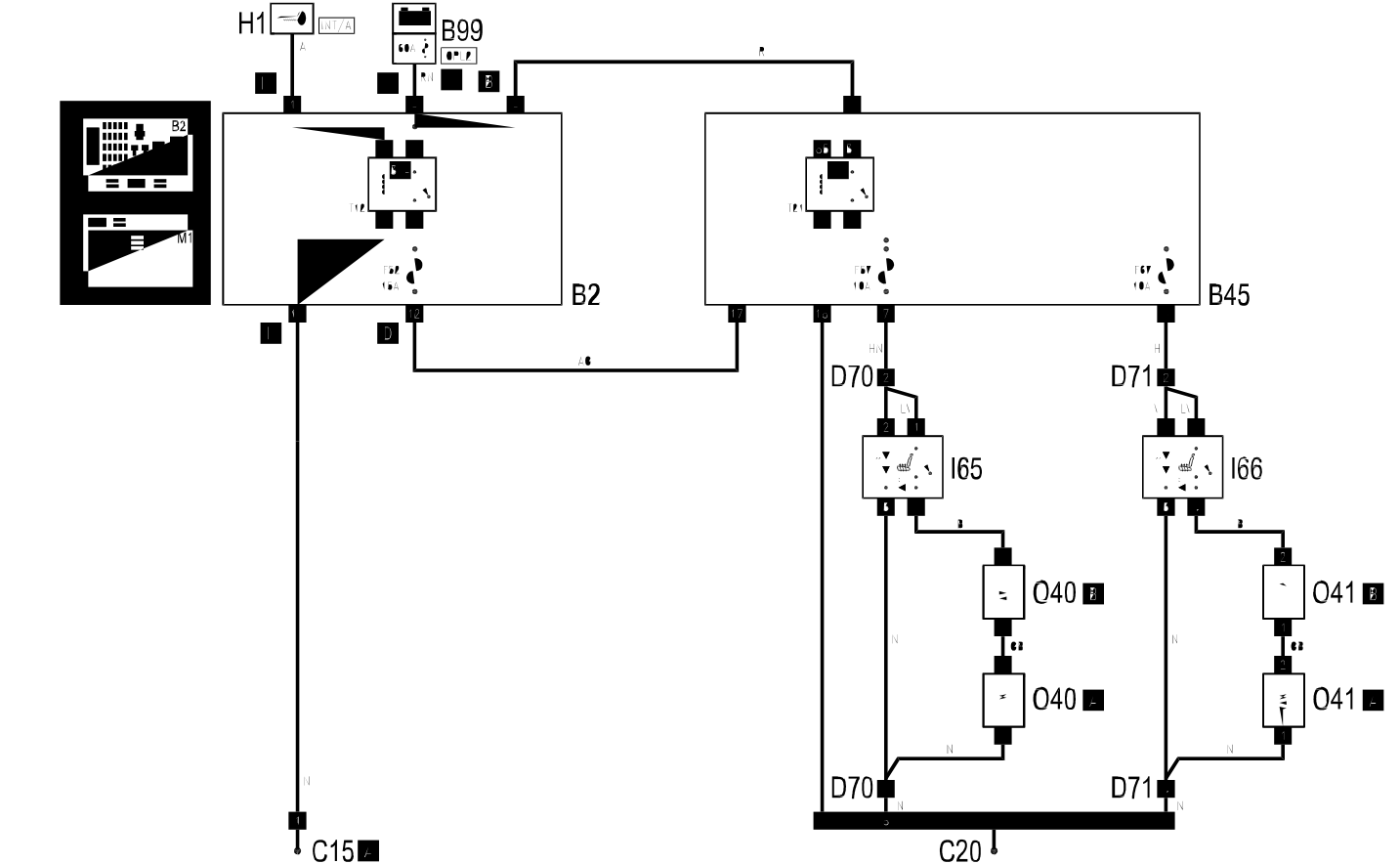

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B45 | Luggage compartment junction unit | |
| B99 | Maxifuse box on battery | 5530B |
| D70 | Driver's seat coupling | |
| D71 | Passenger seat coupling | |
| H66 | Driver's set movement controls | |
| H67 | Passenger seat movement controls | |
| I65 | Switch for driver's heated seat | |
| I66 | Switch for heated passenger seat | |
| O40 | Driver's side seat heater | |
| O41 | Passenger seat heater |
