SUN ROOF - Wiring diagram

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Electrically activated devices › SUN ROOF - Wiring diagram

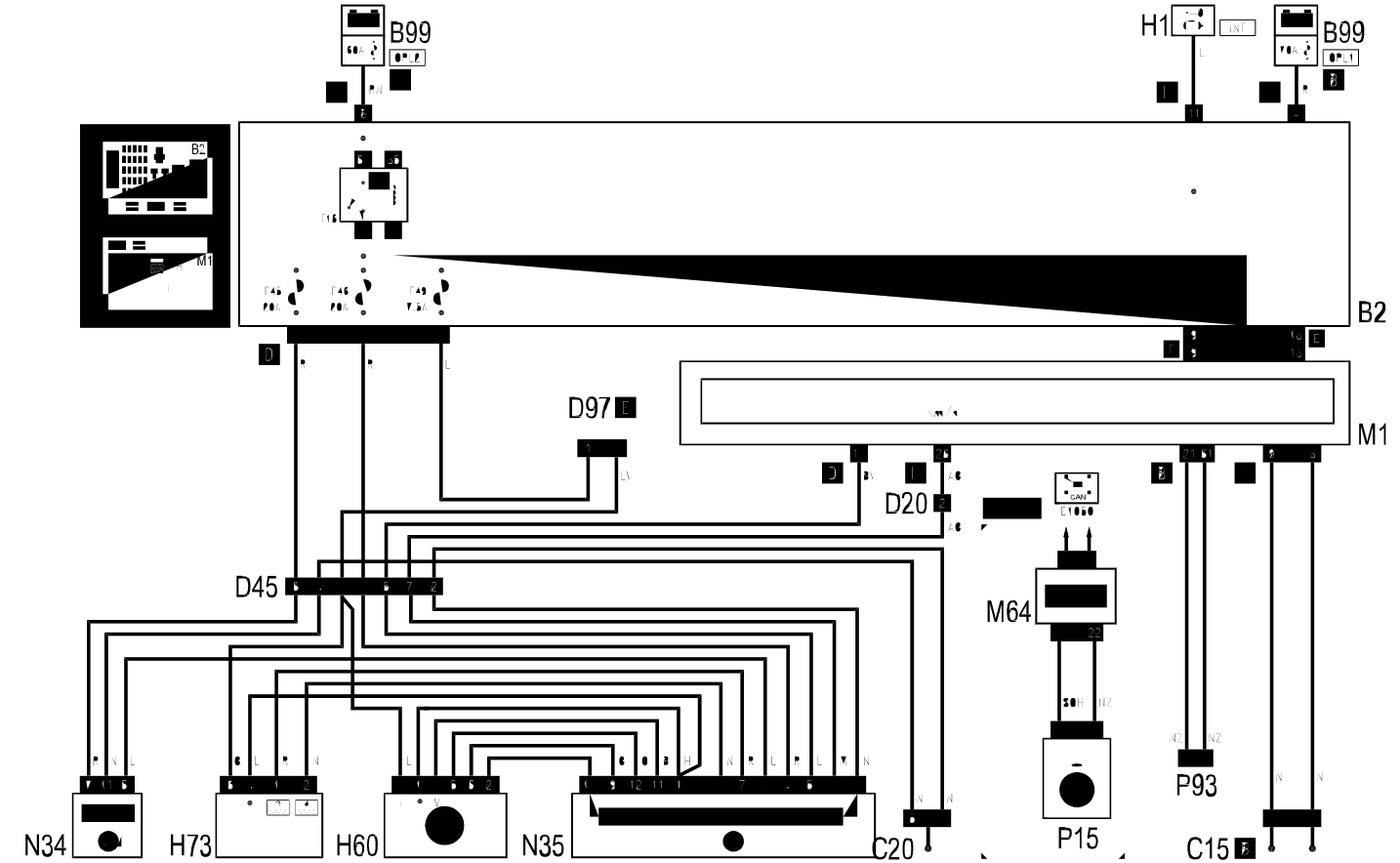

Wiring diagrams and electrical functionsSUN ROOF - Wiring diagram

SUN ROOF - Wiring diagram

Passive entry

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C20	Passenger side dashboard earth
D20	/Rear dashboard coupling
D20	Dashboard/rear coupling
D45	Sunroof connection
D97	Short circuiting coupling
H1	Ignition switch	5520A
H60	Sun roof switch
H73	Sun roof blind controls
M1	Body computer	5505A
M64	Passive entry control unt
N34	Sun roof blind motor
N34	Sun roof blind motor.
N35	Sun roof motor	7030B
P15	RF aerial for passive entry control unit
P93	Aerial for alarm and central locking receiver
