Land Rover Defender 90 Workshop Manual (NAS)07 · Engine
07 · Engine

CAUTION: Plug the connections. (page 3 of 5)

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair
EngineCAUTION: Plug the connections. · page 3 of 5
Diagram

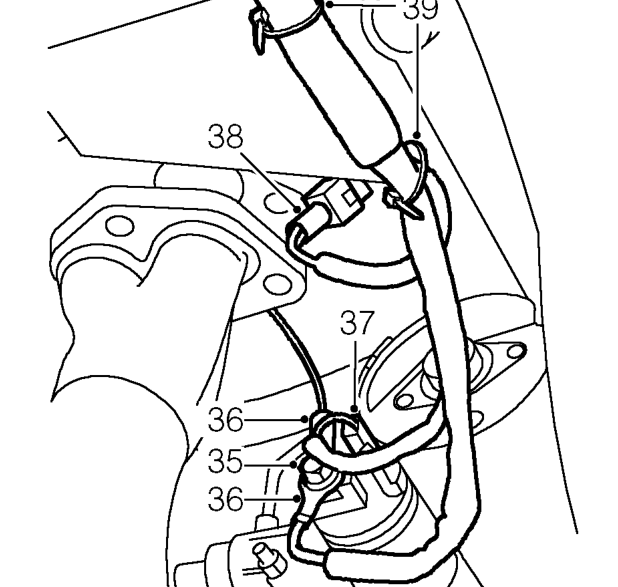

  1. Remove screw securing crankshaft position
  2. Disconnect multiplug from crankshaft position
  3. Remove bolt securing gearbox cooler pipes to
  4. Remove starter motor solenoid terminal nut.
  5. Release 2 battery leads from terminal.
  6. Disconnect solenoid Lucar.
  7. Disconnect multiplug from RH Knock sensor.

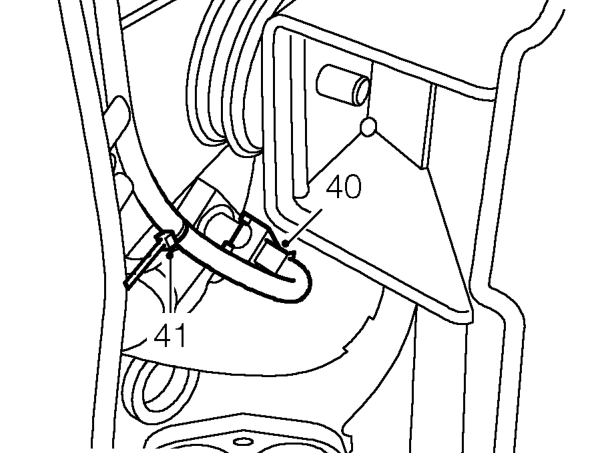

  8. Remove 2 cable ties securing engine harness to RH engine mounting bracket.
Remove 2 cable ties securing engine harness to RH engine mounting bracket.
  1. Remove 7 bolts securing bell housing closing
  2. Remove 3 bolts securing bell housing access
  3. Disconnect multiplug from LH knock sensor.

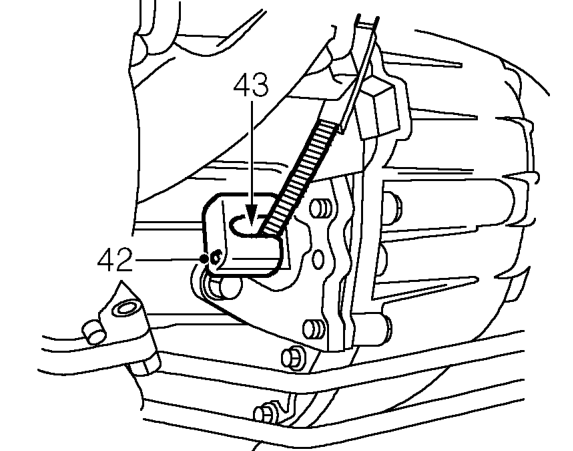

  4. Remove cable tie securing engine harness to LH engine mounting bracket.
Remove cable tie securing engine harness to LH engine mounting bracket.

sensor heat shield and remove heat shield.

sensor.

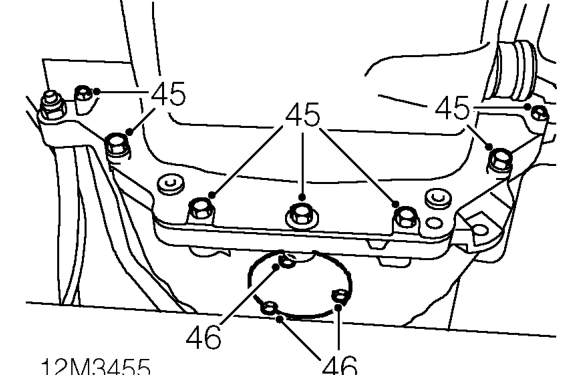

engine sump bracket.

engine sump bracket.

plate and remove plate.

plate and remove plate.
