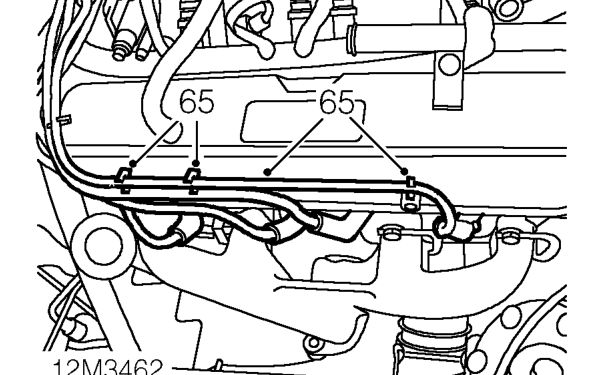

  1. Release RH bank HT leads from clips and

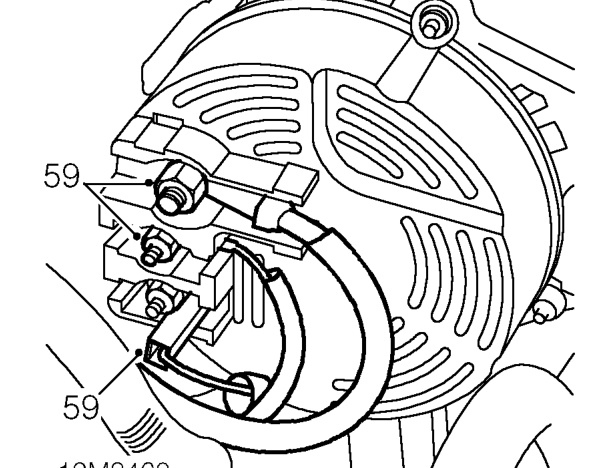

  2. Remove 2 alternator terminal nuts and disconnect Lucar.
Remove 2 alternator terminal nuts and disconnect Lucar.
  1. Remove 2 screws securing engine harness to
  2. Disconnect multiplug from ECT sensor.
  3. Disconnect multiplug from fuel temperature
  4. Remove screw securing heater pipe to bracket.
  5. Loosen clip screw and remove heater hose/pipe
  6. Disconnect temperature sensor thermistor.

assembly from inlet manifold.

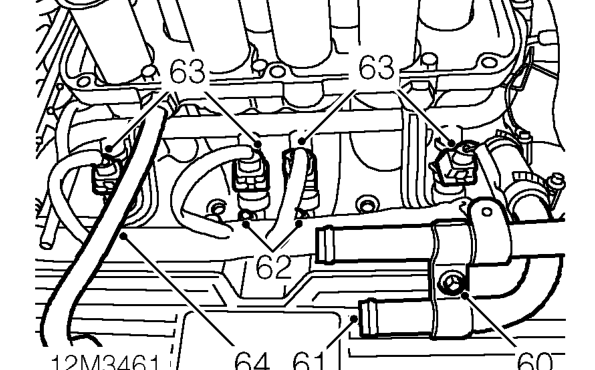

  1. Disconnect 4 LH injector multiplugs.
  2. Remove 2 screws securing engine harness to
  3. Release ignition coil multiplug from mounting

RH side of inlet manifold.

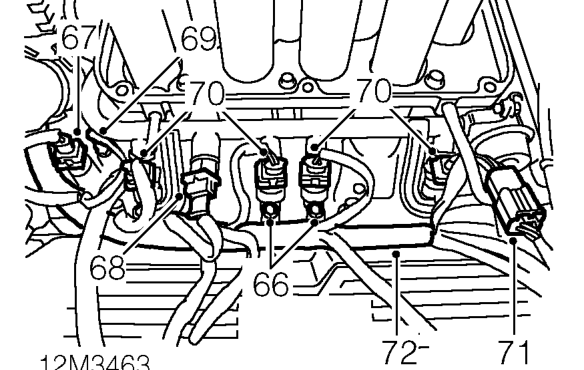

  1. Disconnect 4 RH injector multiplugs.
  2. Position engine harness aside.
  3. Disconnect RH rocker cover breather pipe from ram housing.
Disconnect RH rocker cover breather pipe from ram housing.

disconnect from spark plugs.

disconnect from spark plugs.

LH side of inlet manifold.

sensor.

bracket and disconnect multiplug.
