HEADLAMP LEVELLING SWITCH

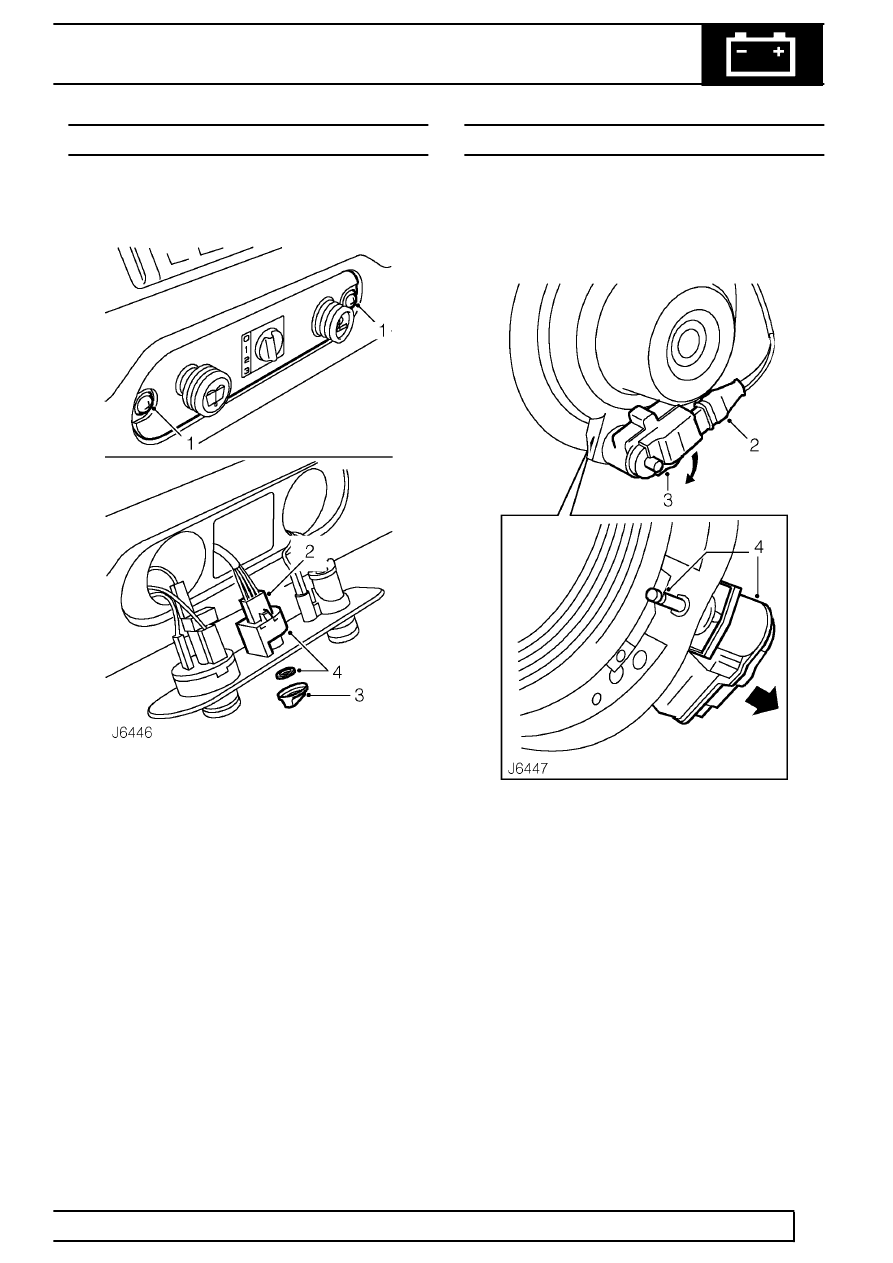

Service repair no - 86.65.16

Remove

1. Remove 2 screws and withdraw switch panel

from lower fascia.

2. Disconnect multi-plug from rear of headlamp

levelling switch.

3. Remove knob from switch spindle.
4. Unscrew retaining nut and withdraw switch from

switch panel.

Refit

5. Fit switch into switch panel and secure with

retaining nut.

6. Fit switch knob.
7. Connect switch multi-plug.
8. Fit switch panel.

HEADLAMP LEVELLING UNIT

Service repair no - 86.41.16

Remove

1. Remove headlamp

See Headlamp.

2. Disconnect headlamp levelling unit harness

plug.

3. Rotate levelling unit anti-clockwise to release

retaining lugs from mounting bracket on
headlamp body.

4. Release levelling unit spindle from retaining slot

on headlamp bezel and withdraw unit from
mounting bracket.

Refit

5. Fit levelling unit into mounting bracket and locate

unit spindle into slot in headlamp bezel.

6. Press in unit and rotate clockwise to engage

retaining lugs behind mounting bracket.

7. Connect levelling unit harness plug.
8. Fit headlamp

See Headlamp.
