FUEL SYSTEM
13
REPAIR

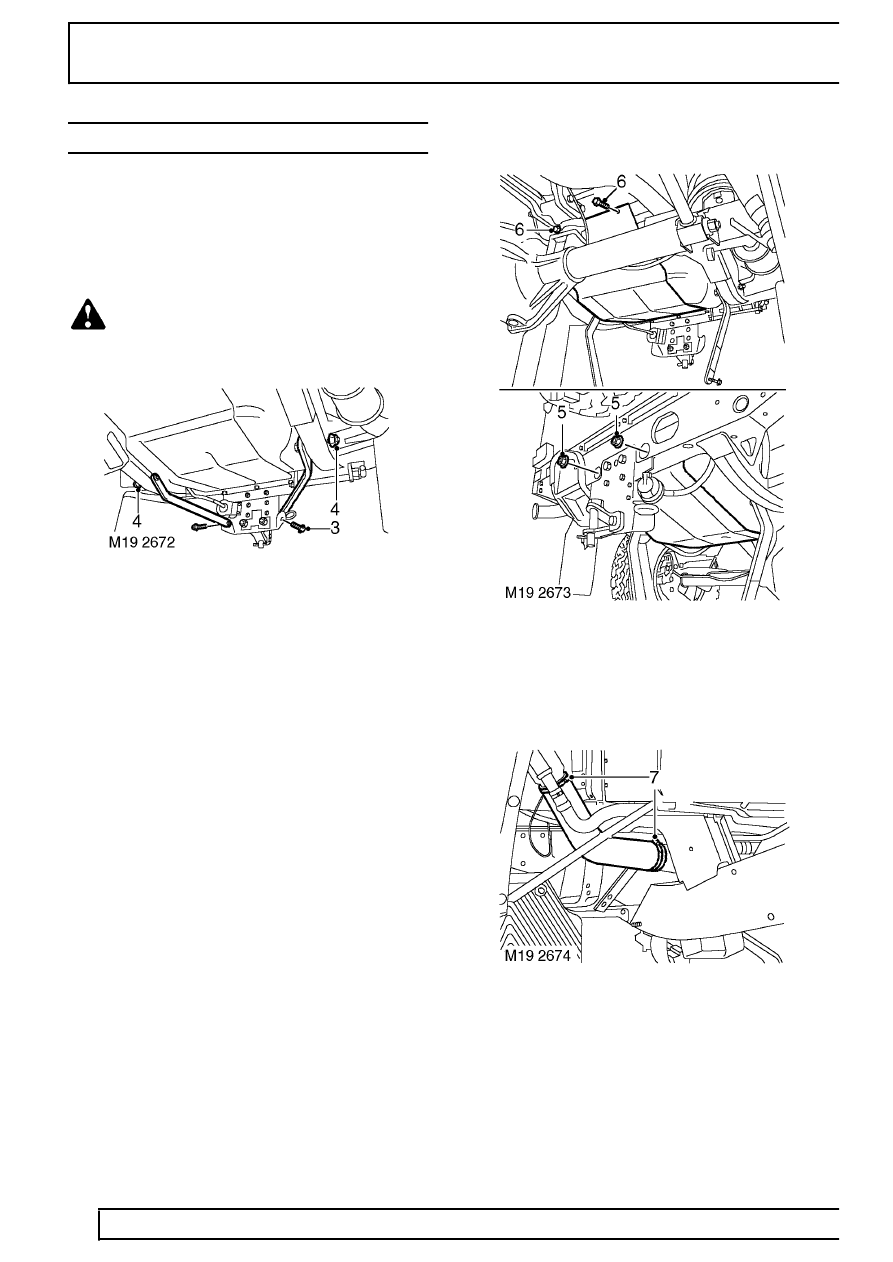

8. Disconnect vent hose from clips on rear chassis
member.
9. Support weight of fuel tank.
10. With assistance, lower fuel tank and remove
support plate.
11. Disconnect multiplug from fuel pump.
12. Noting their fitted position, disconnect 4 fuel
hoses from fuel pump.
13. Release clip and disconnect filler neck breather
from fuel tank.
14. With assistance, lower and remove fuel tank.
15. Remove 2 scrivits securing heat shield remove
heat shield.
16. Release clip securing breather hose to tank and
remove hose.
17. Using LRT-19-009 remove fuel pump locking
ring.
18. Remove fuel pump and discard sealing ring.
