Panel repairs’Bc’ post (5-door) refit

’BC’ POST (5-DOOR) Refit

Remove

  1. Disconnect battery earth lead.
  2. Raise side of vehicle.

WARNING: Support on safety stands.

  1. Disconnect all ECUs.
  2. Disconnect airbags and sensor system. See SUPPLEMENTARY RESTRAINT SYSTEM, Repair.
  3. Remove sill finisher. See CHASSIS AND BODY, Repair.
  4. Remove front seat. See CHASSIS AND BODY, Repair.
  5. Remove headlining. See CHASSIS AND BODY, Repair.
  6. Remove front and rear treadplates.
  7. Remove front and rear door aperture weatherstrips.
  8. Remove ’BC’ post trim.
  9. Remove rear side door. See CHASSIS AND BODY, Repair.
  10. Prepare and clean panel joint faces. Punch or
  11. Reverse removal procedure.
  12. Remove stands and lower vehicle.
Warning: support on safety stands. – Remove stands and lower vehicle.

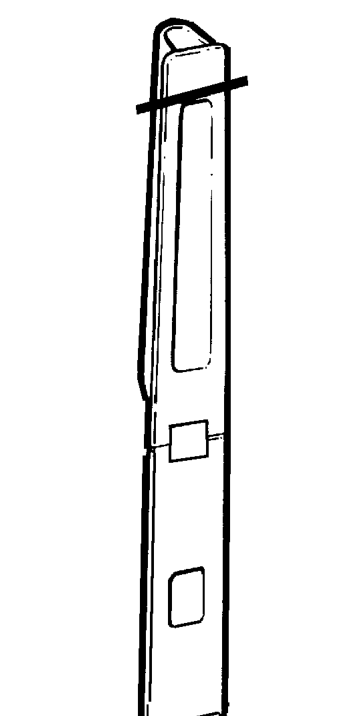

drill holes in new ’BC’ post repair panel for plug welding. Cut closing panel as shown to form a seam welded butt joint with the existing panel.
