HEADLAMP PANEL Refit

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect all ECUs.
  2. Disconnect airbags and sensor system. See SUPPLEMENTARY RESTRAINT SYSTEM, Repair.
  3. Disconnect alternator.
  4. Remove RH or LH headlight.
  5. Remove RH or LH front direction indicator.
  6. Remove battery at RH inner wing (RH only).
  7. Remove RH or LH wing [fender]. See CHASSIS AND BODY, Repair.
  8. Remove front grille.
  9. Remove radiator/oil coolers. 17. Prepare and clean panel joint faces. Punch or
  10. Remove power steering fluid reservoir and bracket at LH of radiator (LH only).
  11. Remove ignition coil and bracket at LH of 18. Reverse removal procedure. radiator - on petrol engine vehicles (LH only). 19. Remove stands and lower vehicle.
  12. Remove owner jack and jack cover at LH inner wing (LH only).
  13. Remove engine air cleaner box at LH inner wing (LH only).
  14. Remove battery at RH inner wing (RH only).
Warning: support on safety stands. – Remove battery at RH inner wing (RH only).

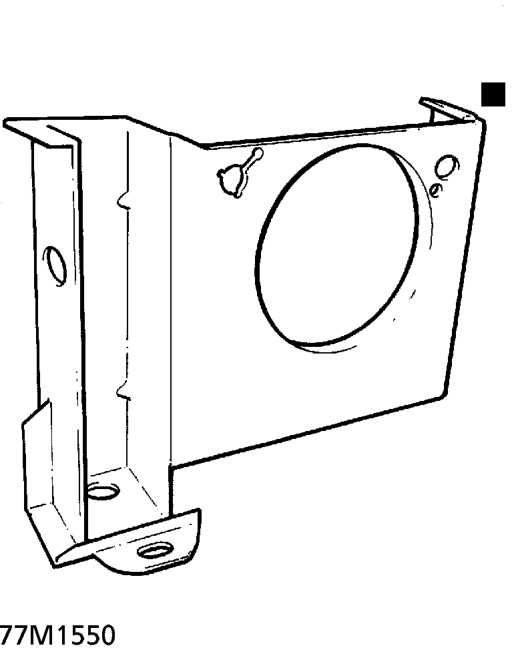

drill hole in headlamp panel top outer corner for plug welding as shown.
