Body side panel (5-door) (page 2 of 2)

Make

Land Rover

Model

Discovery Body Repair Manual

Year

1995 on

Section

Repair

Panel repairsBody side panel (5-door) · page 2 of 2

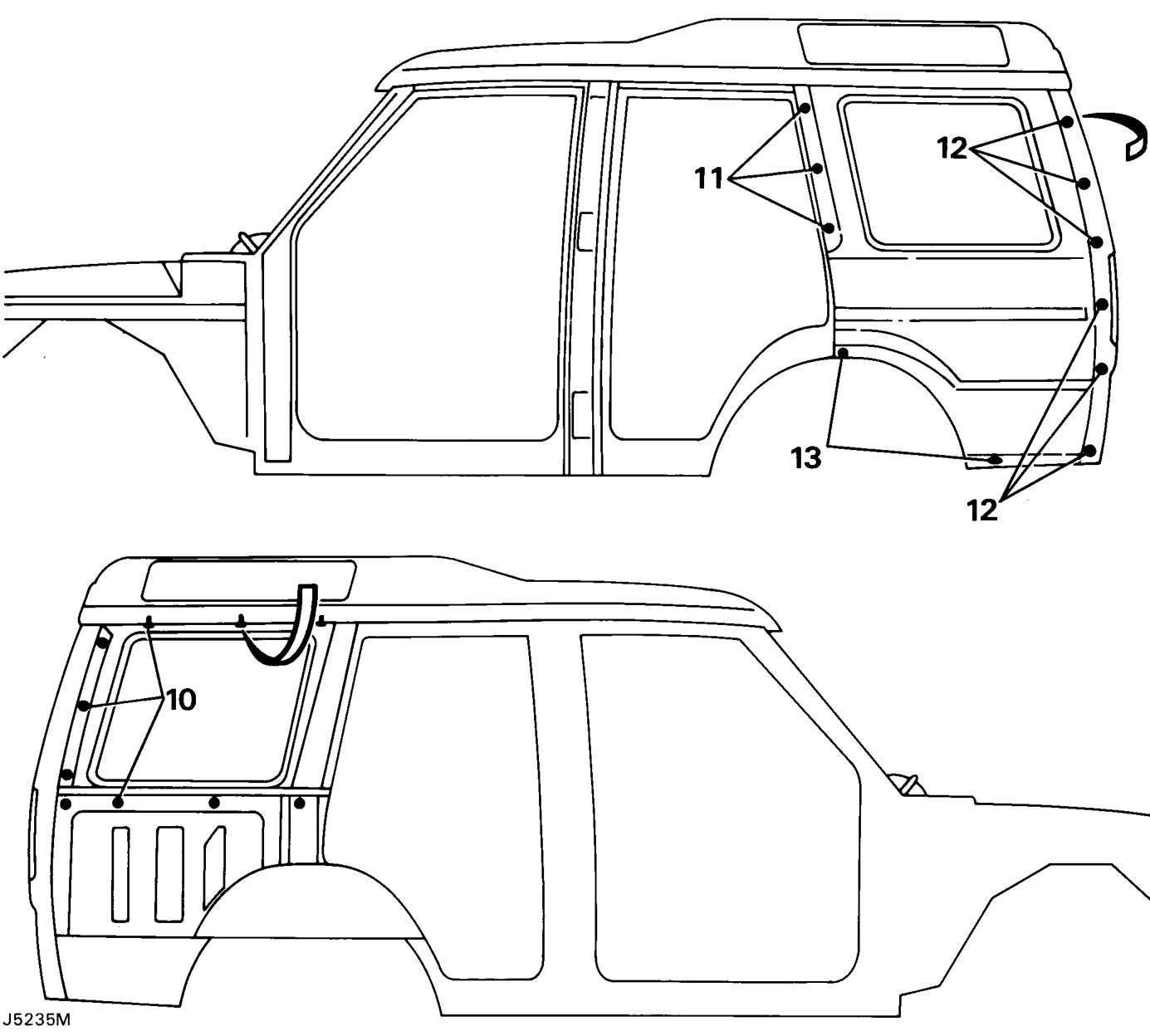

10. Working through the three apertures in ’D’ post, remove nuts and washers, and detach ’D’ post capping.
11. Remove three countersunk self-tapping screws securing body side panel to ’D’ post.
12. Remove six countersunk self-tapping screws securing rear quarter panel to ’E’ post.
13. Remove two bolts; one inside wheel arch and one at lower edge of body side panel.
