Central locking (Japan) – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Central locking (Japan) – circuit diagram

Central locking (Japan)Central locking (Japan) – circuit diagram

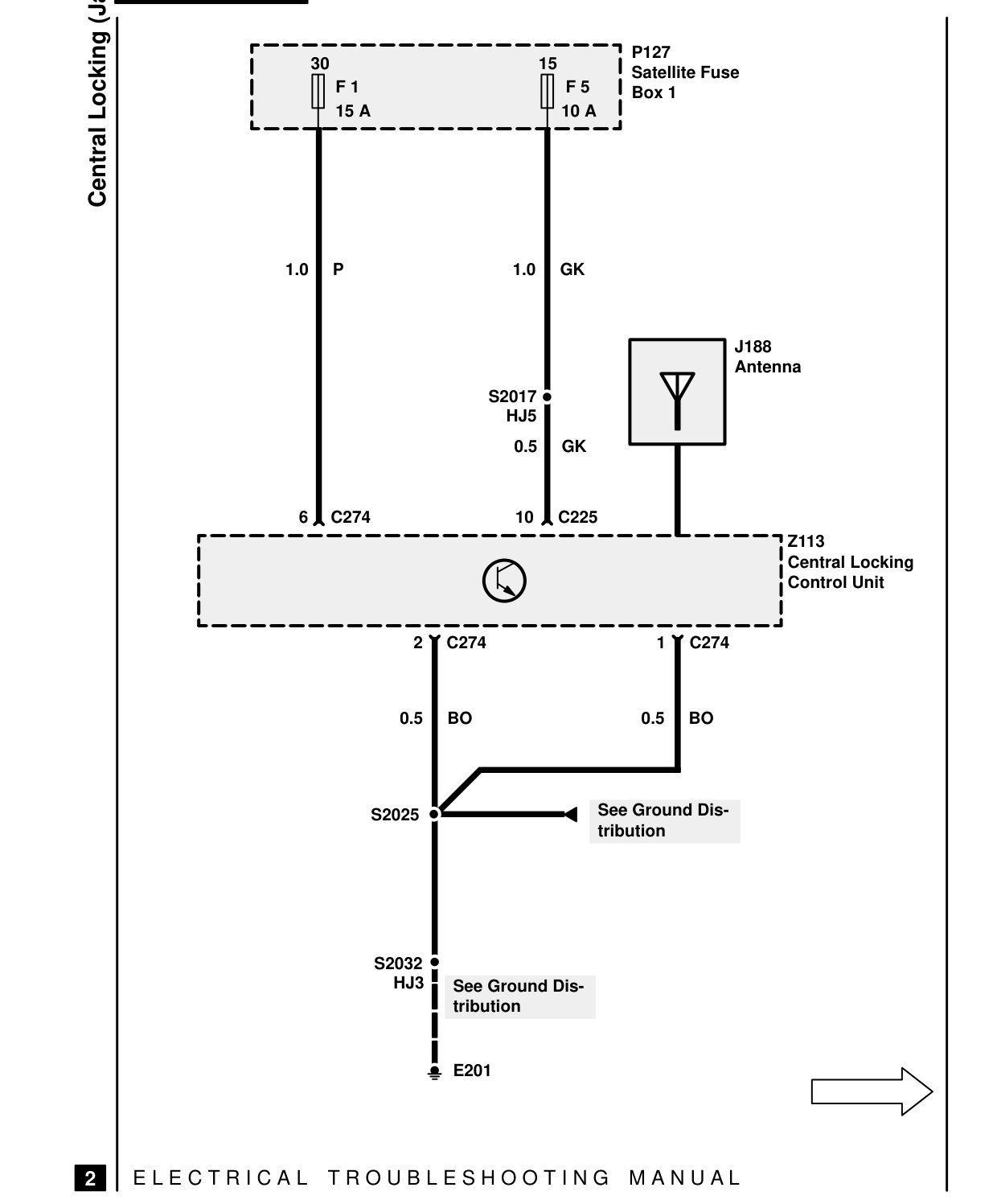

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM

Central Locking (Japan) 30 F 1 15 A

1.0 P

6 C274

2 C274

0.5 BO

S2025

S2032 HJ3 See Ground Dis- tribution

E201

E L E C T R I C A L T R O U B L E S H O O T I N G

2

P127 15 Satellite Fuse F 5 Box 1 10 A

1.0 GK

J188 Antenna S2017 HJ5 0.5 GK

10 C225 Z113 Central Locking Control Unit

1 C274

0.5 BO

See Ground Dis- tribution

M A N U A L

34 General
