Central locking (Japan) – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Central locking (Japan) – circuit diagram

Central locking (Japan)Central locking (Japan) – circuit diagram

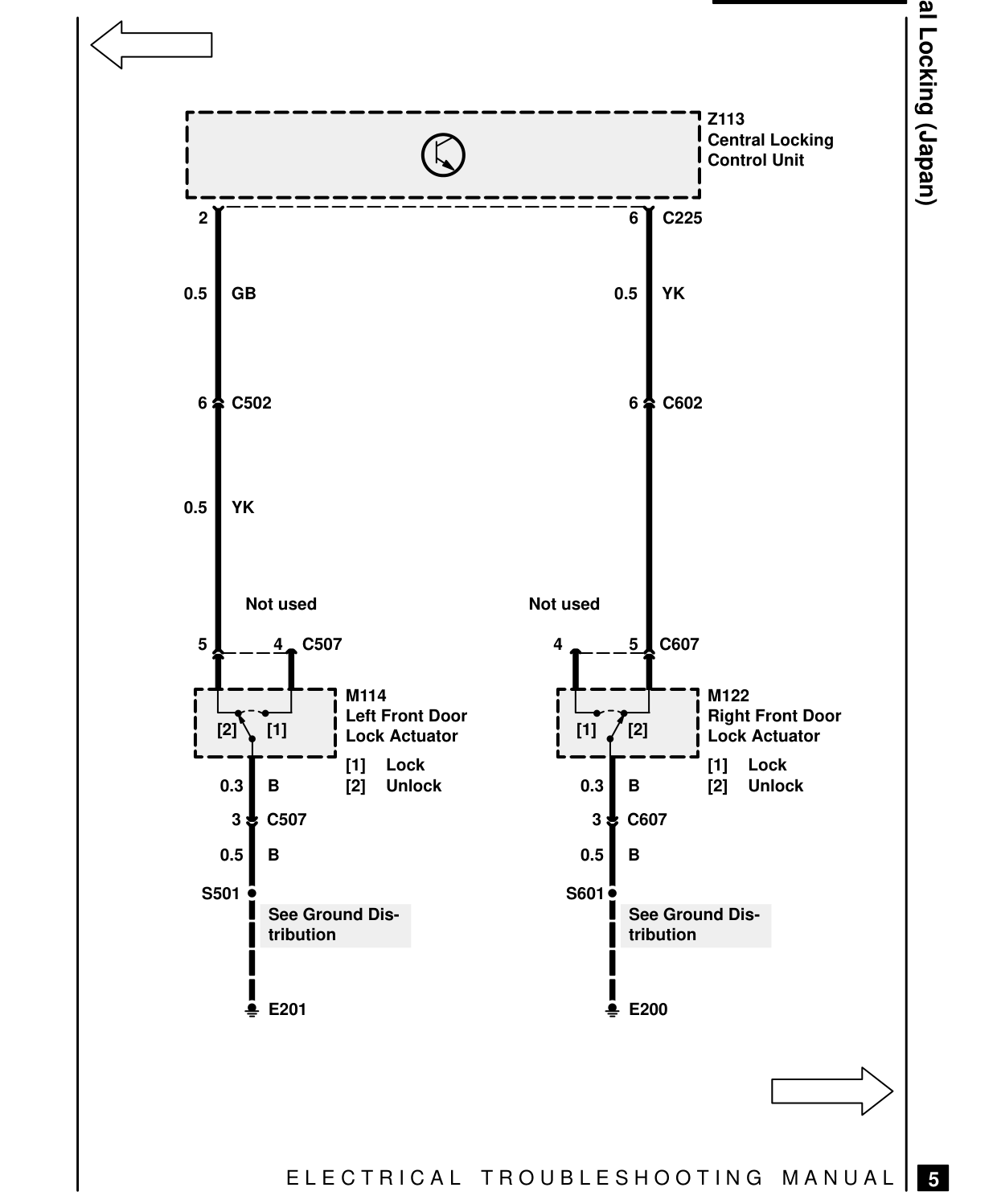

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM

2

0.5 GB

6 C502

0.5 YK

Not used

5 4 C507

M114 Left Front Door [2] [1] Lock Actuator [1] Lock [2] Unlock 0.3 B

3 C507

0.5 B

S501 See Ground Dis- tribution

E201

E L E C T R I C A L

Central Locking (Japan) Z113 Central Locking Control Unit

6 C225

0.5 YK

6 C602

Not used

4 5 C607

M122 Right Front Door [1] [2] Lock Actuator [1] Lock [2] Unlock 0.3 B

3 C607

0.5 B

S601 See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L
