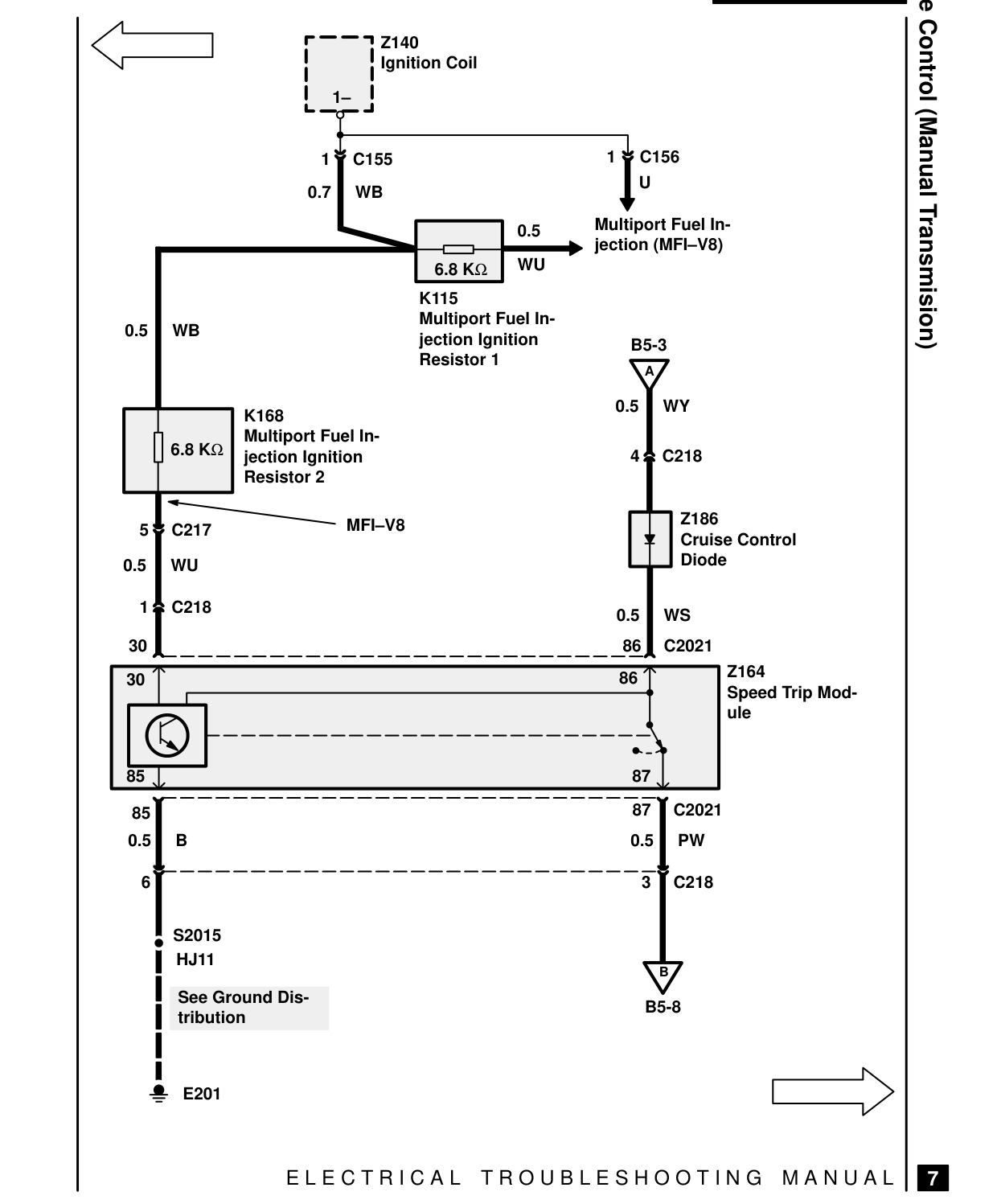

Cruise control – circuit diagram

CRUISE CONTROL – CIRCUIT DIAGRAM

Z140 Ignition Coil

1-

1 C155

0.7 WB

6.8 K Ω

K115 Multiport Fuel In- 0.5 WB jection Ignition Resistor 1

K168 Multiport Fuel In-

6.8 K Ω

jection Ignition Resistor 2

MFI-V8 5 C217

0.5 WU

1 C218

30

30

85

85 0.5 B

6

S2015 HJ11

See Ground Dis- tribution

E201

E L E C T R I C A L

Cruise Control (Manual Transmision) 1 C156 U

Multiport Fuel In- 0.5 jection (MFI-V8) WU

B5-3 A

0.5 WY

4 C218

Z186 Cruise Control Diode

0.5 WS 86 C2021 Z164 86 Speed Trip Mod- ule

87

87 C2021 0.5 PW

3 C218

B

B5-8

T R O U B L E S H O O T I N G M A N U A L

7
