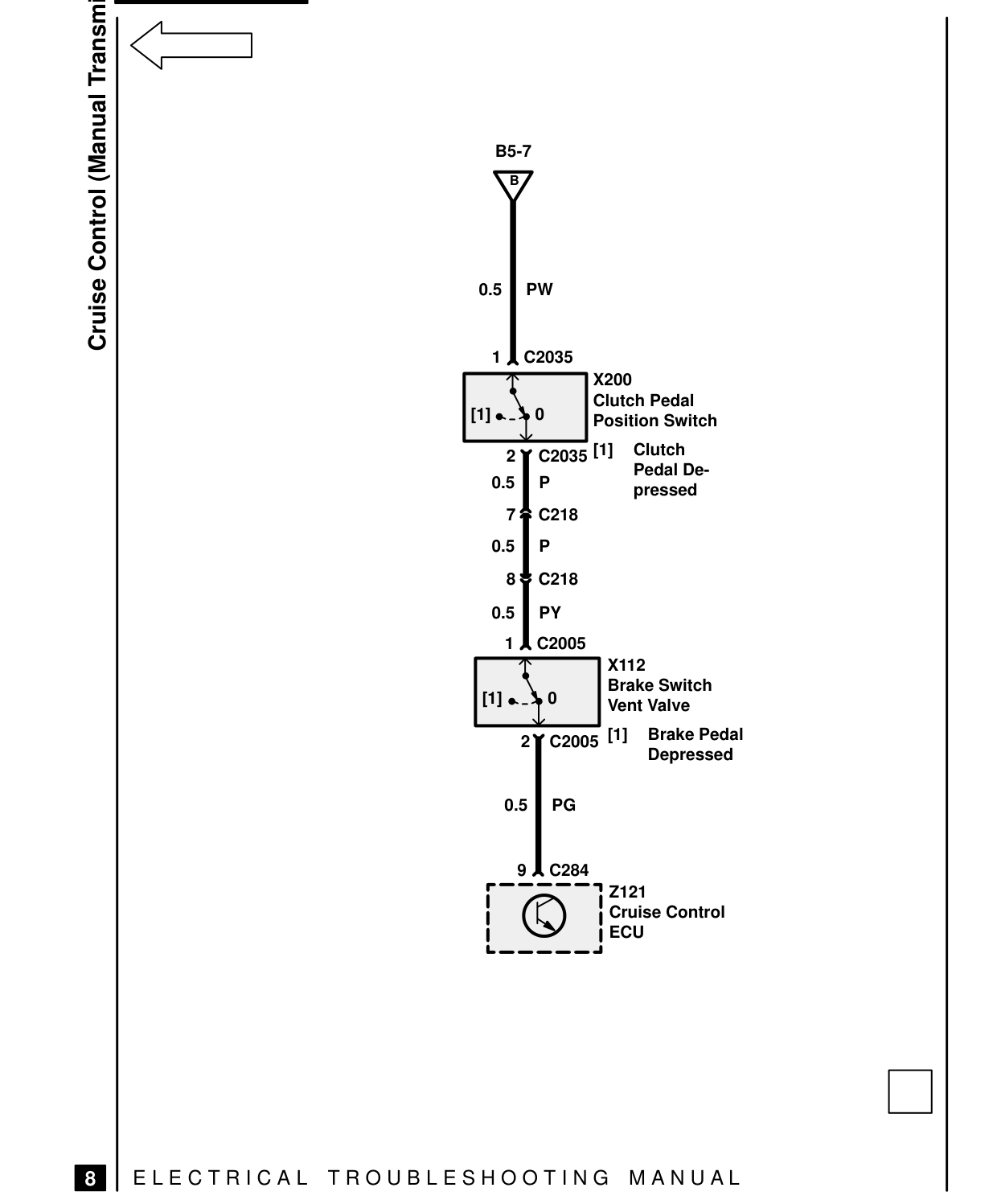

CRUISE CONTROL – CIRCUIT DIAGRAM

Cruise Control (Manual Transmision)

E L E C T R I C A L T R O U B L E S H O O T I N G

8

B5-7 B

0.5 PW

1 C2035 X200 Clutch Pedal [1] 0 Position Switch [1] Clutch 2 C2035 Pedal De- 0.5 P pressed 7 C218 0.5 P

8 C218

0.5 PY 1 C2005 X112 Brake Switch [1] 0 Vent Valve [1] Brake Pedal 2 C2005 Depressed

0.5 PG

9 C284 Z121 Cruise Control ECU

M A N U A L
