Radio (Japan)Radio (Japan) – circuit diagram

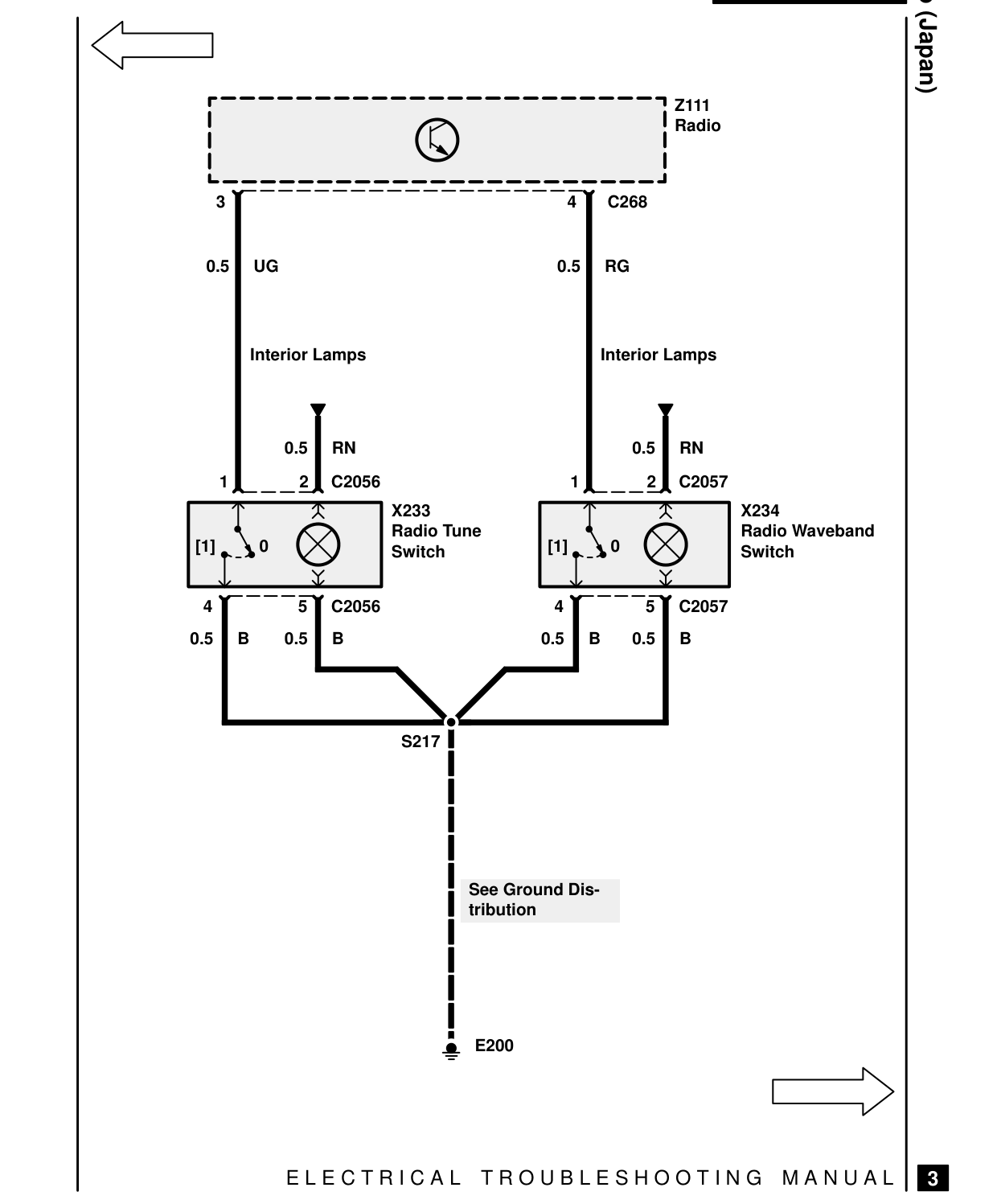

RADIO (JAPAN) – CIRCUIT DIAGRAM

3

0.5 UG

Interior Lamps

0.5 RN

1 2 C2056 X233 Radio Tune [1] 0 Switch

4 C2056 5 0.5 B 0.5 B

S217

See Ground Dis- tribution

E L E C T R I C A L

Radio (Japan) Z111 Radio

4 C268

0.5 RG

Interior Lamps

0.5 RN

1 2 C2057 X234 Radio Waveband [1] 0 Switch

4 C2057 5 0.5 B 0.5 B

E200

T R O U B L E S H O O T I N G M A N U A L
