Radio (Japan)Radio (Japan) – circuit diagram

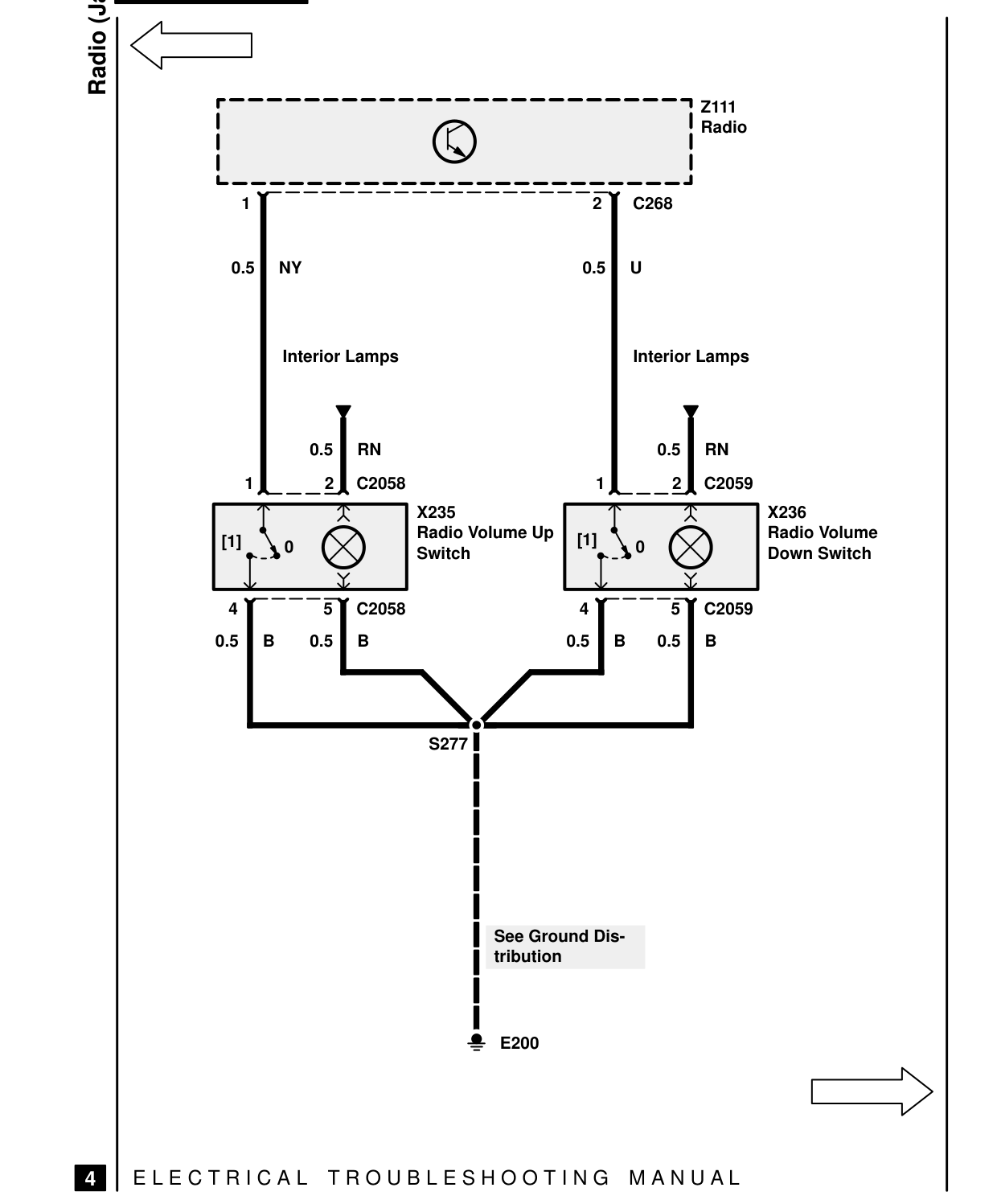

RADIO (JAPAN) – CIRCUIT DIAGRAM

Radio (Japan)

1

0.5 NY

Interior Lamps

0.5 RN

C2058 1 2 X235 Radio Volume Up [1] 0 Switch

5 4 C2058 0.5 B 0.5 B

S277

E L E C T R I C A L T R O U B L E S H O O T I N G

4

Z111 Radio

2 C268

0.5 U

Interior Lamps

0.5 RN

1 C2059 2 X236 Radio Volume [1] 0 Down Switch

5 4 C2059 0.5 B 0.5 B

See Ground Dis- tribution

E200

M A N U A L

14 Electrical
