Trailer auxiliary socket – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Trailer auxiliary socket – circuit diagram

Trailer auxiliary socketTrailer auxiliary socket – circuit diagram

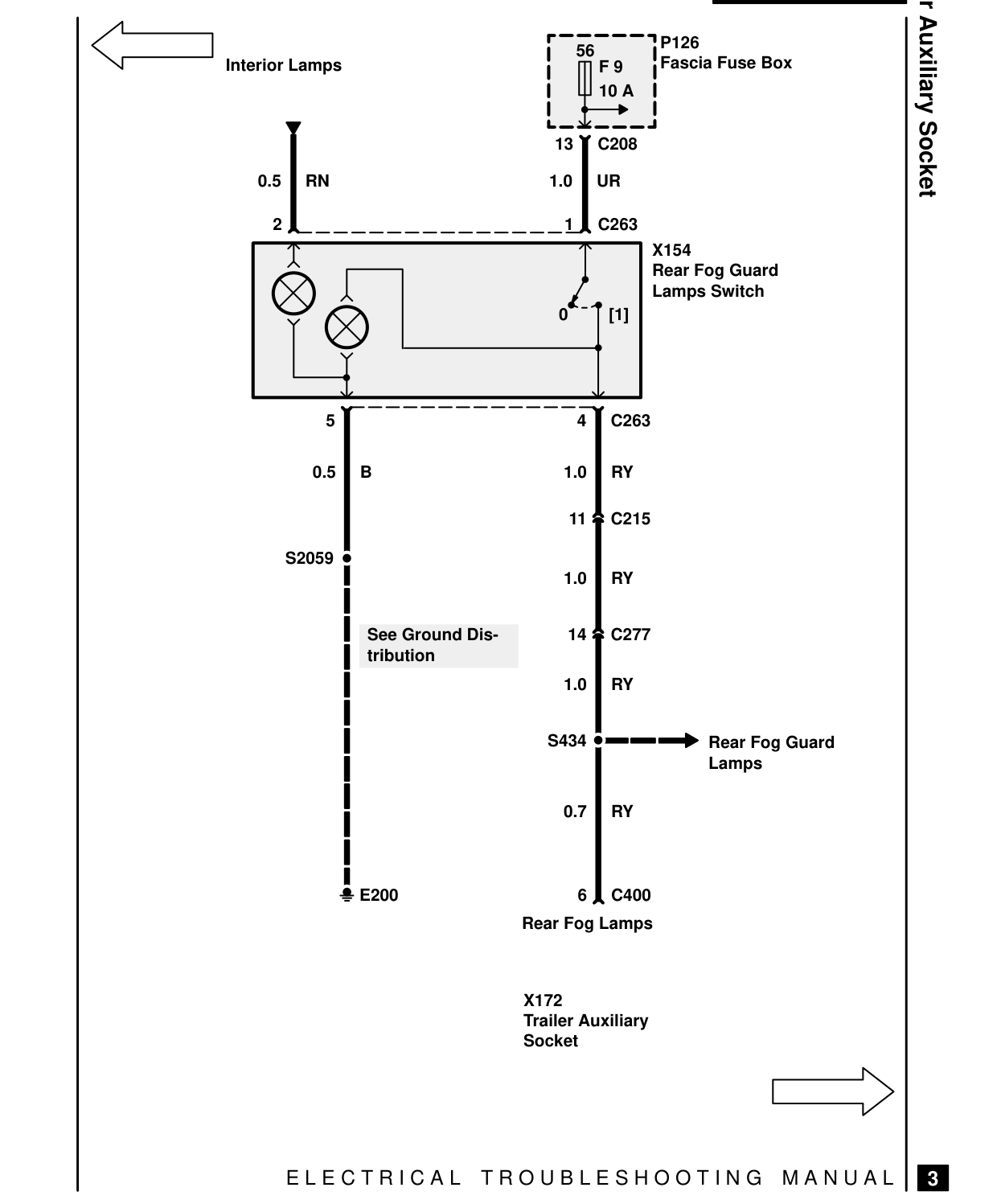

TRAILER AUXILIARY SOCKET – CIRCUIT DIAGRAM

Interior Lamps

0.5 RN

2

5

0.5 B

S2059

See Ground Dis- tribution

E200

E L E C T R I C A L

Trailer Auxiliary Socket P126 56 Fascia Fuse Box F 9 10 A

13 C208

1.0 UR

1 C263 X154 Rear Fog Guard Lamps Switch 0 [1]

4 C263

1.0 RY

11 C215

1.0 RY

14 C277

1.0 RY

S434 Rear Fog Guard Lamps

0.7 RY

6 C400 Rear Fog Lamps

X172 Trailer Auxiliary Socket

T R O U B L E S H O O T I N G M A N U A L

3

36 General
