Discovery II
DOORS
76-1-4
REPAIRS
Refit

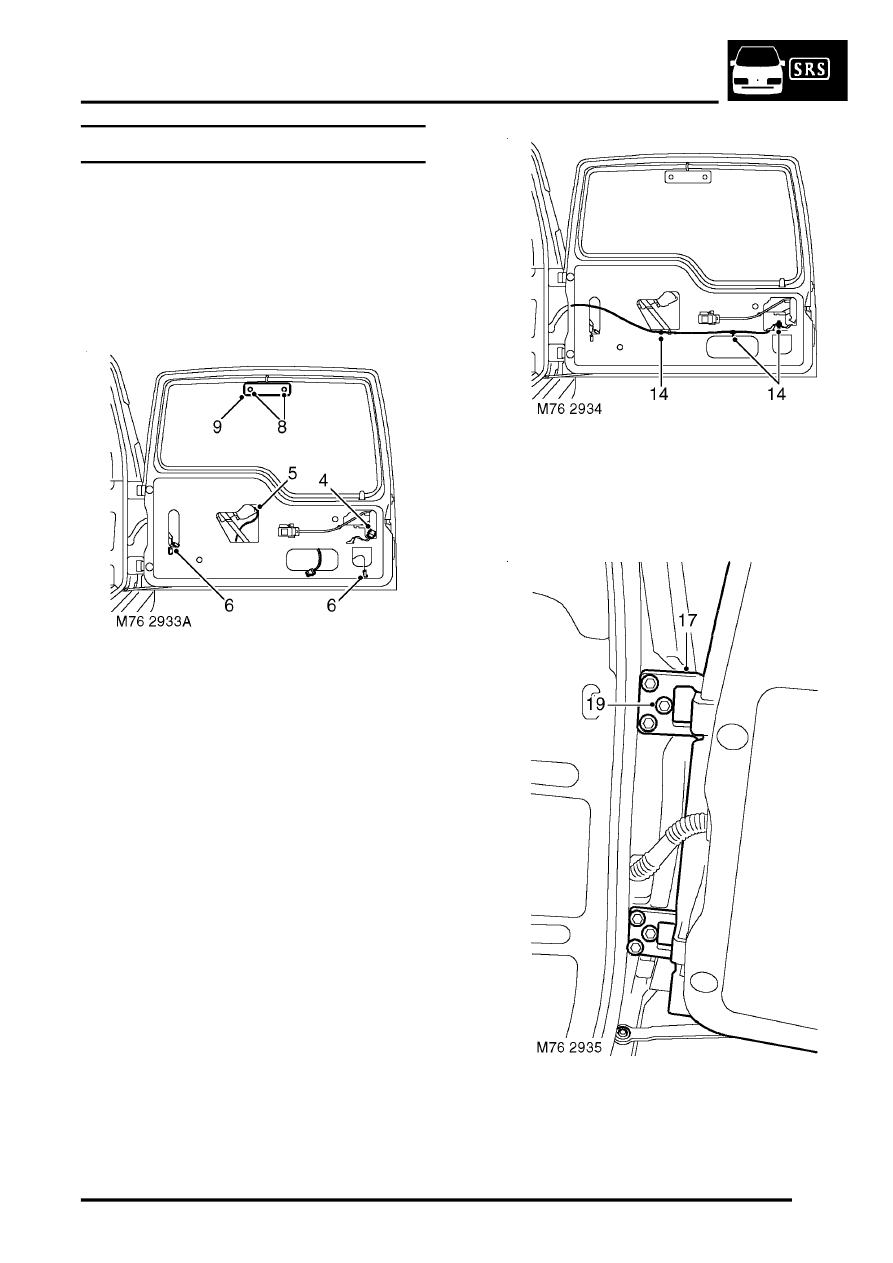

1. Support the tail door on a jack, using a block of
wood to protect the door.
2. With assistance position door. Fit securing
bolts but do not tighten at this stage.
3. Fit washer and spring clip securing check strap
to aperture.
4. Adjust position of tail door in relation to
aperture, ensuring gaps around all 4 edges
are consistent, and door closes cleanly onto
dove tail.
5. When tail door is correctly adjusted, tighten tail
door hinge bolts to 34 Nm (25 lbf.ft).
6. Feed harness and washer tube through outer
edge of door and connect harness sleeve to
door.
7. Secure harness to tail door with clips.
8. Connect washer tube to rear of wiper arm.
9. Remove tape from draw string and secure to
CHMSL wires.
10. Draw wires through tail door and connect
Lucars to CHMSL.
11. Fit CHMSL cover and secure with screws.
12. Connect multiplug of number plate lamp.
13. Connect Lucars to HRW.
14. Connect multiplug to rear wiper motor.
15. Connect multiplug to door latch.
16. Fit water shedder to door.
17. Fit tail door trim casing.
DOORS, REPAIRS, Trim casing - tail
18. Fit spare wheel to tail door.
