REPAIRS

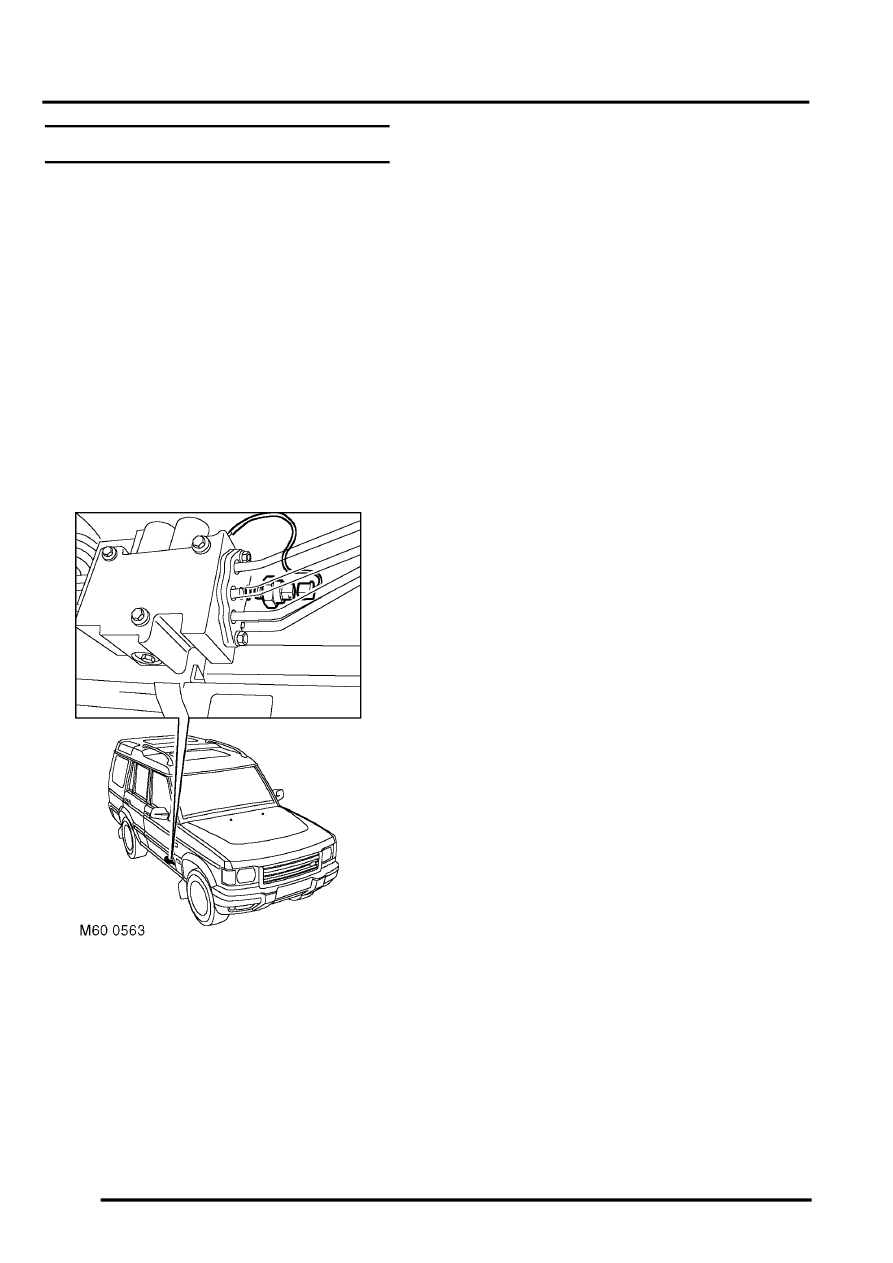

Pressure transducer - ACE
$% 60.60.22
CAUTION: The ACE hydraulic system is
extremely sensitive to the ingress of dirt or
debris. The smallest amount could render the
system unserviceable. It is imperative that the
following precautions are taken.
l
ACE components are thoroughly cleaned
externally before work commences;
l
all opened pipe and module ports are
capped immediately;
l
all fluid is stored in and administered
through clean containers.
Remove
1. Raise vehicle on a ramp.
2. Disconnect multiplug from transducer.
3. Position container to collect fluid spillage.
4. Remove pressure transducer and discard 'O'
ring.
CAUTION: Always fit plugs to open
connections to prevent contamination.
Refit
1. Ensure pressure transducer and port in valve
block is clean.
2. Fit new 'O' ring to pressure transducer. Fit and
tighten pressure transducer to 20 Nm (15
lbf.ft).
3. Connect multiplug to pressure transducer.
4. Renew ACE high pressure filter.
5. Lower vehicle.
