Discovery II
LIGHTING
86-2-10 REPAIRS

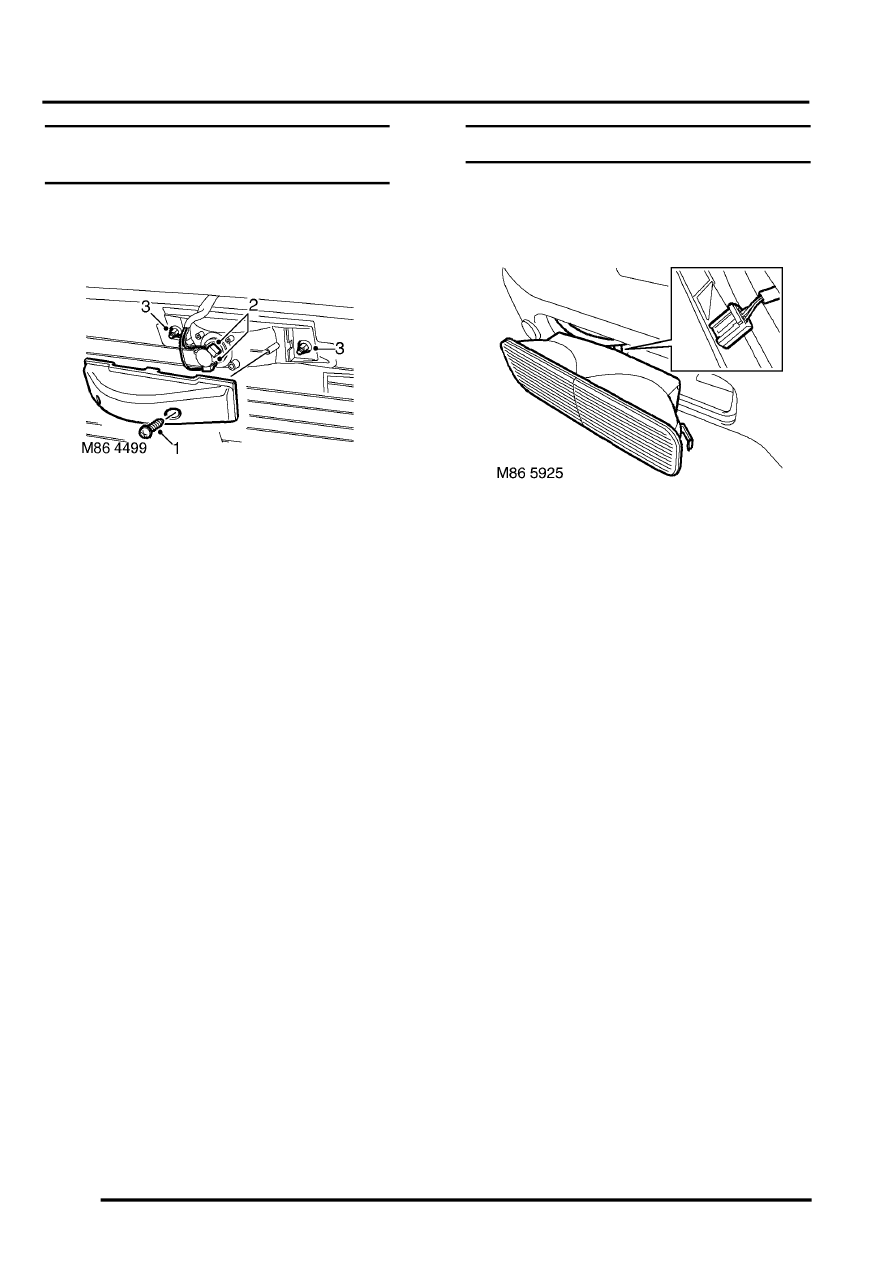

Lamp - stop - centre high mounted
(CHMSL)
$% 86.41.32
Remove
1. Remove 2 screws securing lamp cover and
remove cover.
2. Disconnect Lucar connectors from lamp bulb
holder.
3. Remove 2 nuts securing lamp to rear screen
and remove lamp.
Refit
1. Fit new lamp to screen and secure with nuts.
2. Connect Lucar connectors to lamp bulb holder.
3. Fit lamp cover to lamp and secure with screws.
Lamp - tail/flasher - bumper
$% 86.41.42
Remove
1. Release tail lamp from bumper.
2. Disconnect multiplug and remove lamp.
Refit
1. Position tail lamp, connect multiplug and
secure lamp to bumper.
