Discovery II
MANUAL GEARBOX - R380
37-42
OVERHAUL
Gear - 5th gear set
$% 37.20.36
Disassembly
1. Remove 5th gear - layshaft.
OVERHAUL, 5th gear - layshaft.

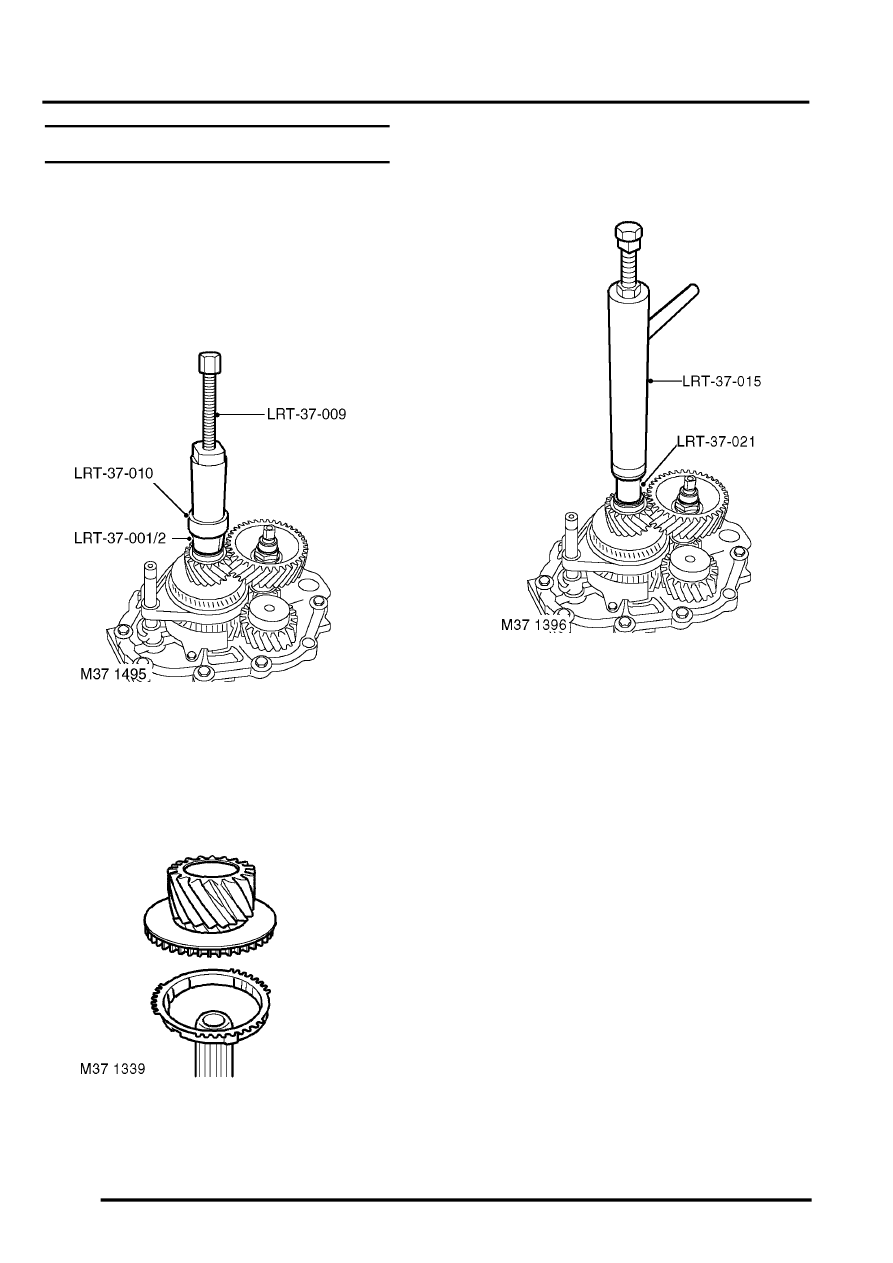

2. Using tool LRT-37-001/2, LRT-37-009 and
LRT-37-010, remove output shaft support
bearing track.
3. Remove 5th gear and baulk ring from output
shaft.
Reassembly
1. Clean gears and shafts.
2. Position 5th gear and baulk ring to output shaft.
3. Using tool LRT-37-015 and LRT-37-021, fit
support bearing track to output shaft.
4. Fit 5th gear - layshaft.
