Modulator - ABS (page 2 of 2)

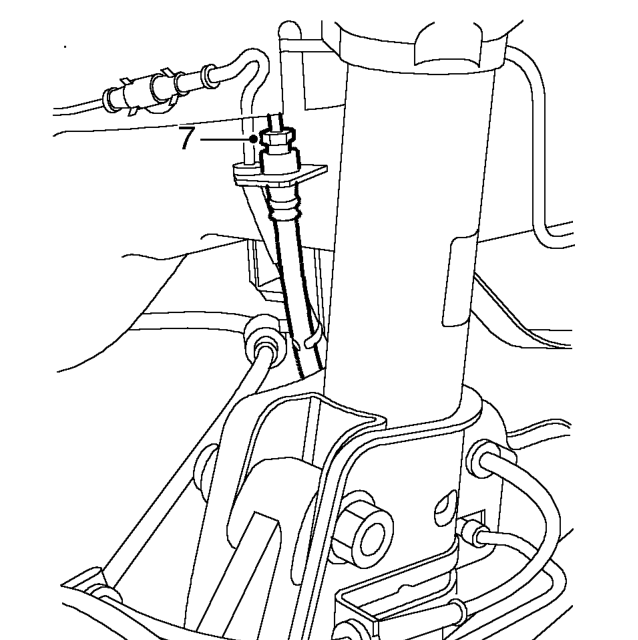

7. Disconnect RH front brake pipe union at hose connection.

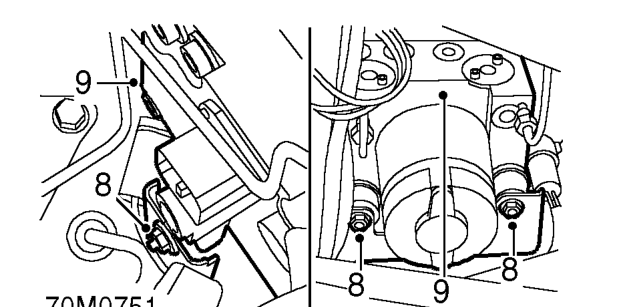

8. Loosen 3 nuts securing modulator assembly to mounting bracket.
9. Release and remove modulator from mounting bracket.

Do not carry out further dismantling if component is removed for access only.

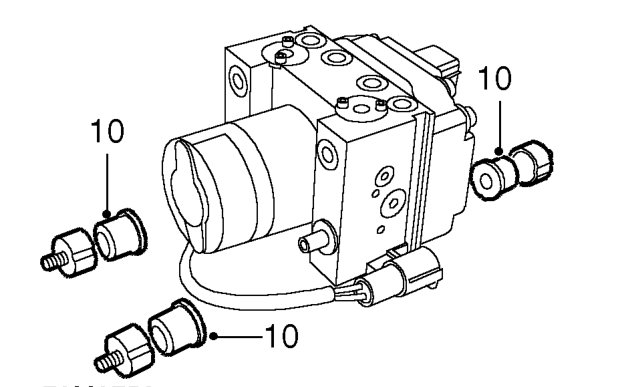

10. Remove 3 mounting rubbers from modulator.
11. Fit mounting rubbers to replacement modulator.

Refit

1. Fit modulator assembly to mounting bracket and tighten nuts to 9 Nm.
2. Clean brake pipe unions.
3. Position brake pipes to PCRV and tighten unions to 14 Nm.
4. Connect brake pipe unions to modulator, ensuring pipes are connected to their correct ports.
5. Tighten unions to 14 Nm.
6. Connect pipe union to RH hose connector and tighten to 14 Nm.
7. Connect multiplugs to modulator.
8. Fit RH headlamp. See ELECTRICAL, Repairs.
9. Bleed brakes. See Adjustments.
10. To ensure correct operation, the system MUST be tested using TestBook.
11. Remove stand(s) and lower vehicle.
