Land Rover Freelander Workshop Manual (1998-2000)19 · Steering
19 · Steering & suspension

Lock - steering column (page 2 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
SteeringLock - steering column · page 2 of 3
Diagram

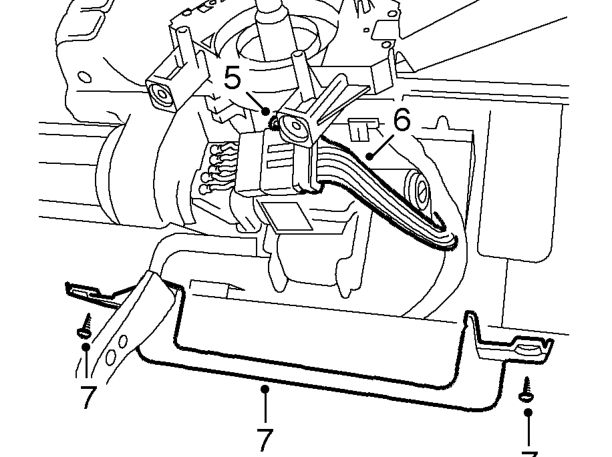

  1. Loosen screw securing switch assembly to steering column and remove switch assembly.
  2. Disconnect multiplug from ignition switch.
  3. Remove 2 screws from steering column aperture trim and remove trim.
Remove 2 screws from steering column aperture trim and remove trim.

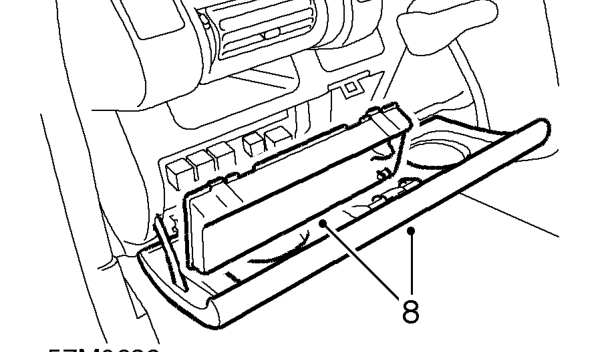

  1. Lower glove box lid and remove fuse box cover.
Lower glove box lid and remove fuse box cover.

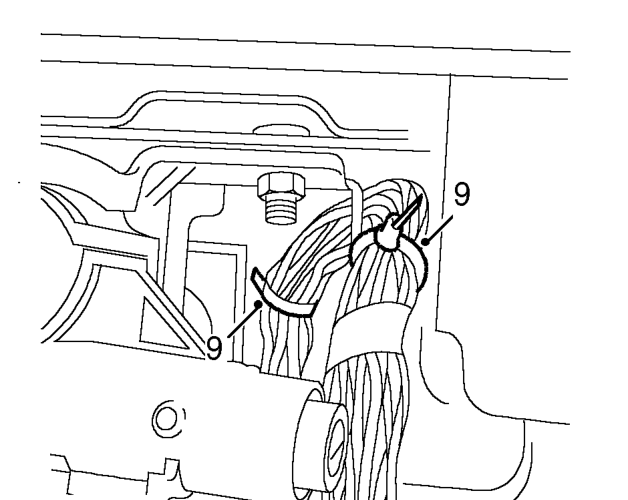

  1. Carefully cut 2 harness clips and release harness from column.
Carefully cut 2 harness clips and release harness from column.

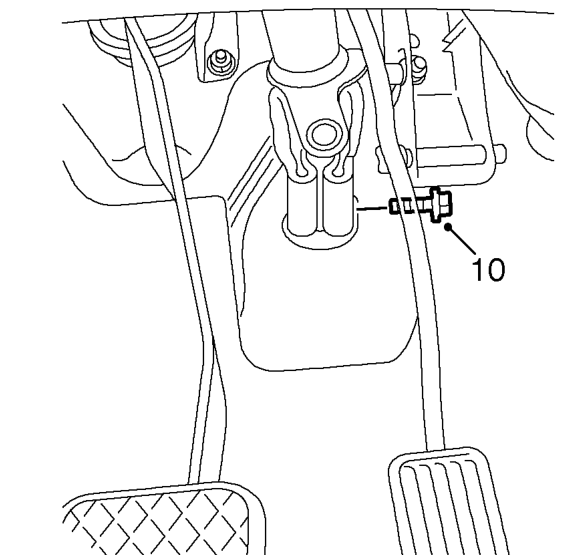

  1. Remove steering column to steering rack clamp bolt, and release column.
