Gear Selector Lever Assembly (Automatic gearbox - Jatco)

Gear Selector Lever Assembly

The gear selector lever assembly comprises a shift lock solenoid, a key interlock mechanism (if fitted), an LED module and a sport/manual switch.

A nylon cast plate provides the location for the selector lever components. The plate is secured to the floor pan with six integral studs and nuts. A rubber boot protects the assembly from dirt and moisture under the vehicle and also isolates vibrations from the lever.

The selector lever is attached to a gimbal mounting which allows gear selection of PRND421 in a forward and backward direction and selection between automatic and sport/manual in a left and right transverse direction. When sport/manual mode is selected, the lever can be moved in a forward or backward direction to select + or - for manual operation.

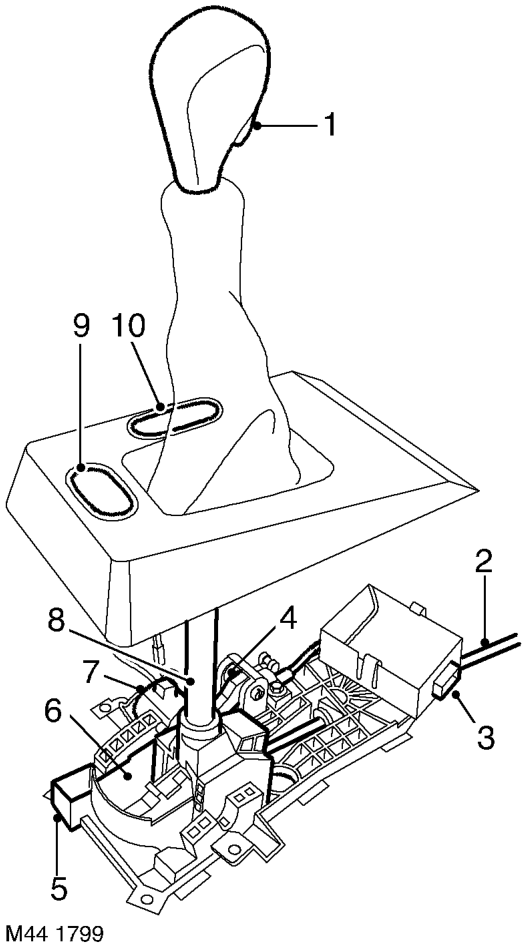

1 Park/Reverse release button 2 Selector cable 3 Mirror fold ECU or ICE remote control interface unit (if fitted - reference only) 4 Key interlock mechanism (selected markets only)

5 Sport/manual switch connector 6 Sport/manual switch 7 Shift interlock solenoid 8 Selector lever 9 HDC switch 10 LED Module
