JATCO Automatic Gearbox - Exploded View (Automatic gearbox - Jatco)
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › JATCO Automatic Gearbox - Exploded View
Automatic gearbox - JatcoJATCO Automatic Gearbox - Exploded View
JATCO Automatic Gearbox - Exploded View

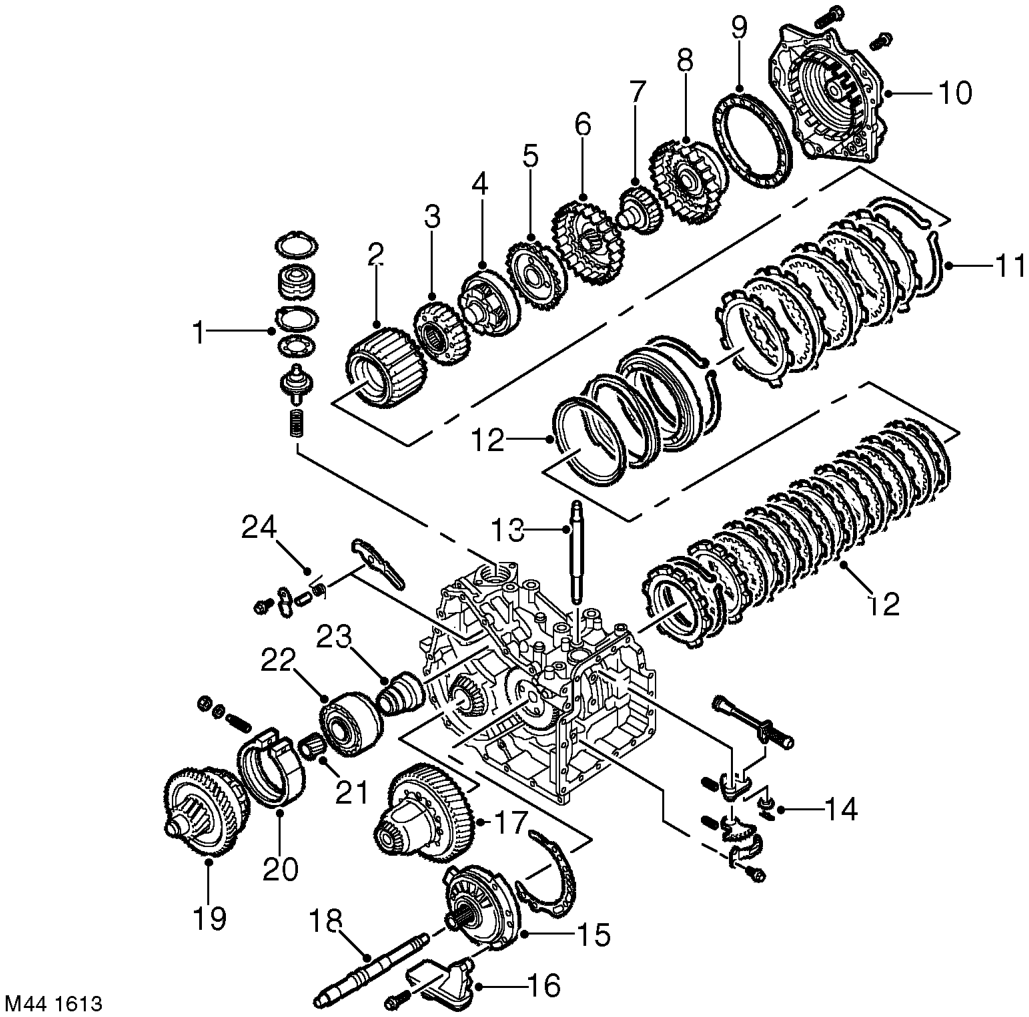

1 Band servo 2 Low clutch 3 Internal gear 4 Rear planetary carrier 5 Front planetary carrier 6 Low clutch hub 7 High clutch hub 8 Reverse and high clutch assembly 9 Return spring 10 Side cover 11 2-4 brake 12 Low and reverse brake
13 Manual shaft 14 Parking component 15 Oil pump 16 Oil strainer 17 Differential gear 18 Input shaft 19 Reduction gear 20 Reduction brake band 21 Sun gear 22 Direct clutch 23 One way clutch inner race 24 Parking mechanism
