Steering Components - K1.8
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › Steering Components - K1.8
SteeringSteering Components - K1.8

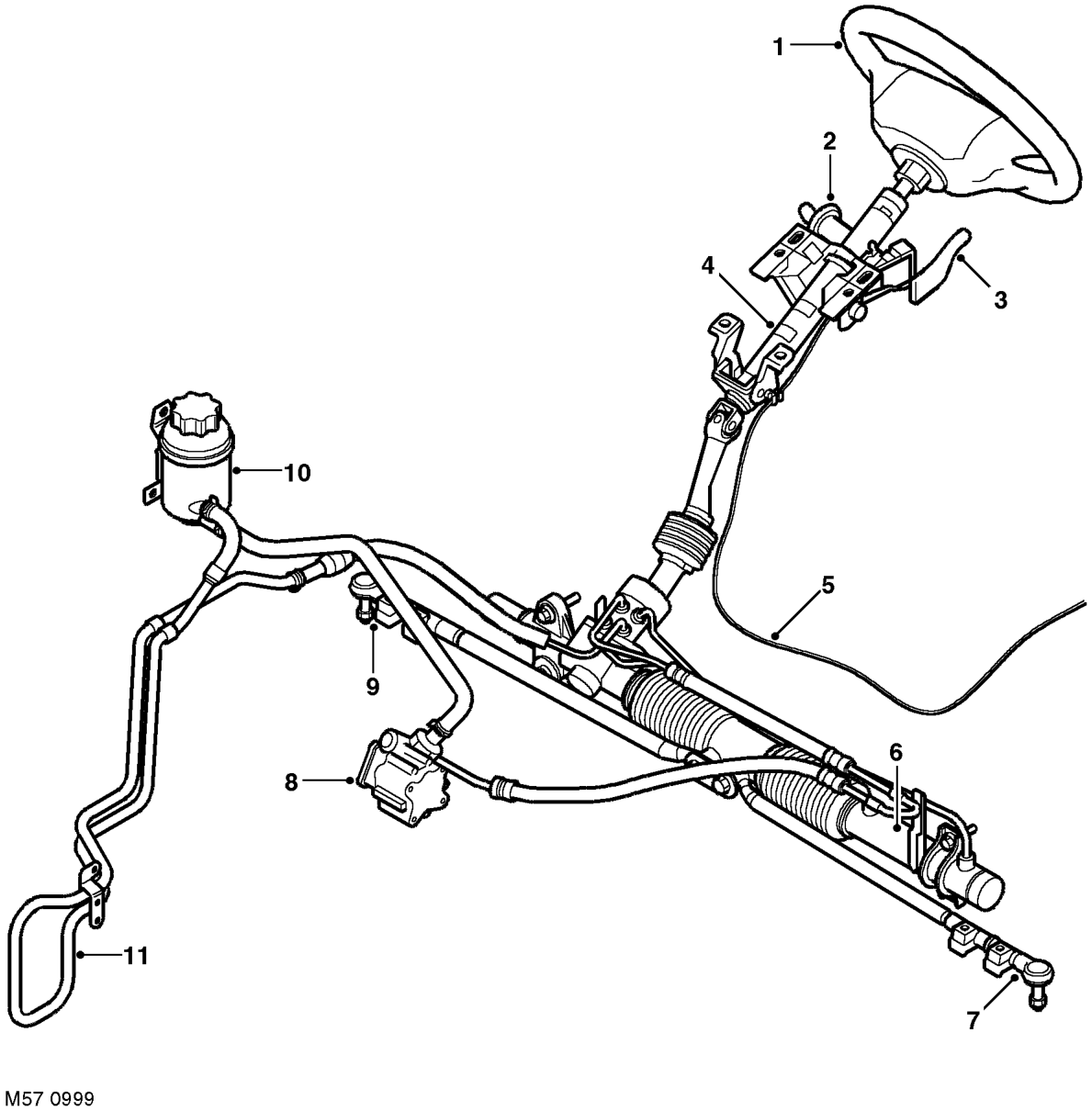

Steering Components - K1.8
RHD shown, LHD similar
1 Steering wheel 2 Ignition switch/column lock assembly 3 Column adjuster 4 Telescopic column 5 Key interlock cable (if fitted) 6 Steering rack
7 LH track rod end 8 PAS pump 9 RH track rod end 10 Reservoir 11 Fluid cooler
