Steering (Steering Rack): Description and operation

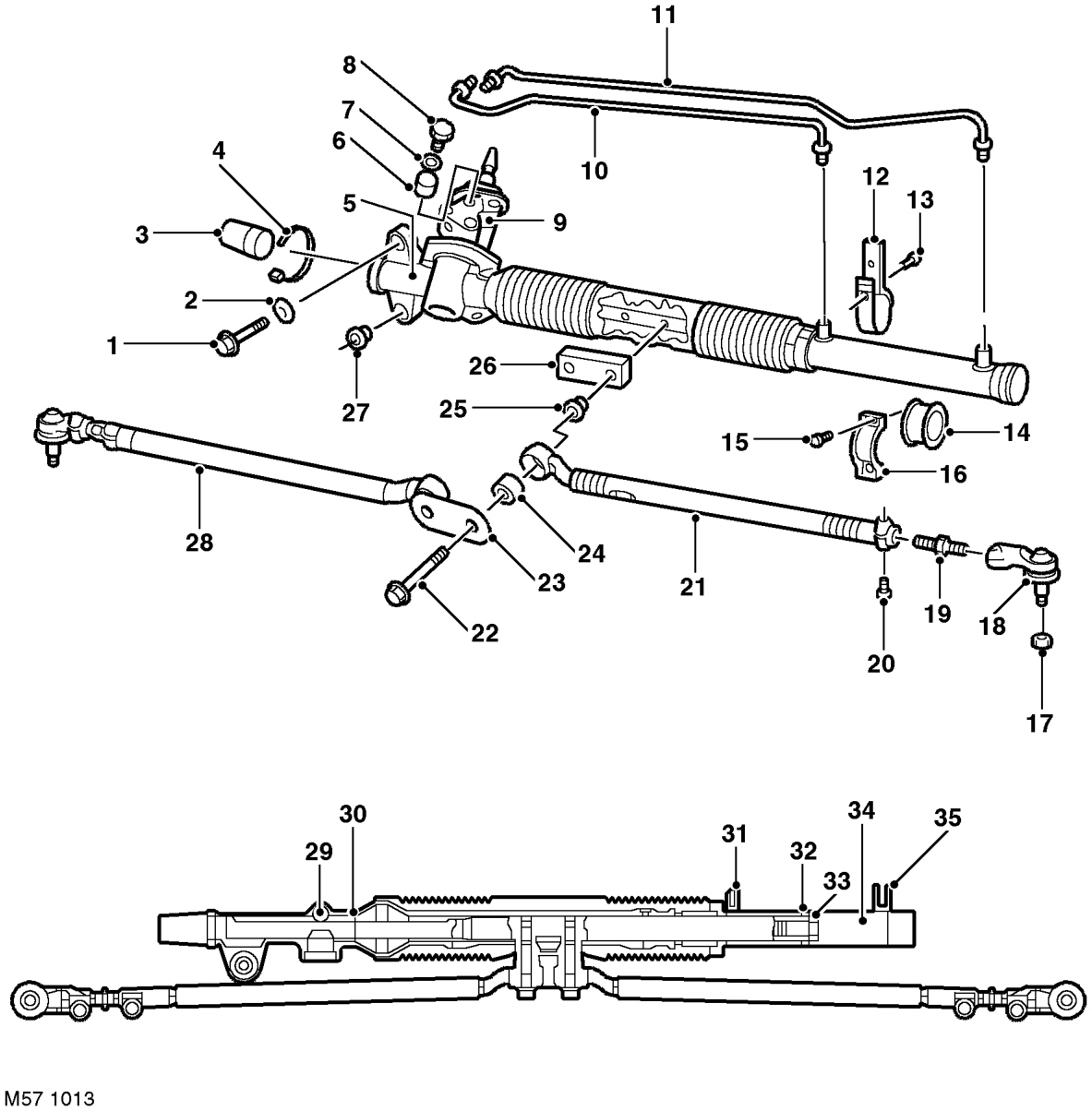

Steering Rack

RHD shown, LHD similar

1 Flanged bolt (2 off) 2 Washer (lower bolt only) 3 Dust cover 4 Tie 5 Steering rack casting 6 Non return valve 7 Seal 8 Adaptor 9 Valve unit 10 Feed pipe (6 mm diameter) 11 Feed pipe (10 mm diameter) 12 Pipe support bracket 13 Bolt 14 Rack mounting cushion 15 Bolt (2 off) 16 Rack mounting bracket 17 Nut (2 off) 18 Track rod end (2 off)

19 Turnbuckle (2 off) 20 Bolt (4 off) 21 Track rod LH 22 Track rod bolt (2 off) 23 Support plate 24 Inner track rod bush (2 off) 25 Spacer (2 off) 26 Slider and bush assembly 27 Mounting bush (2 off) 28 Track rod RH 29 Steering pinion 30 Steering rack 31 Cylinder annulus port 32 Piston seal 33 Piston bolt 34 Cylinder 35 Cylinder full area port
