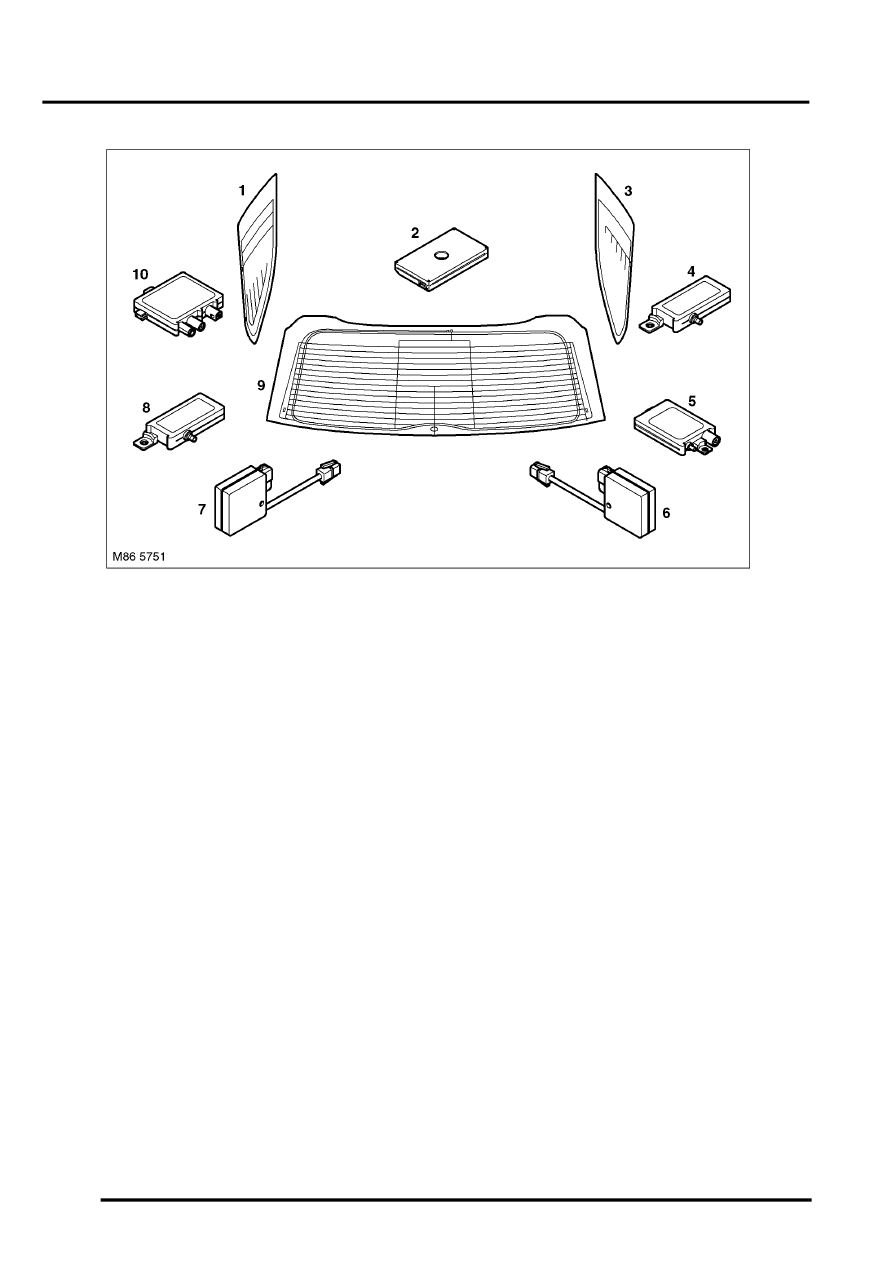

Screen Mounted Aerials
1 Side window television and radio diversity
aerials
2 FM aerial amplifier
3 Side window television aerial
4 Television aerial amplifier
5 Television aerial amplifier with parked heating
6 Suppressor
7 Suppressor
8 Television aerial amplifier
9 Side window FM aerial diversity amplifier
The “RDS radio” system uses the heated rear screen element as the radio antenna. The signal is processed by an
amplifier before being passed through to the head unit. This antenna and amplifier is also used receive and process
signals from the remote handset to lock/unlock and arm/disarm the alarm. Because of this there are two types of
amplifier to accommodate the different frequencies used with the remote in different markets. This standard amplifier
is located in the tailgate at the top left hand corner.
The “RDS Hi Fi” system use a second antenna fitted in the left hand window of the luggage compartment to achieve
the diversity function. The amplifier for this antenna is located left hand side of the luggage compartment behind the
trim panel near the wheel arch.
