ENTERTAINMENT AND INFORMATION SYSTEMS

DESCRIPTION AND OPERATION 86-8-27

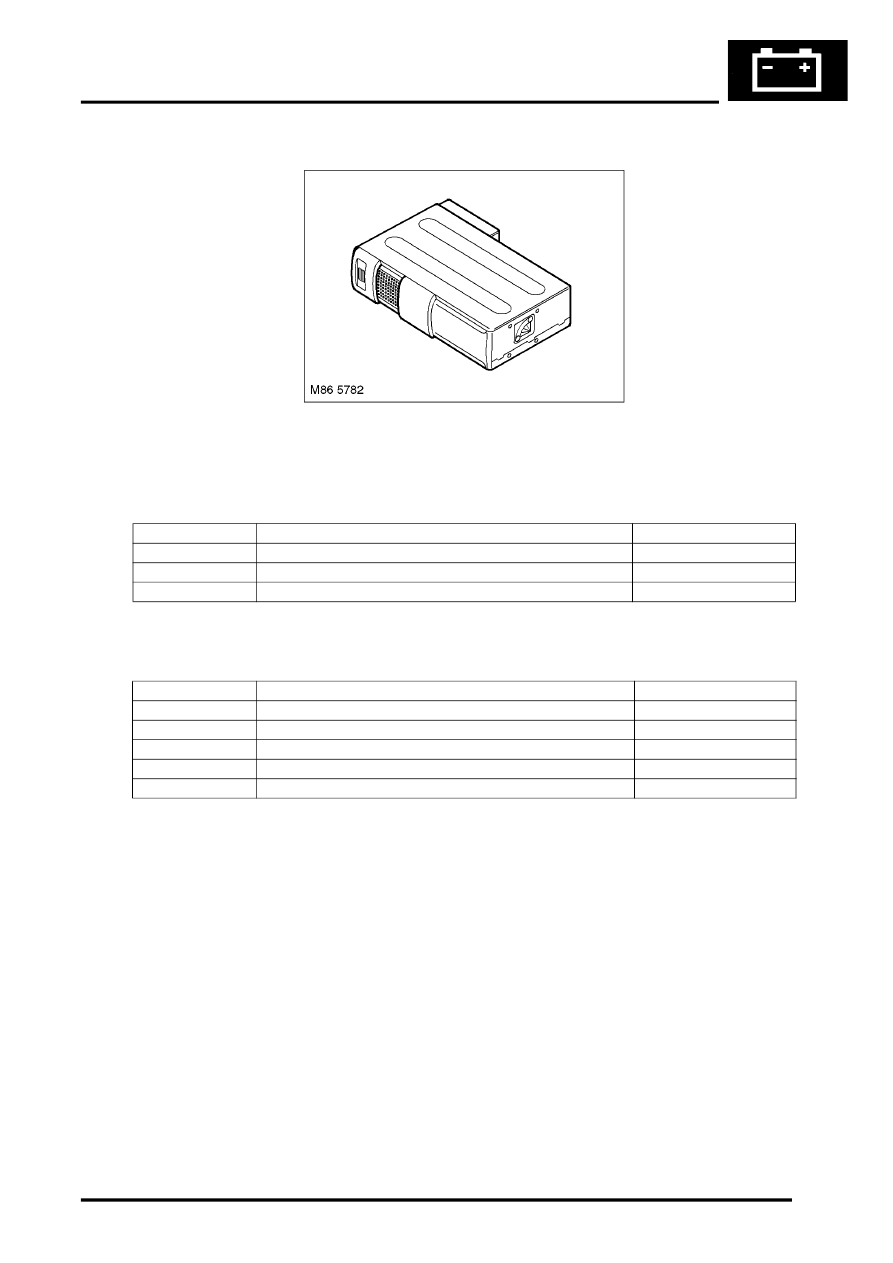

CD Autochanger

Both systems are capable of controlling a six disc CD autochanger. The autochanger is controlled on the I/K Bus and
is located at the rear of the passenger compartment glove box.

CD Autochanger Harness Connector C0941 Pin Details

CD Autochanger Harness Connector C1353 Pin Details

Pin No.

Description

Input/Output

1

Ground

–

2

Permanent power supply from battery

Input

3

I bus

Input/Output

Pin No.

Description

Input/Output

1

Left audio positive

Output

2

Left and right audio negative

Output

3

Not used

–

4

Right audio positive

Output

5 and 6

Not used

–
