L322 Range Rover Service Procedures
WIPERS AND WASHERS
REPAIRS
84-9

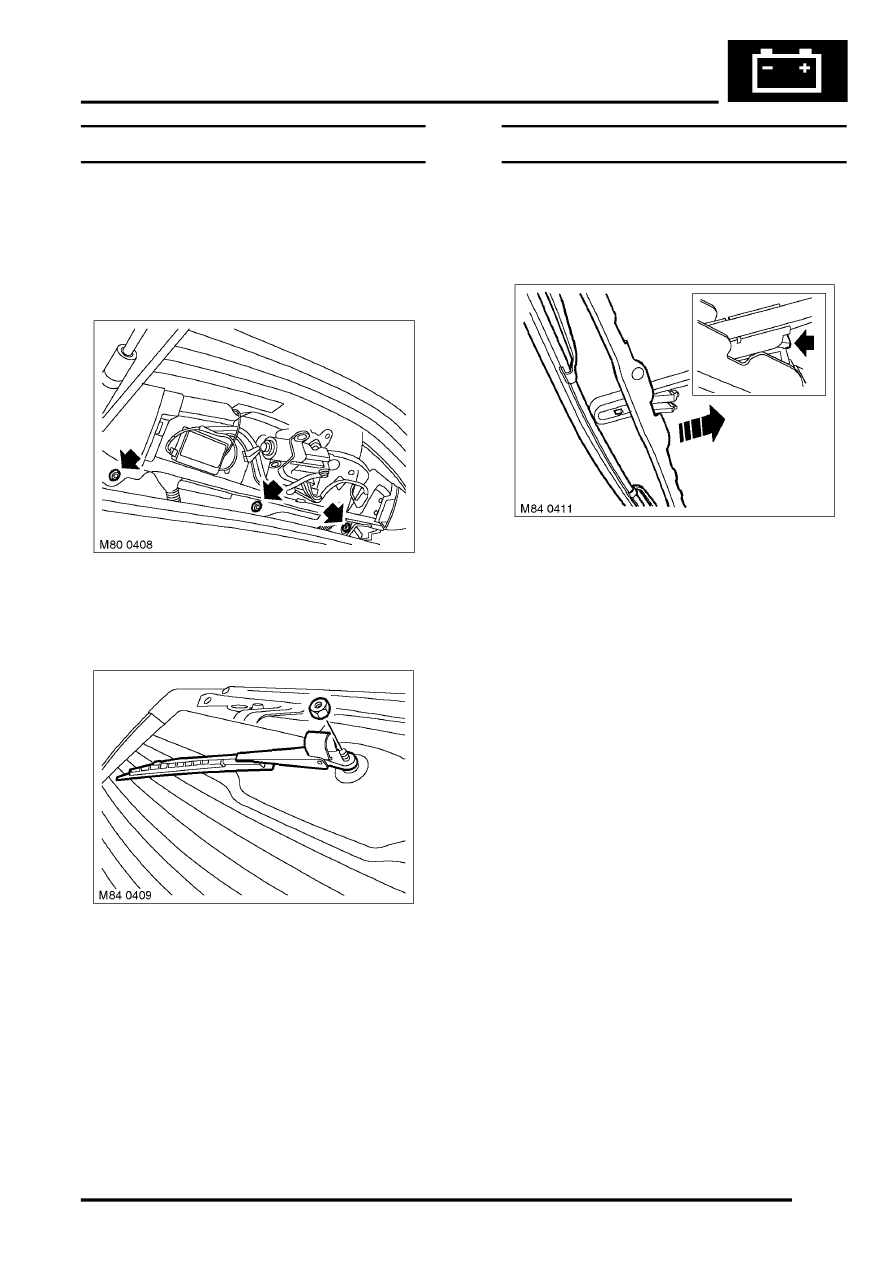

Arm - wiper - tailgate
$% 84.35.01
Remove
1. Remove upper tailgate finisher.
DOORS, REPAIRS, Trim finisher -
2. Remove 3 bolts securing spoiler to tailgate.
3. Close tailgate.
4. Move spoiler aside for access.
5. Raise nut cover on wiper arm and remove nut.
6. Remove rear wiper arm.
Refit
1. Fit wiper arm to spindle, align blade to glass
and tighten nut to 13 Nm (10 lbf.ft).
2. Close nut cover.
3. Fit and secure spoiler to tailgate, tighten bolts
to 10 Nm (7 lbf.ft).
4. Fit upper tailgate finisher.
DOORS, REPAIRS, Trim finisher -
Blade - wiper - tailgate
$% 84.35.02
Remove
1. Position rear wiper arm for access.
2. Lift wiper arm from screen.
3. Release wiper arm lock.
4. Release wiper blade from arm.
Refit
1. Position new blade to wiper arm.
2. Push blade into engagement with arm, and
check blade is retained.
3. Lower arm onto screen.
4. Return wiper to park position.
