L322 Range Rover Service Procedures
WIPERS AND WASHERS
REPAIRS
84-5

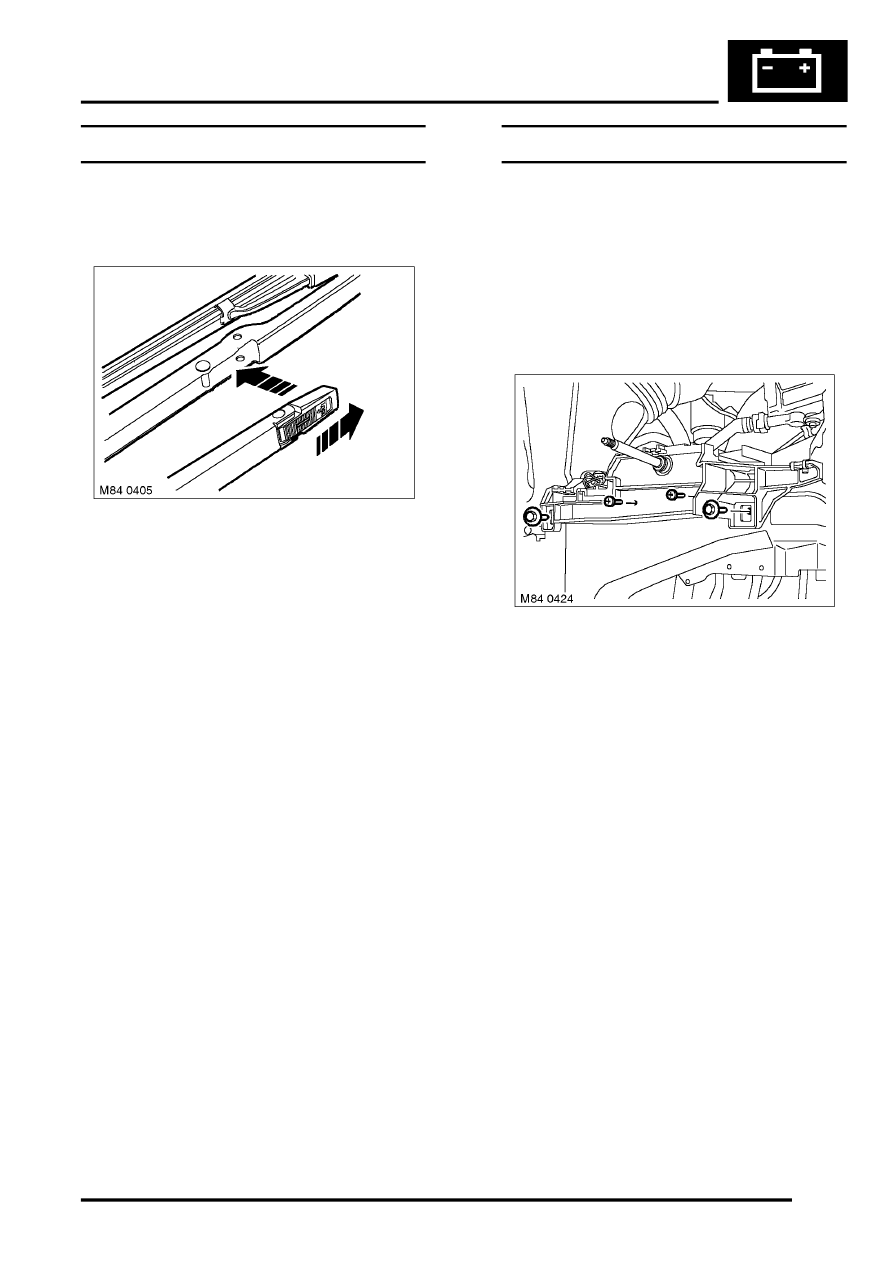

Blade - wiper - front screen
$% 84.15.06
Remove
1. Lift wiper arm from screen.
2. Release wiper arm lock.
3. Release wiper blade from arm.
Refit
1. Position new blade to wiper arm.
2. Push blade into engagement with arm, and
check blade is retained.
3. Lower arm onto screen.
Motor & linkage - wiper
$% 84.15.11
Remove
1. Remove windscreen lower finisher.
2. Remove air intake plenum.
3. Disconnect multiplug from wiper motor.
4. Remove 5 Torx bolts securing wiper linkage
and remove assembly.
Refit
1. Position wiper motor assembly, fit bolts and
tighten to 10 Nm (7 lbf.ft).
2. Connect multiplug to wiper motor.
3. Fit air intake plenum.
4. Fit windscreen finisher.
