L322 Range Rover Service Procedures

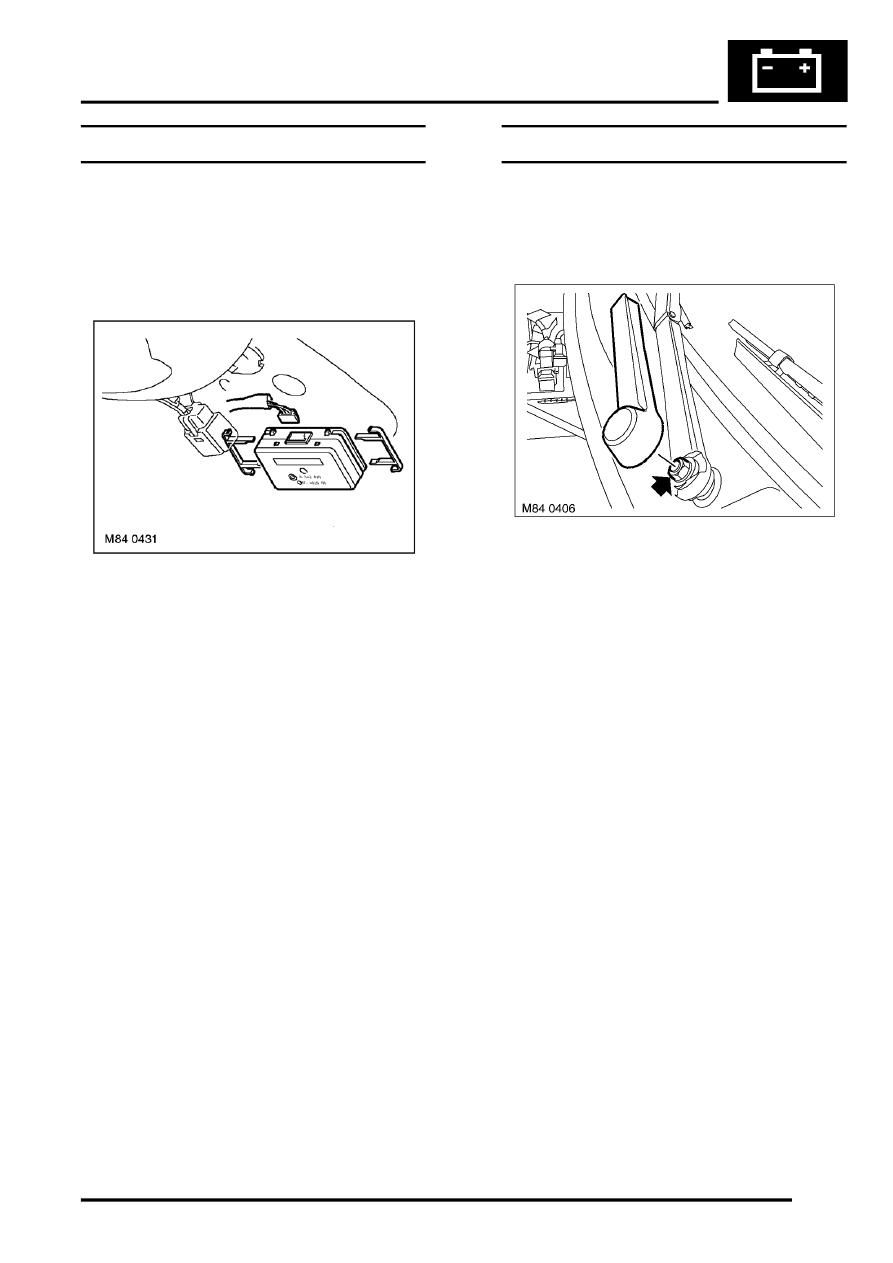

WIPERS AND WASHERS
84-4
REPAIRS

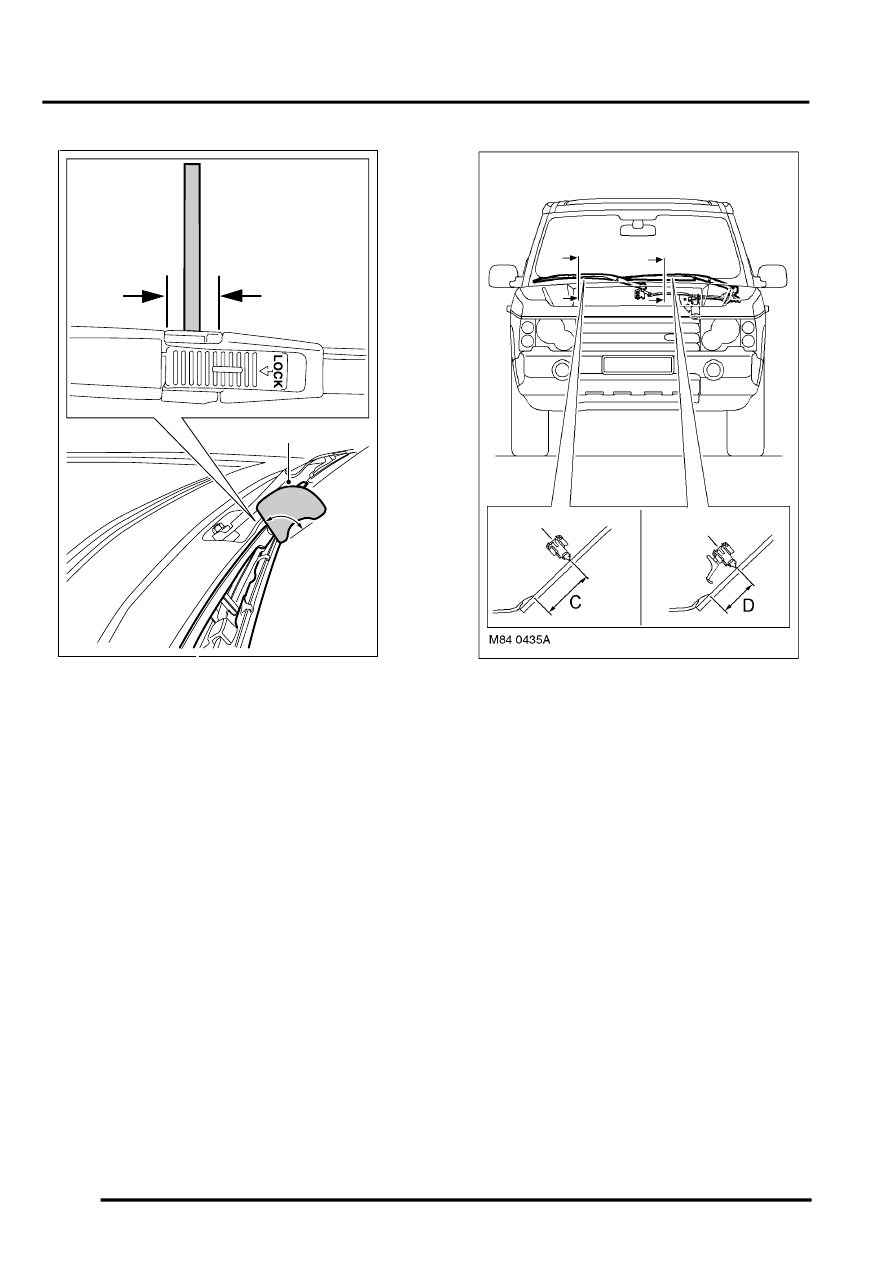

2. Fit wiper arm assembly to spindle, fit and finger
tighten nut. Position LRT-84-001 to windscreen
between points 'A' and 'B' on wiper arm, align
face of wiper arm to 86
°
.
3. While maintaining the 86
°
angle, set the
respective wiper arms to the dimensions
shown. Passenger side 'C' = 58 mm (2.283).
Drivers side 'D' = 40.5 mm (1.594).
4. Measurement must be taken from lip of the
plenum glass seal to the lip of the wiper blade
adjacent to wiper arm/blade pivot.
5. Tighten wiper arm nut to 34 Nm (25 lbf.ft).
6. Fit nut cover.
7. Close bonnet.
86o
LRT-84-001
A
B
M84 0436
