LT230 Transfer Box Overhaul: Differential Page 67
TRANSFER BOX
OVERHAUL
29

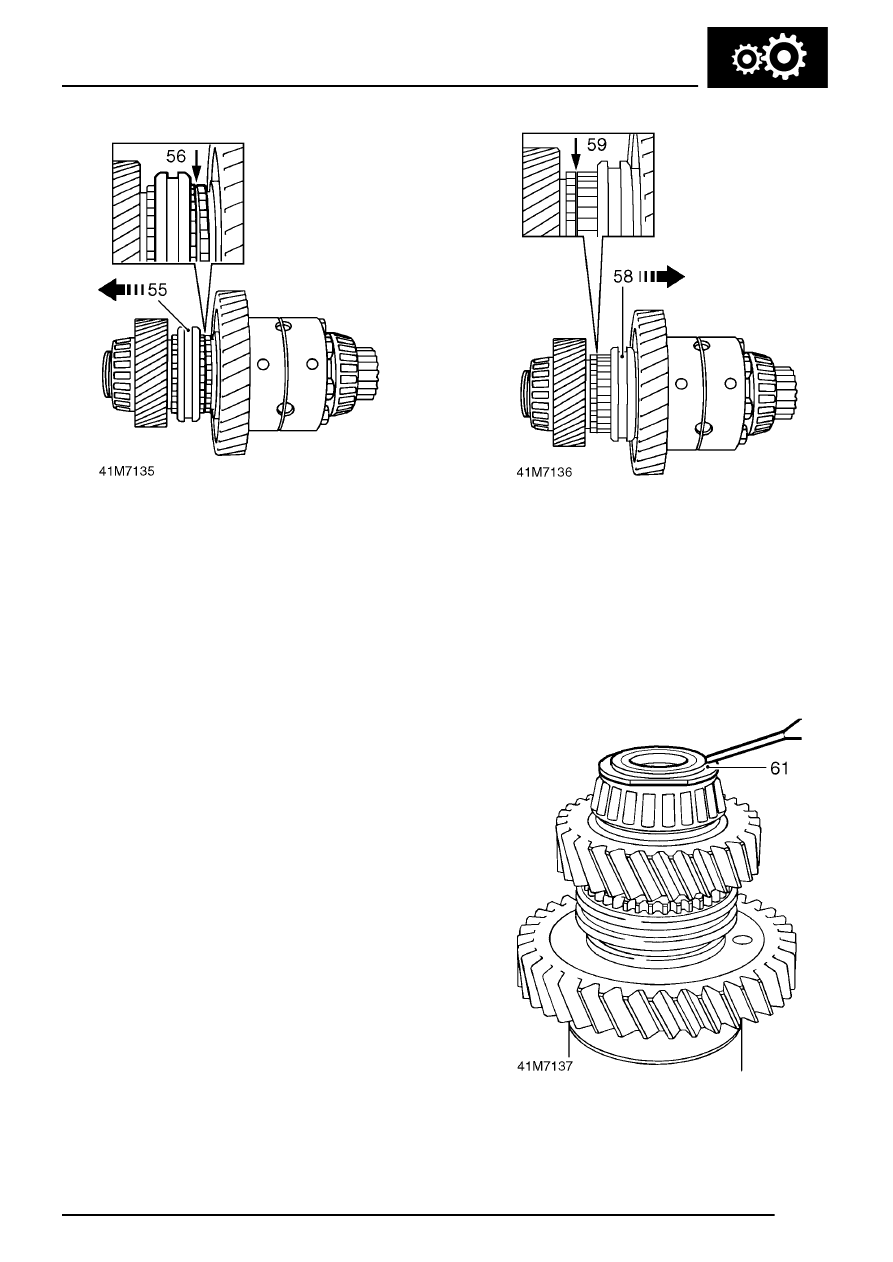

55. Slide high/low selector sleeve and hub away
from low range gear.
56. Using feeler gauges, determine clearance
between low range gear and high/low hub:
Clearance = 0.05 to 0.15 mm (0.002 to 0.006
in)
57. If clearance is not as specified, fit a new low
range gear and high/low hub and re-check.
58. Slide high/low selector sleeve and hub away
from high range gear.
59. Using feeler gauges, determine clearance
between high range gear and high/low hub:
Clearance = 0.05 to 0.15 mm (0.002 to 0.006
in)
60. If clearance is not as specified, fit new high
range gear and high/low hub and re-check.
61. Using a round nosed punch, stake collar of nut
into recess in differential shaft.
