INTERCOOLER (page 2 of 2)

Make

Land Rover

Model

Range Rover P38

Section

REPAIR

19 - FUEL SYSTEM - BMW DIESELINTERCOOLER · page 2 of 2

BMW DIESEL

15

REPAIR

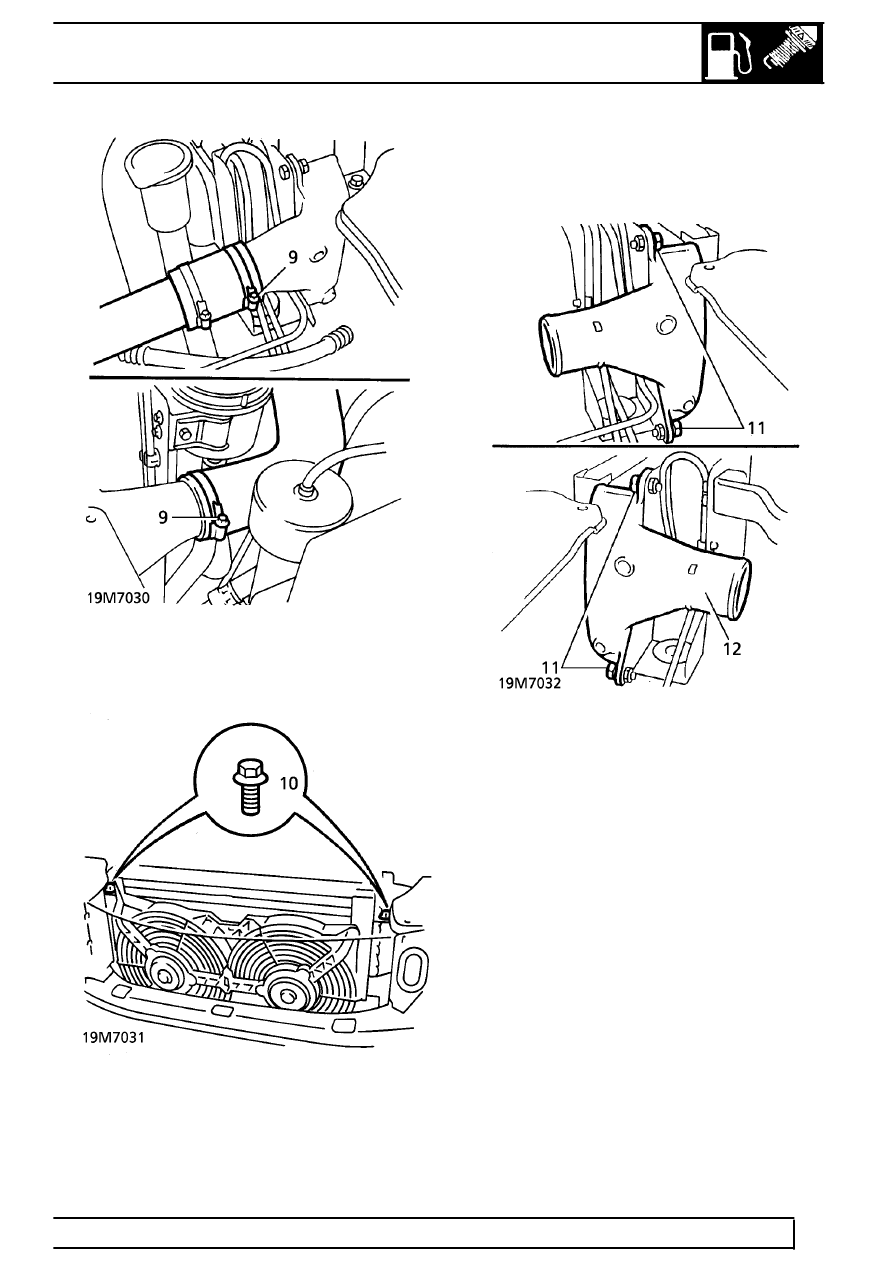

9. Disconnect hoses from intercooler.

10. Remove 2 bolts securing intercooler to air

conditioning condenser.

11. Remove 4 bolts securing intercooler to radiator

bracket.

12. Remove intercooler.

Refit

13. Reverse removal procedure.
