Range Rover P38
ELECTRONIC AIR SUSPENSION
5
REPAIR
AIR COMPRESSOR
Service repair no - 60.50.10
Remove
WARNING: The air suspension is
pressurised to 10 bar (150 lbf/in
2
) . Dirt or
grease must not enter the system. Wear
hand, ear and eye safety standard protection
when servicing system.
1. Depressurise system.
See this section.

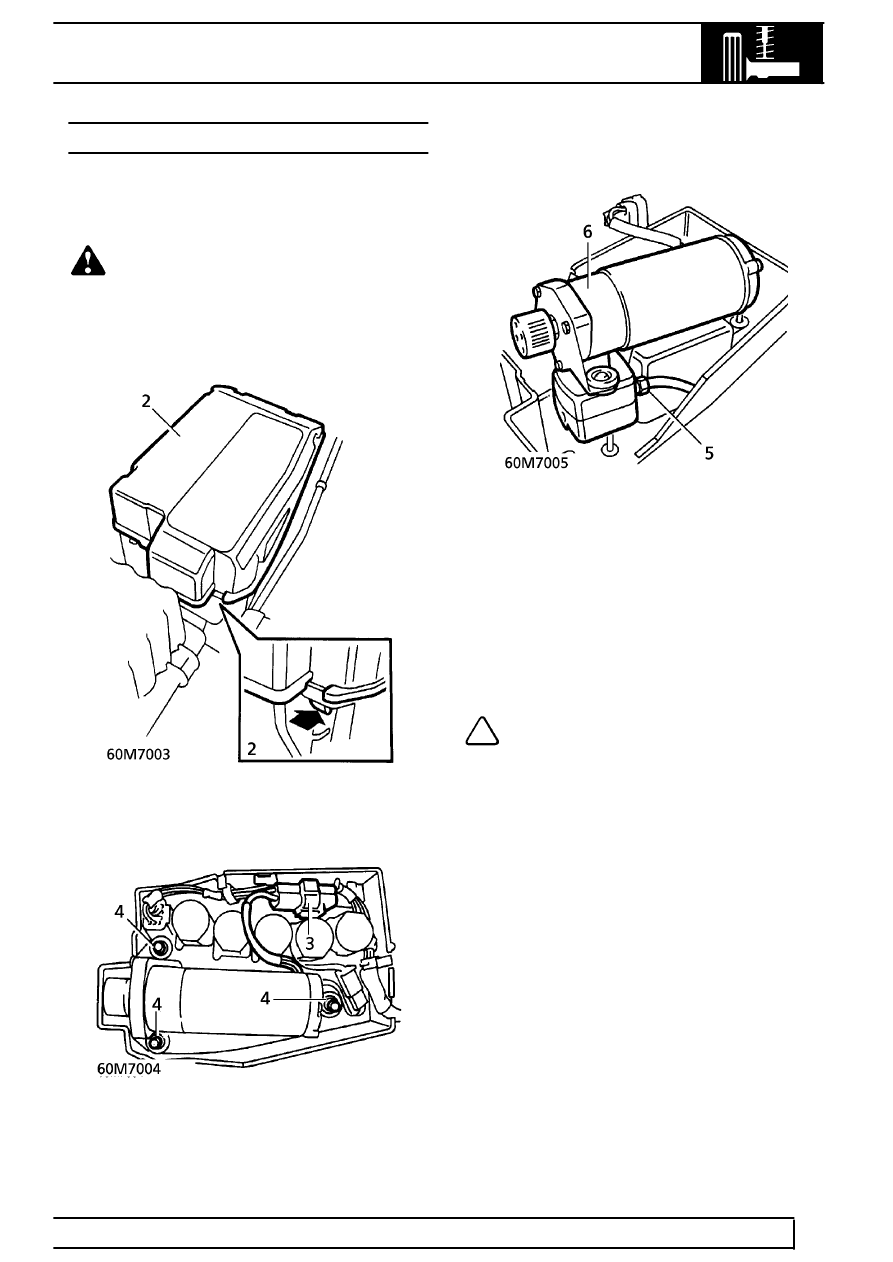

2. Remove cover from air supply unit.
3. Release compressor multiplug from casing and
disconnect plug.
4. Remove 3 nuts and dished washers securing
compressor. Note orientation of dished washers.
5. Remove compressor outlet pipe, seal exposed
ends.
6. Remove compressor.
Refit
7. Remove seals from air hose and compressor.
Connect air hose to compressor and tighten
union nut to
7 Nm. (5 lbf.ft)
8. Fit compressor ensuring correct orientation of
dished washers. Tighten fixings to
2 Nm.
(1.5 lbf.ft)
NOTE: Ensure compressor is mounted
centrally on mountings. Failure to align
mountings may result in excessive noise
and premature mounting rubber wear.
9. Connect compressor multiplug, secure to casing.
10. Leak test connection.
See this section.
11. Fit cover to air supply unit.
