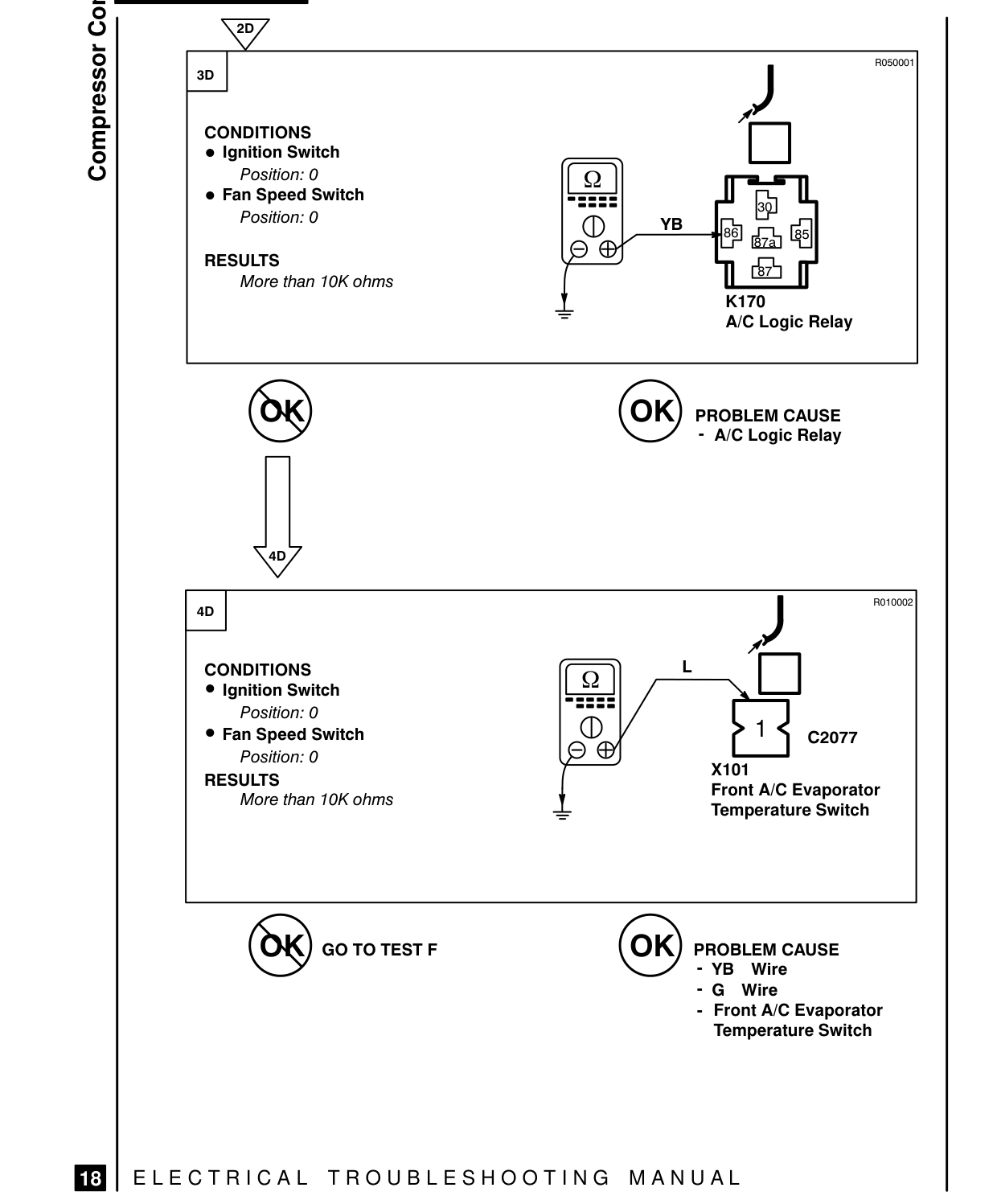

Compressor controls – fault diagnosis

COMPRESSOR CONTROLS – FAULT DIAGNOSIS

Cc G57 eo]

CONDITIONS ® Ignition Switch Position: 0 ® Fan Speed Switch Position: 0 RESULTS More than 10K ohms

(59)

CONDITIONS ® Ignition Switch Position: 0 ® Fan Speed Switch Position: 0 RESULTS ham 10K ohms

(59) GOTO TESTF

BB}| ELECTRICAL TROUBLESHOOTING MANUAL

R050001

CH | El YB AOR #8 fn Eh K170 A/C Logic Relay

PROBLEM CAUSE - A/C Logic Relay

R010002

LJ s=te== OD C2077 OD X101 Front A/C Evaporator Temperature Switch

PROBLEM CAUSE - YB Wire Wire - Front A/C Evaporator Temperature Switch
