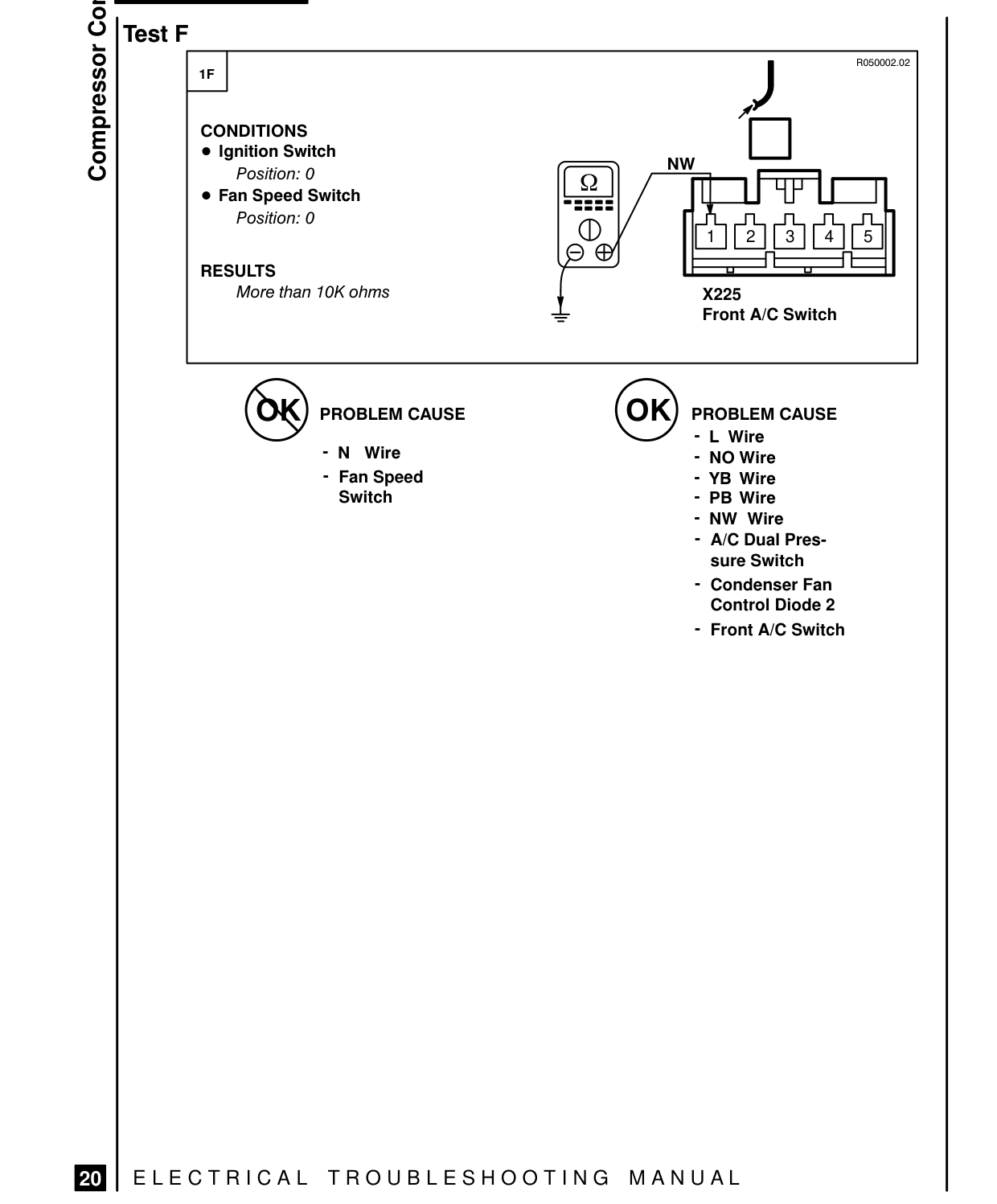

COMPRESSOR CONTROLS – FAULT DIAGNOSIS

Cc

O | Test F ir | 1F

CONDITIONS oO ® Ignition Switch oO Position: 0 e Fan Speed Switch Position: 0 RESULTS More than 10K ohms

(5) PROBLEM CAUSE Wire - Fan Speed Switch

ELECTRICAL TROUBLESHOOTING MANUAL

R050002.02

NW ARE re DO o- 4’45 ACA X225 Front A/C Switch

PROBLEM CAUSE - L Wire - NO Wire - YB Wire - PB Wire - NW Wire - A/C Dual Pressure Switch

- Condenser Fan Control Diode 2

Front A/C Switch
