Compressor controls – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover Classic Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Fault diagnosis › Compressor controls – fault diagnosis
Compressor controlsCompressor controls – fault diagnosis

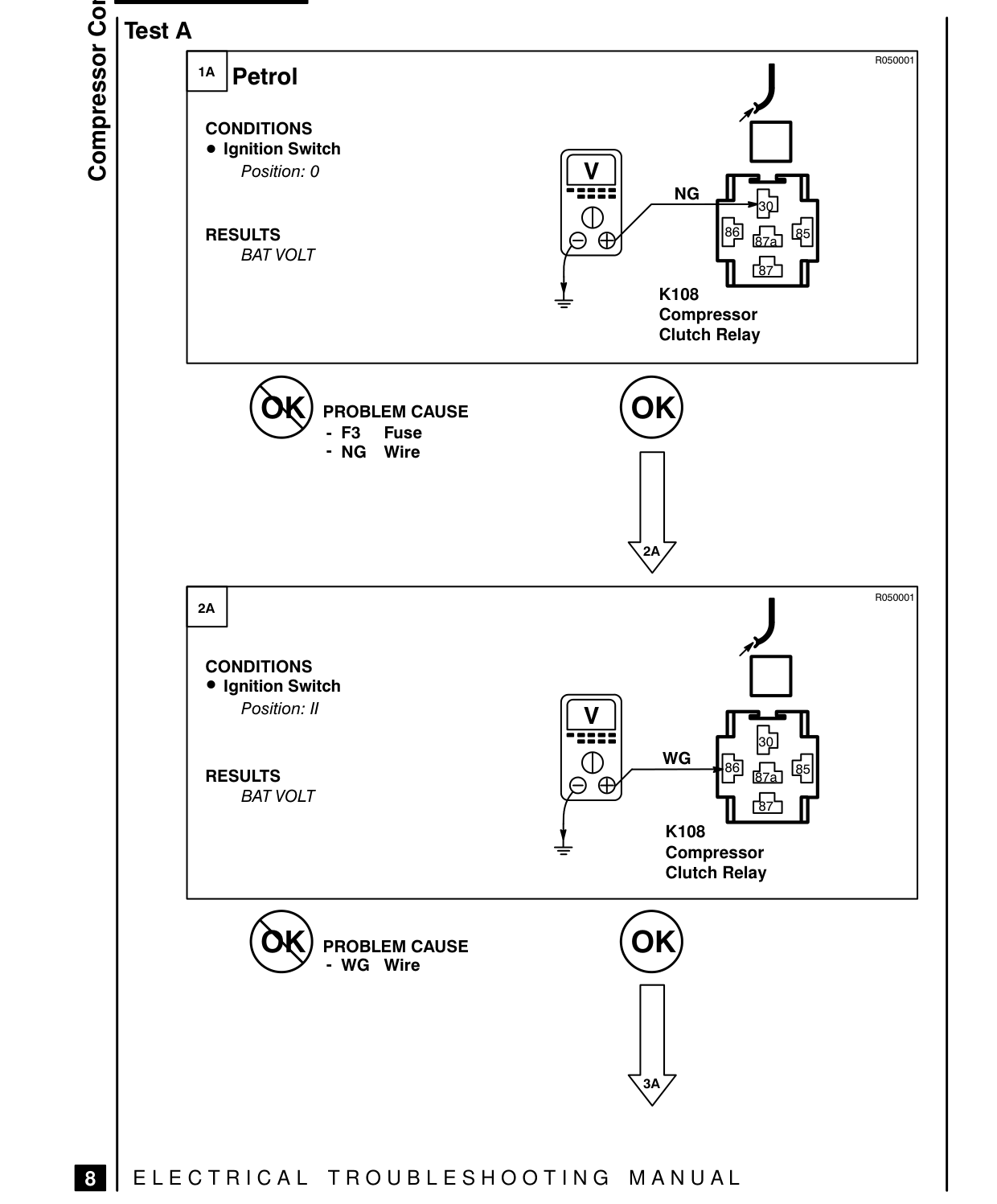

COMPRESSOR CONTROLS – FAULT DIAGNOSIS
lo] O [Test A Sm Petrol po CONDITIONS ® Ignition Switch Position: 0 ESULTS BAT VOLT
(5) PROBLEM CAUSE - F3 Fuse - NG Wire
® Ignition Switch CONDITIONS
Position: II
RESULTS BAT VOLT
(5) PROBLEM CAUSE - WG Wire
EJ | ELECTRICAL TROUBLESHOOTING MANUAL
RO50001
NG DB
K108 Compressor Clutch Relay
R050001
wa [o OF
K108 Compressor Clutch Relay
