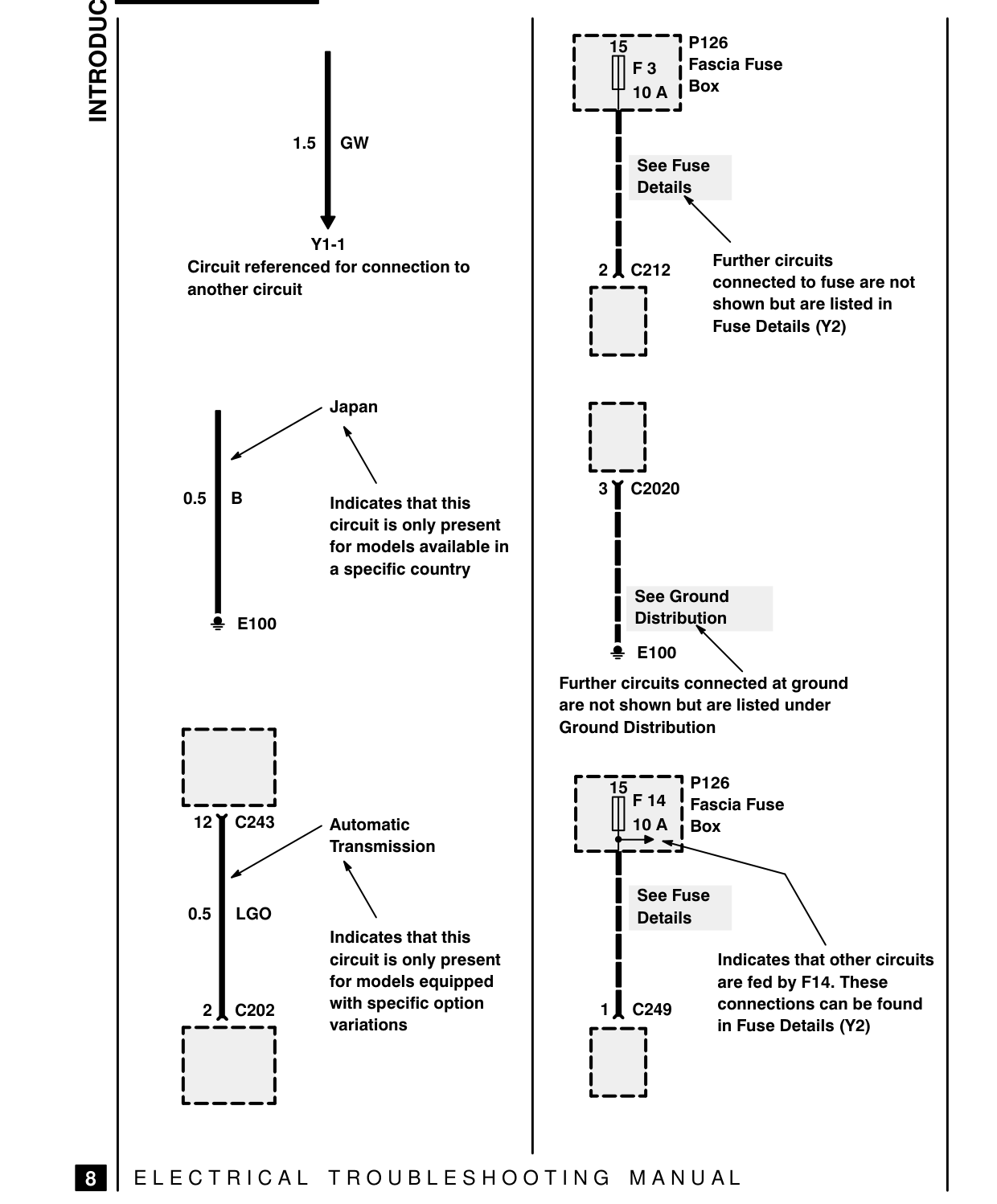

Introduction – circuit diagram

INTRODUCTION – CIRCUIT DIAGRAM

1.5 | GW

Y1-1 Circuit referenced for connection to another circuit

Japan Indicates that this 05] circuit is only present for models available in a specific country 2 E100

12] C243 Automatic _ Transmission 0.5 | LGO Indicates that this

circuit is only present for models equipped 2 1 c202 with specific option variations

EJ| ELECTRICAL TROUBLESHOOTING MANUAL

| 15 P126 F3 | Fascia Fuse 10 A | Box [Hp

See Fuse Details

2 | C212 ruriher cirautts rF——connected to fuse are no shown but are listed in Fuse Details (Y2) tem d

ro Lo 3Y C2020

I See Ground I Distribution 2 E100 AN Further circuits connected at ground are not shown but are listed under Ground Distribution

r=35 P12 F114 I Fascia Fuse 10A | Box Le | See Fuse Details

Indicates that other circuits are fed by F14. These 1 1 C249 connections can be found r——a in Fuse Details (Y2)
