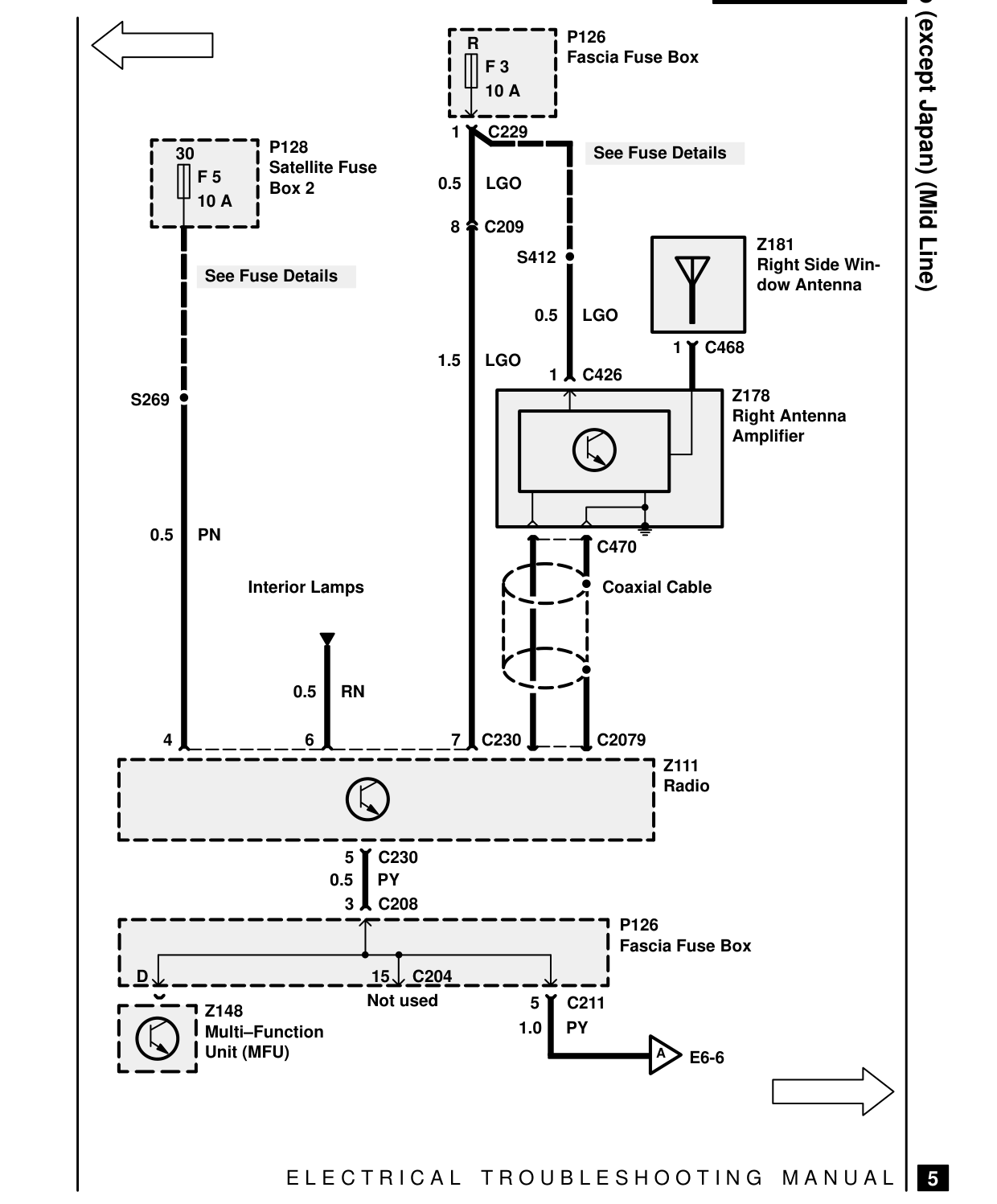

Radio (except Japan) – circuit diagram

RADIO (EXCEPT JAPAN) – CIRCUIT DIAGRAM

R

1 P128 30 Satellite Fuse F 5 0.5 Box 2 10 A 8

See Fuse Details

1.5

S269

0.5 PN

Interior Lamps

0.5 RN

4 6 7

5 C230 0.5 PY 3 C208

D 15 C204 Not used Z148 Multi-Function Unit (MFU)

E L E C T R I C A L

Radio (except Japan) (Mid Line) P126 Fascia Fuse Box F 3 10 A

C229 See Fuse Details LGO

C209 Z181 S412 Right Side Win- dow Antenna 0.5 LGO 1 C468 LGO 1 C426 Z178 Right Antenna Amplifier

C470

Coaxial Cable

C230 C2079 Z111 Radio

P126 Fascia Fuse Box

5 C211 1.0 PY A E6-6
