Radio (except Japan) – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Radio (except Japan) – circuit diagram

Radio (EXCEPT Japan)Radio (except Japan) – circuit diagram

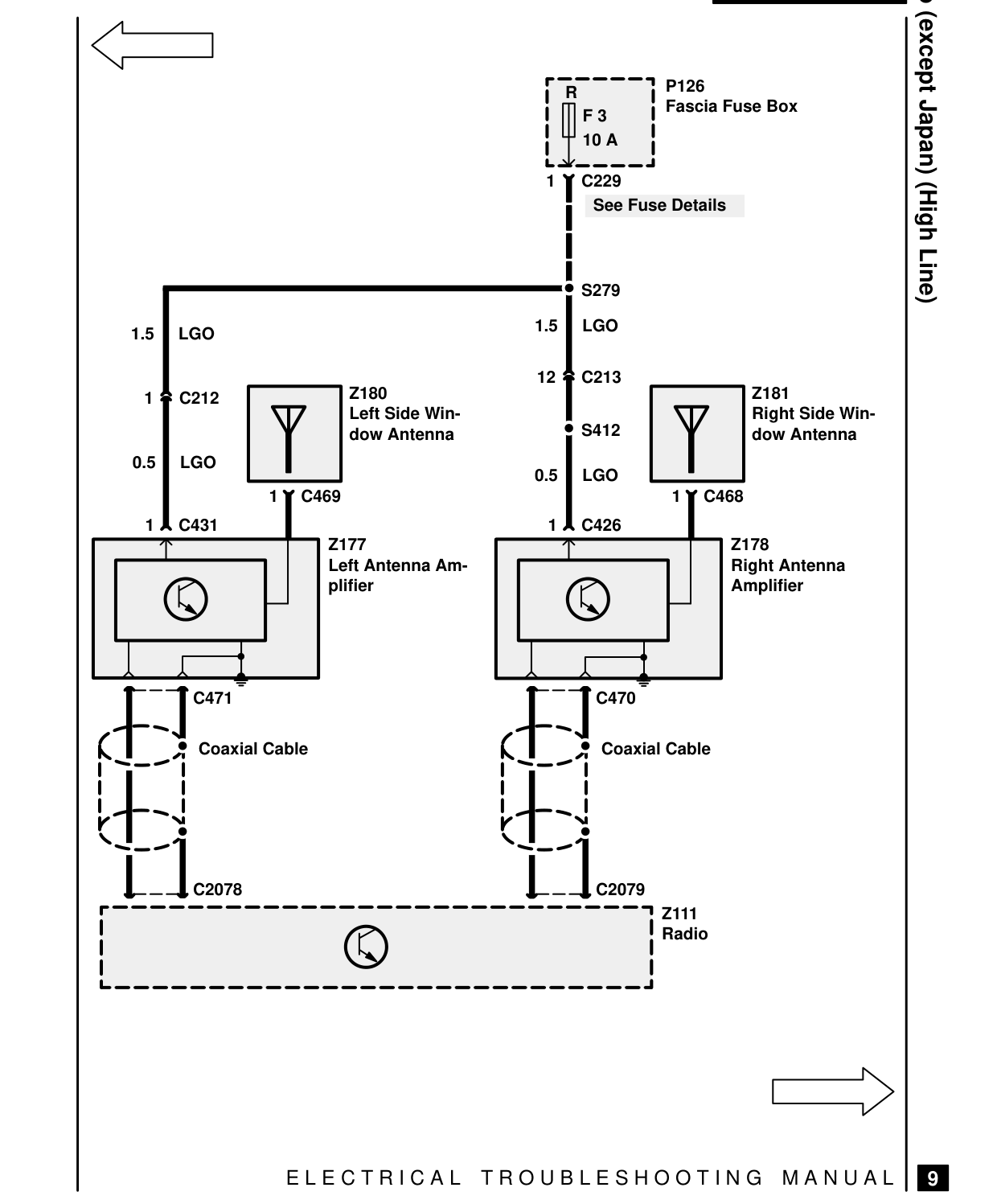

RADIO (EXCEPT JAPAN) – CIRCUIT DIAGRAM

1.5 LGO

Z180 1 C212 Left Side Win- dow Antenna 0.5 LGO

1 C469 1 C431 Z177 Left Antenna Am- plifier

C471

Coaxial Cable

C2078

E L E C T R I C A L

Radio (except Japan) (High Line) P126 R Fascia Fuse Box F 3 10 A

1 C229 See Fuse Details

S279

1.5 LGO

12 C213 Z181 Right Side Win- S412 dow Antenna

0.5 LGO 1 C468 1 C426 Z178 Right Antenna Amplifier

C470

Coaxial Cable

C2079 Z111 Radio

T R O U B L E S H O O T I N G M A N U A L

9

13 Electrical
