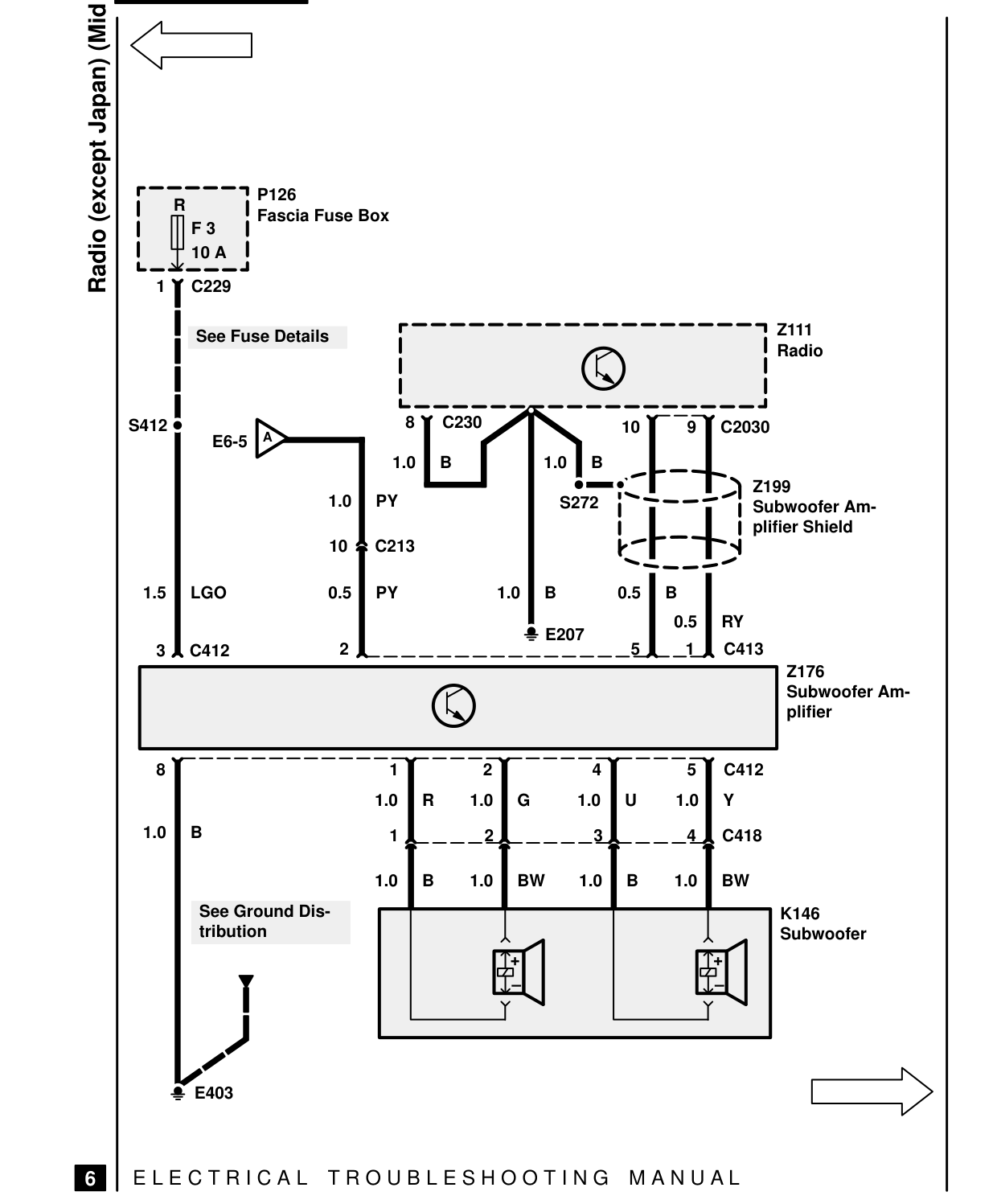

Radio (except Japan) – circuit diagram

RADIO (EXCEPT JAPAN) – CIRCUIT DIAGRAM

Radio (except Japan) (Mid Line) P126 R Fascia Fuse Box F 3 10 A

1 C229

See Fuse Details

8 C230 S412 A E6-5 1.0 B

1.0 PY

10 C213

1.5 LGO 0.5 PY

2 3 C412

8 1 1.0 R 1.0 B 1

1.0 B See Ground Dis- tribution

E403

E L E C T R I C A L T R O U B L E S H O O T I N G

6

Z111 Radio

10 9 C2030

1.0 B Z199 S272 Subwoofer Am- plifier Shield

1.0 B 0.5 B 0.5 RY E207 5 1 C413 Z176 Subwoofer Am- plifier

2 4 5 C412 1.0 G 1.0 U 1.0 Y

2 3 4 C418

1.0 BW 1.0 B 1.0 BW K146 Subwoofer + + - -
